Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

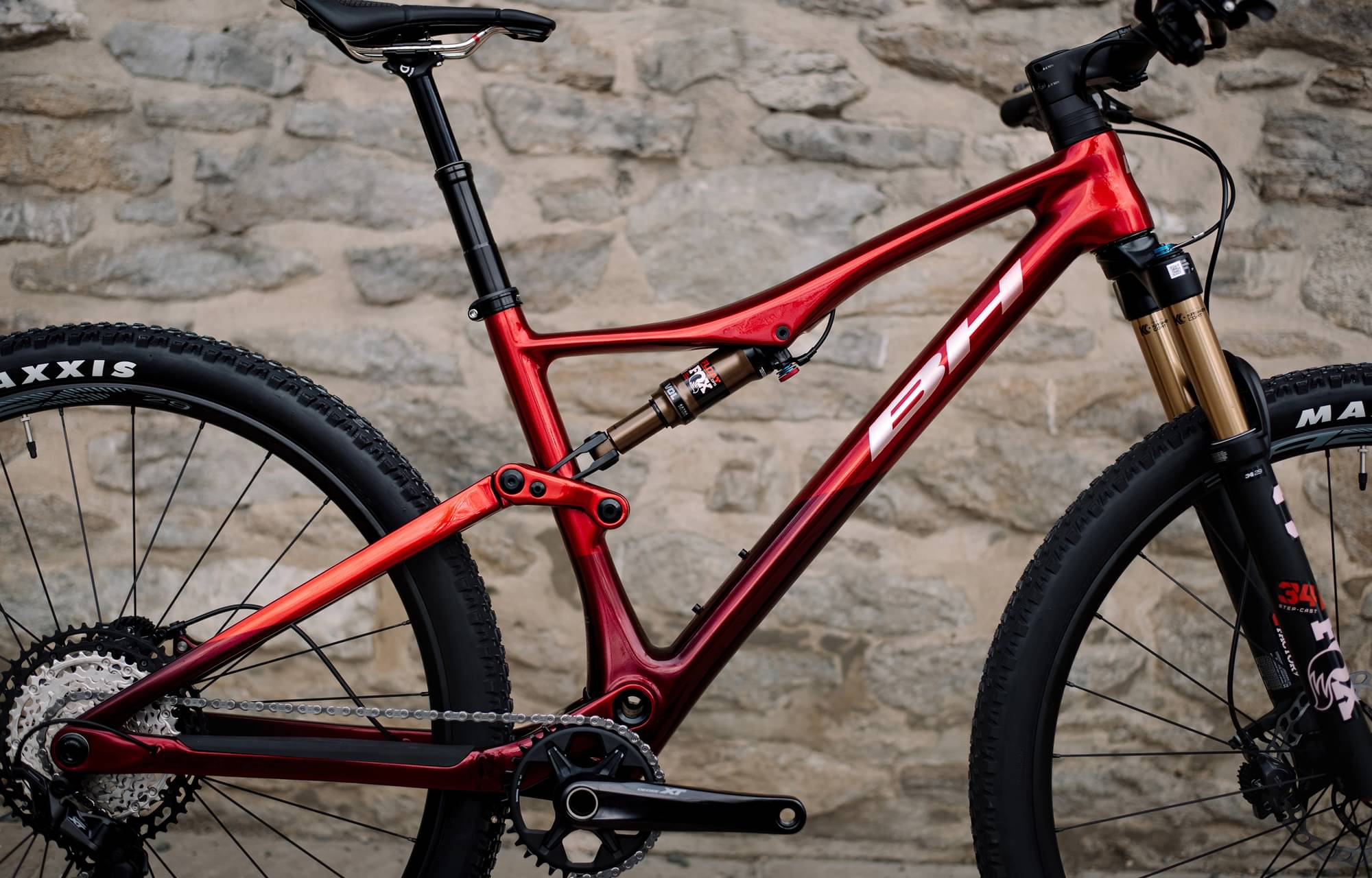

Frame
Frame
Lynx Race Carbon, PC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork
Fox 34SC Performance Push to Lock kabolt 120mm

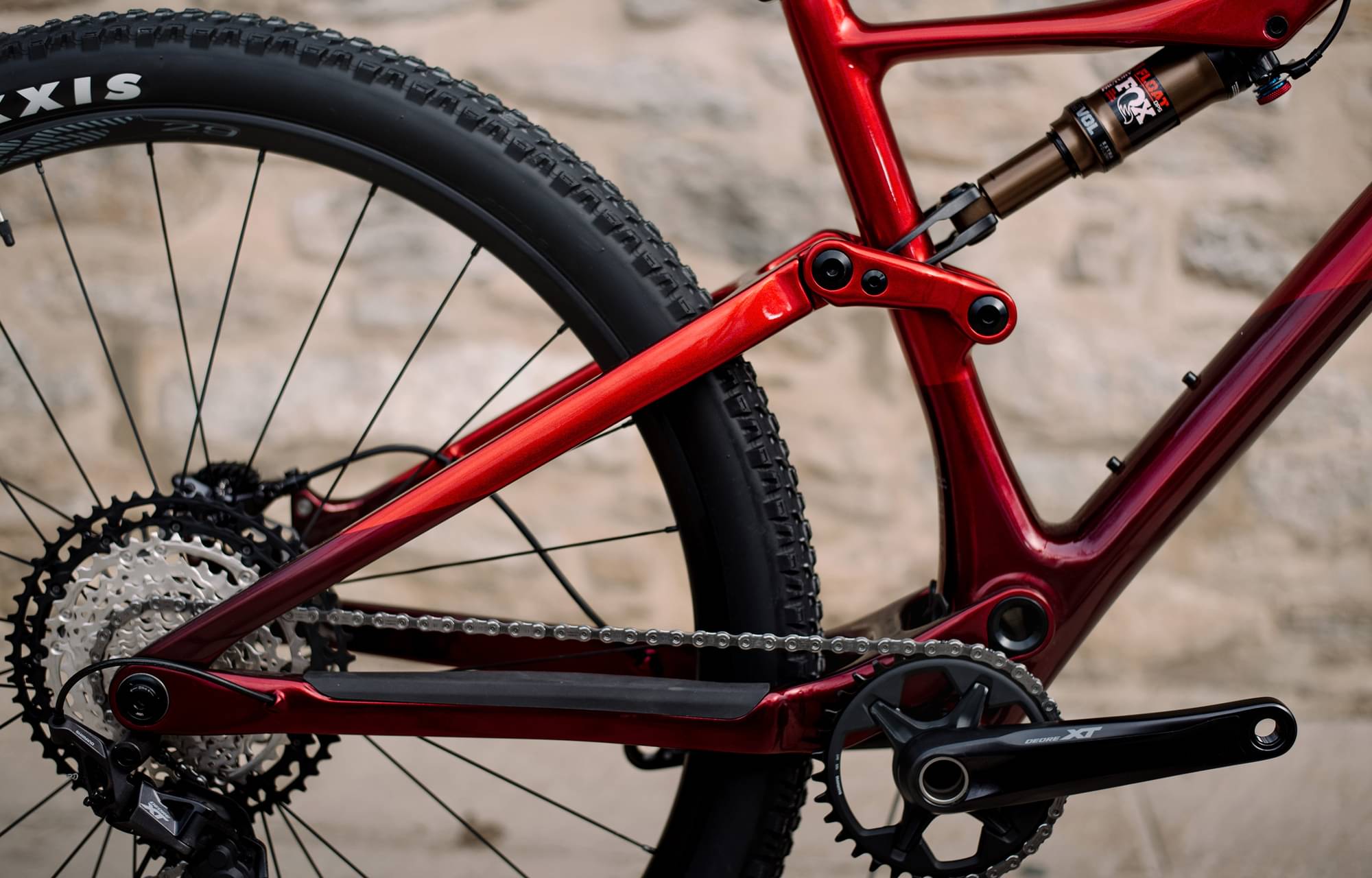

Rear Shock
Fox DPS Evol Performance, 190x45mm,DCM,DRM,CMF
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Rims
BH Evo Alloy Tubeless, 25mm, 28H
Tires
Maxxis Ardent EXO 2.25
Brakes

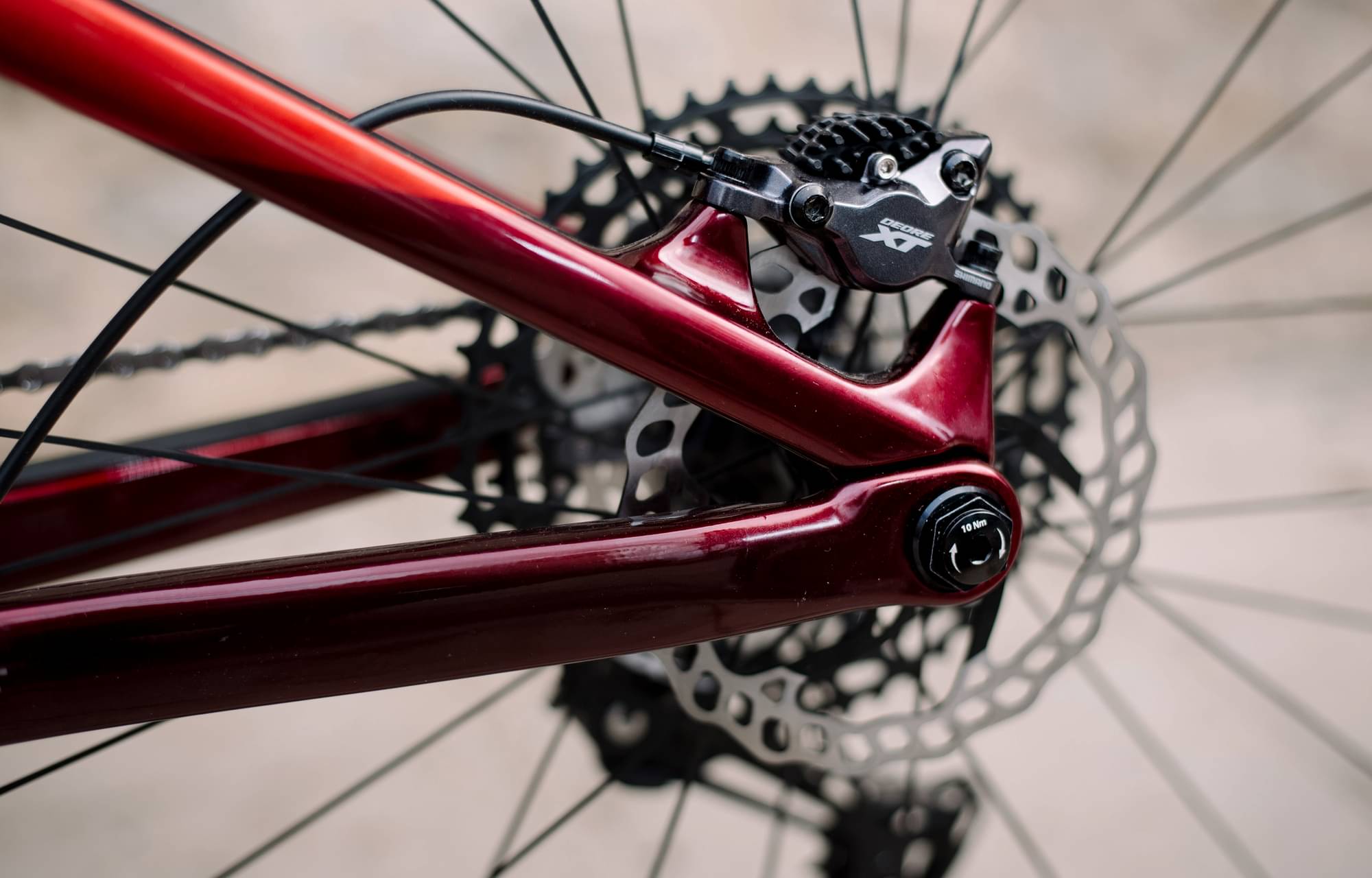

Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 180mm
Cockpit

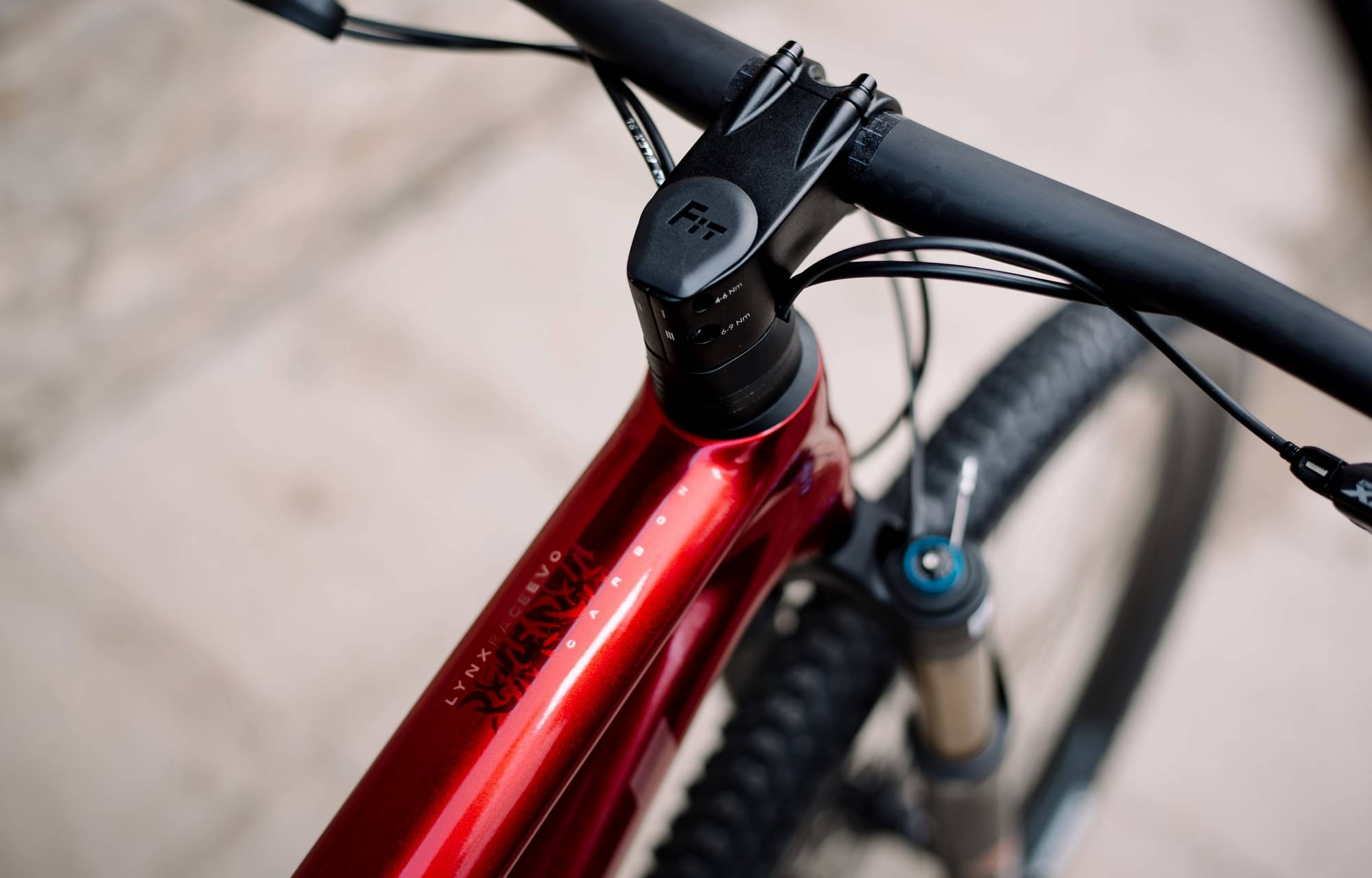

Stem
BH FIT 60mm, 31,8mm, -6
Handlebar
BH SL Top Flat 780mm, 10mm Rise
Grips
BH SL Lock On
Headset
Acros ICR FIT 36/45, Block Lock 160
Seat
Saddle
Prologo Scratch M5
Seatpost
Bike Yoke Divine SL 31,6mm, 400mm, 80mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 673 mm | 708 mm | 729 mm | 745 mm |
| Top Tube Length | 565 mm | 574 mm | 599 mm | 619 mm |
| Seat Tube Angle | 75 ° | 74.8 ° | 74.8 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1101 mm | 1136 mm | 1156 mm | 1173 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
LYNX RACE LT 7.5 is part of the Bh Lynx model. There are 77 bikes that carry this model name. Take a sneak peek at all Bh Lynx bikes models from 2023, by clicking here.
Model range prices
BH LYNX RACE CARBON MC 3.0 2023 is the most economical model, with a starting price of 3040$. BH LYNX RACE LT 9.9 2023 on the other hand costs 12163$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When BH released this model in 2023, its price was 6446$. If we compare this with the average Trail bike cost we notice that the price is 133.38% more expensive.
LYNX RACE LT 7.5 components

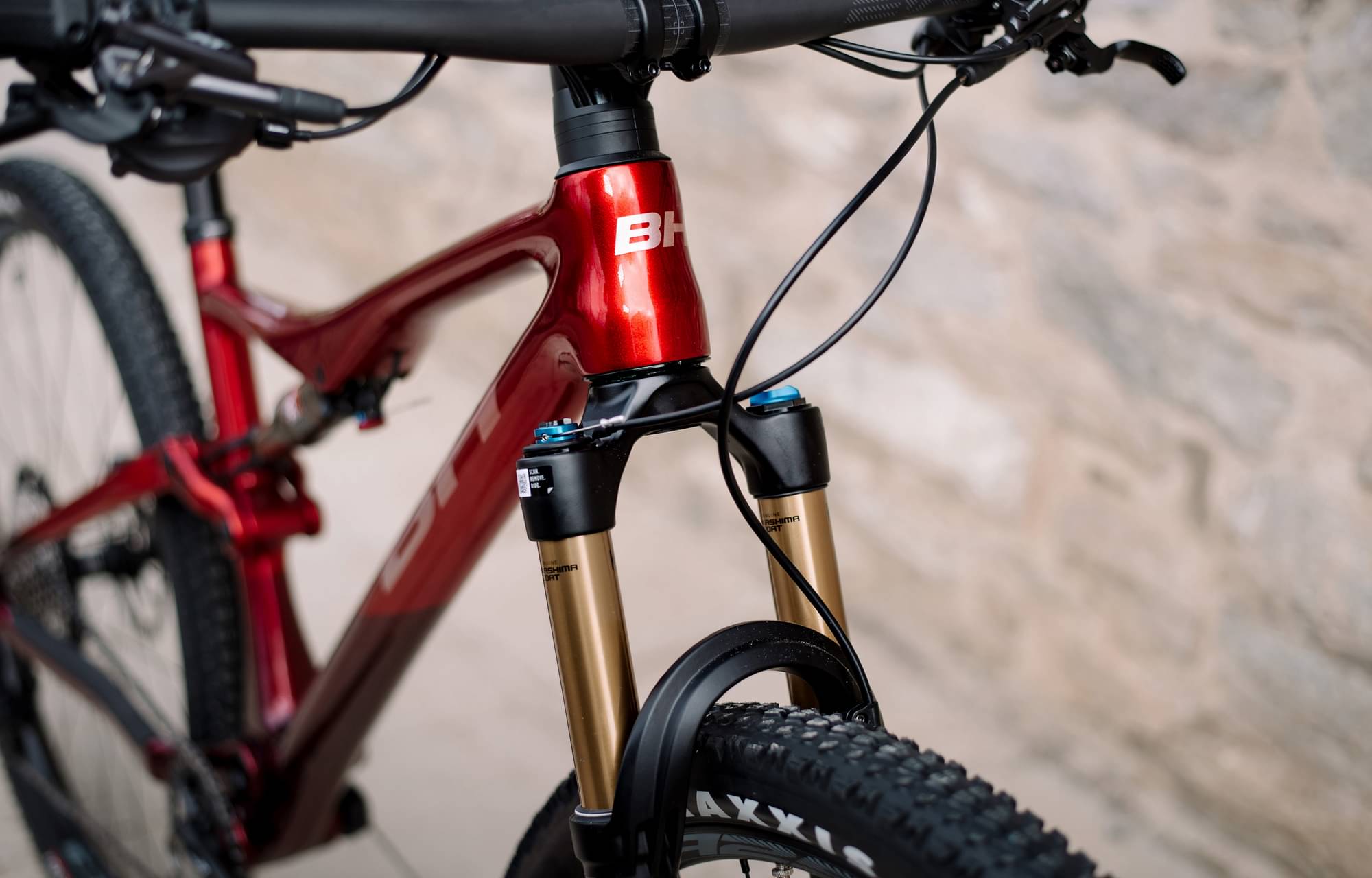

Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The LYNX RACE LT 7.5 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
LYNX RACE LT 7.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
BH LYNX RACE LT 7.5 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
