Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast (SC) Performance, remote lockout
Rear Shock
FOX FLOAT DPS Performance, EVOL air can, remote lockout
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, 175mm length
Bottom Bracket
Shimano, 92mm PressFit
Chain
Shimano Deore XT, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH Evo wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH Evo wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH Evo wheelset, alloy, 25mm width, 28 hole, tubeless
Spokes
BH Evo wheelset
Tires
Front: Maxxis Ardent Race, 3C MaxxSpeed, EXO, 29" x 2.2", Rear: Maxxis Ikon, 3C MaxxSpeed, EXO, 29" x 2.2"
Brakes
Brakes
Shimano Deore XT, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano Deore XT
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH SL Midflat, 780mm width, 31.8mm clamp diameter, 10mm rise, 6° backsweep
Grips
BH, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
Prologo Nago RS
Seatpost
BH SL, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 674 mm | 702 mm | 727 mm | 750 mm |
| Rake | 56 mm | 56 mm | 56 mm | 55 mm |
| Trail | 87 mm | 87 mm | 87 mm | 88 mm |
| Stack | 578 mm | 587 mm | 601 mm | 615 mm |
| Reach | 391 mm | 416 mm | 435 mm | 453 mm |
| Top Tube Length | 564 mm | 592 mm | 615 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1089 mm | 1117 mm | 1142 mm | 1165 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

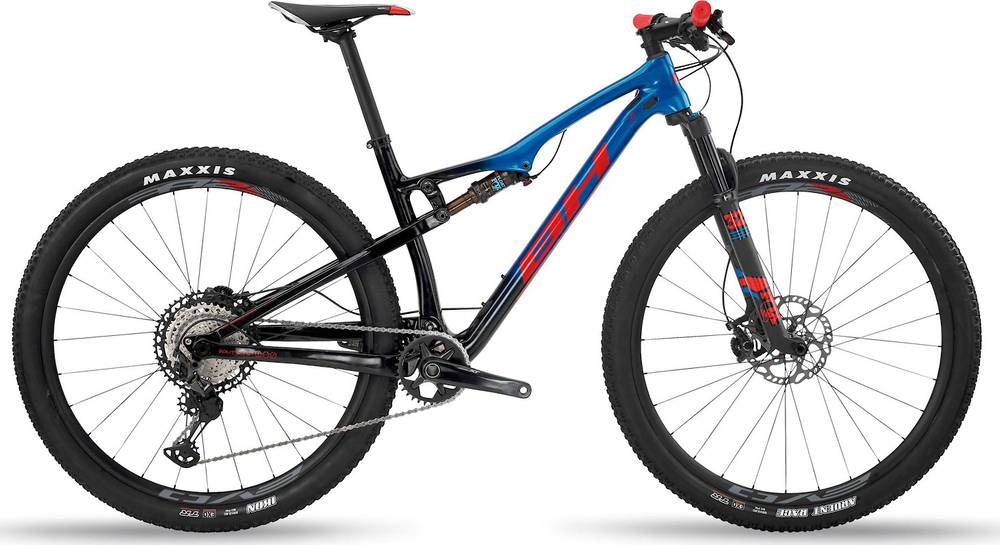

Lynx Race RC Carbon 7.0 is part of the Bh Lynx model. 77 bikes variations carry this model name so far. You can easily view all of the Bh Lynx bikes models from 2020, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Lynx Race RC Carbon 7.0 components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT DPS Performance model, with a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Lynx Race RC Carbon 7.0 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
