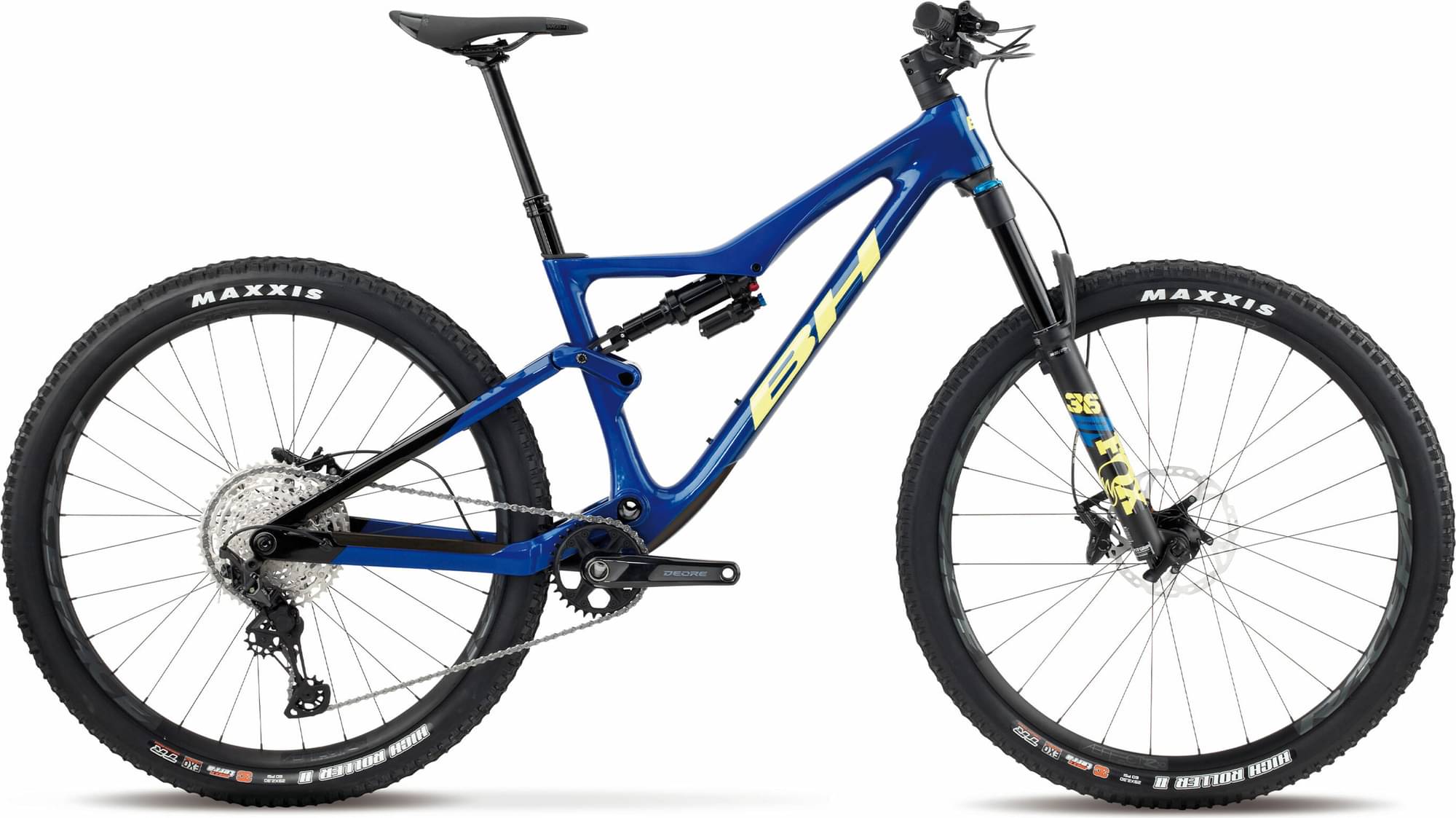

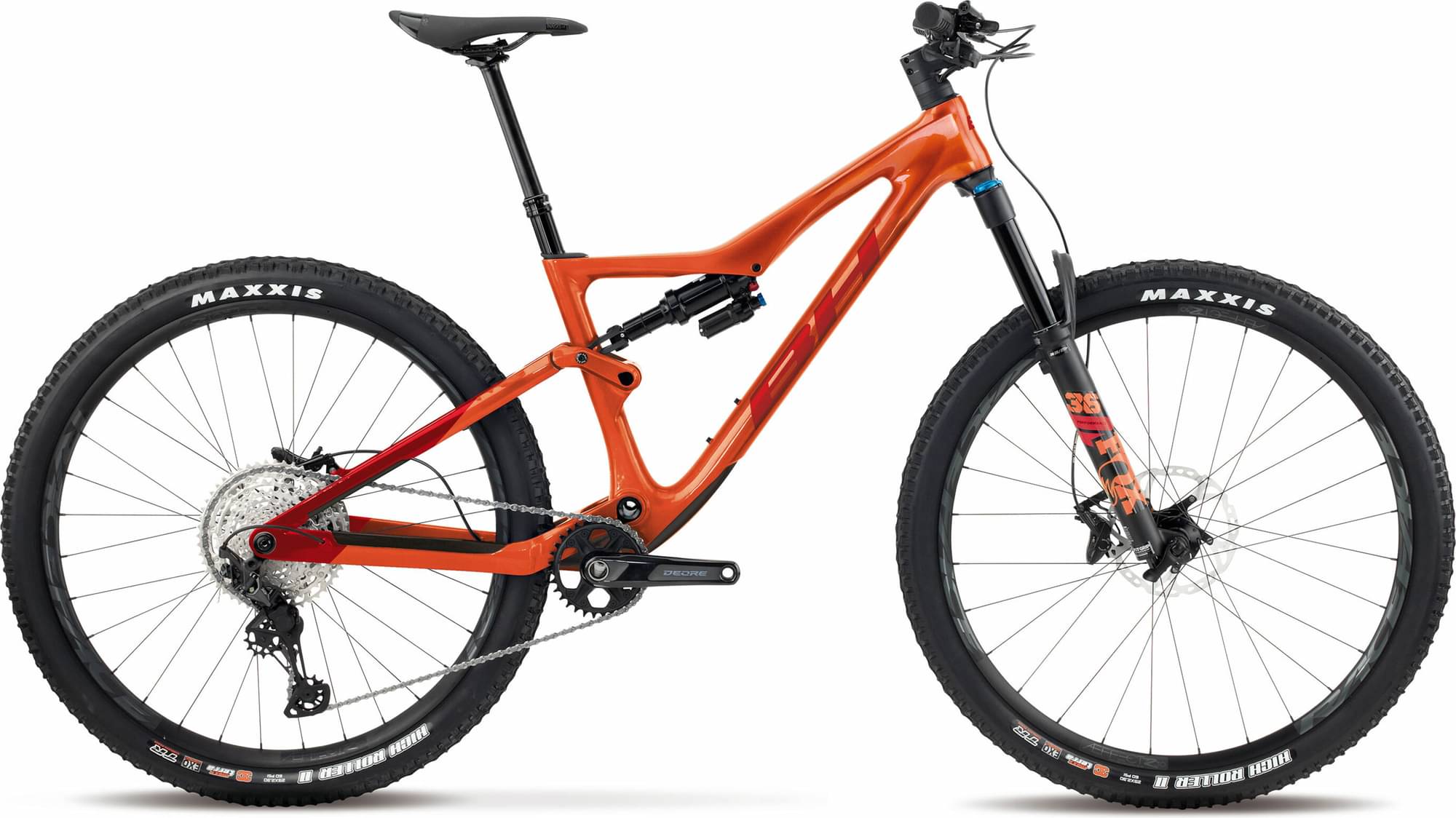

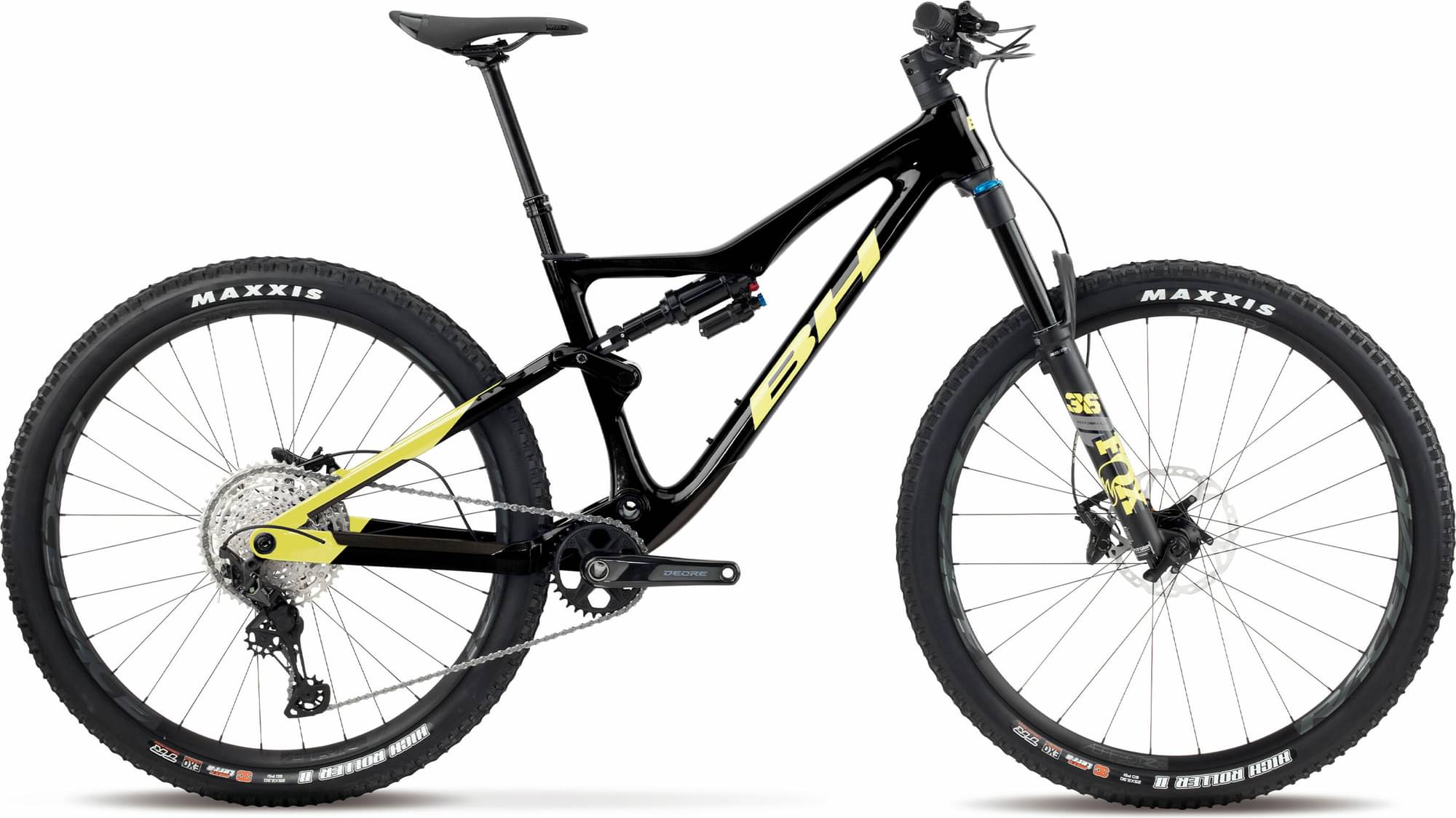

BH LYNX TRAIL CARBON 9.0 2022
2022 Mountain
Estimate price |
6,367$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Trail Carbon 150mm, BC Layup, ISCG 0.5 Lite, UDH Hanger
Suspension Fork
Fox 36 Performance Grip Kabolt 150mm Sweep Adjust
Rear Shock
Fox X2 Evol LV, Performance, 190x40, CM,RM,LM 40x8 Aircan
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano Deore 6100 12sp
Cassette
Shimano Deore 6100 10/51
Crank
Shimaano Deore 6130 SuperBoost, 32, 170mm
Bottom Bracket
Shimano
Chain
Shimano Deore
Wheels
Rims
Race Face Aeffect 30mm, SuperBoost
Tires
Maxxis High Roller EXO, 3C, 2.35
Brakes
Brakes
Front: Shimano MT520 4 Pistons 180mm, Rear: Shimano MT520 4 Pistons 180mm
Cockpit
Stem
BH TRAIL 45mm, 35mm, 0º
Handlebar
BH Trail Carbon, 800mm, 10mm Rise, 9º Back Sweep
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Scratch X8
Seatpost
Race Face Aeffect 31,6mm, 425mm, 150mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 713 mm | 736 mm | 760 mm | 781 mm |
| Rake | 11 mm | 9 mm | 9 mm | 8 mm |
| Trail | 162 mm | 165 mm | 165 mm | 166 mm |
| Stack | 616 mm | 617 mm | 626 mm | 641 mm |
| Reach | 437 mm | 462 mm | 482 mm | 497 mm |
| Top Tube Length | 563 mm | 589 mm | 612 mm | 632 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1153 mm | 1176 mm | 1200 mm | 1221 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
LYNX TRAIL CARBON 9.0 completes the Bh Lynx model. BH released 77 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the BH LYNX RACE CARBON MC 3.0 2022 has a starting price of 3040$. BH LYNX RACE EVO CARBON 9.9 2022 on the other hand is the most expensive at 11068$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 5716$. Comparing this to the average Enduro bike price, we see that the price is 58.82% higher.
LYNX TRAIL CARBON 9.0 components
Fork
This bike has the Fox Performance Float 36 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox X2 Evol LV, with a travel distance of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on LYNX TRAIL CARBON 9.0 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
LYNX TRAIL CARBON 9.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The BH model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
