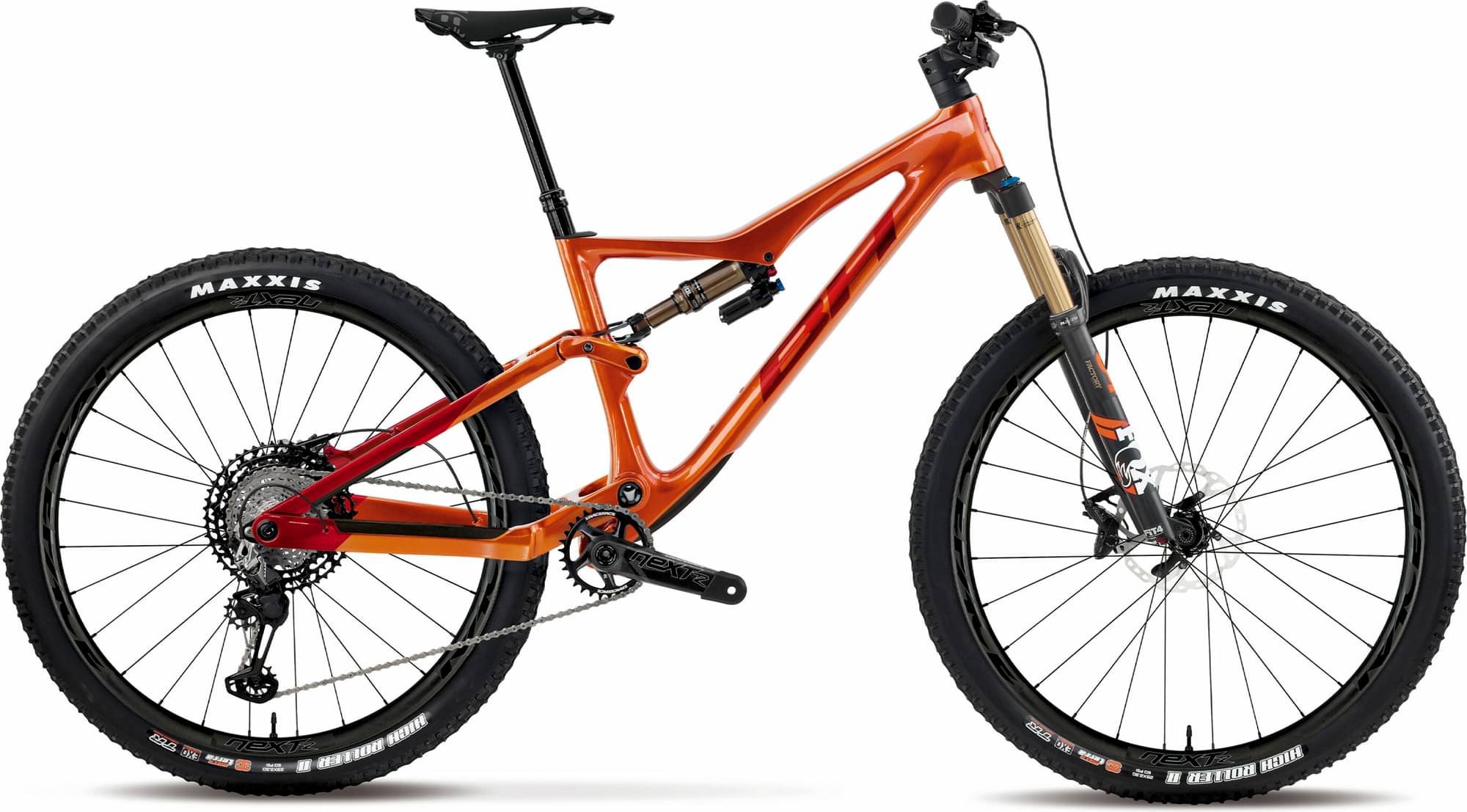

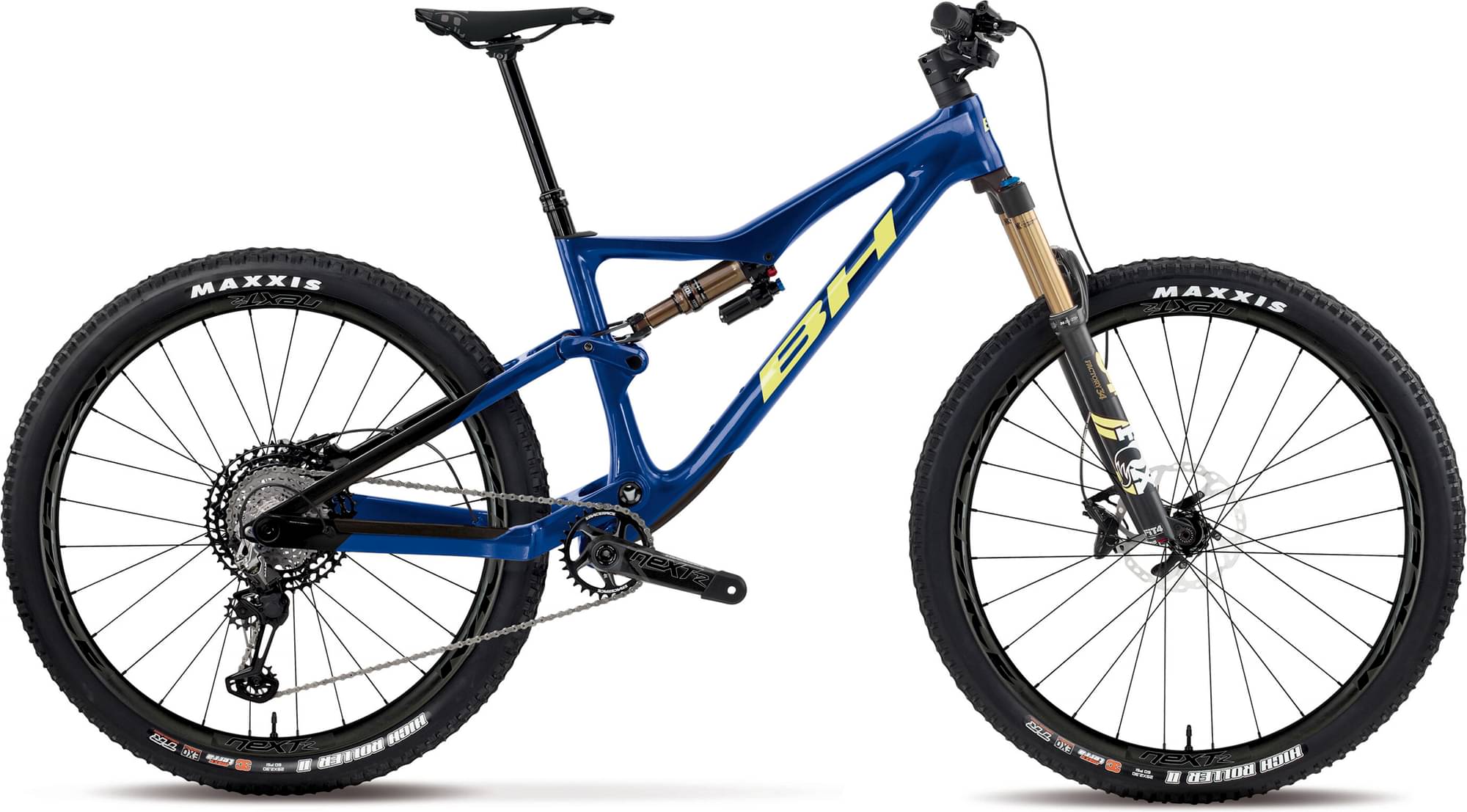

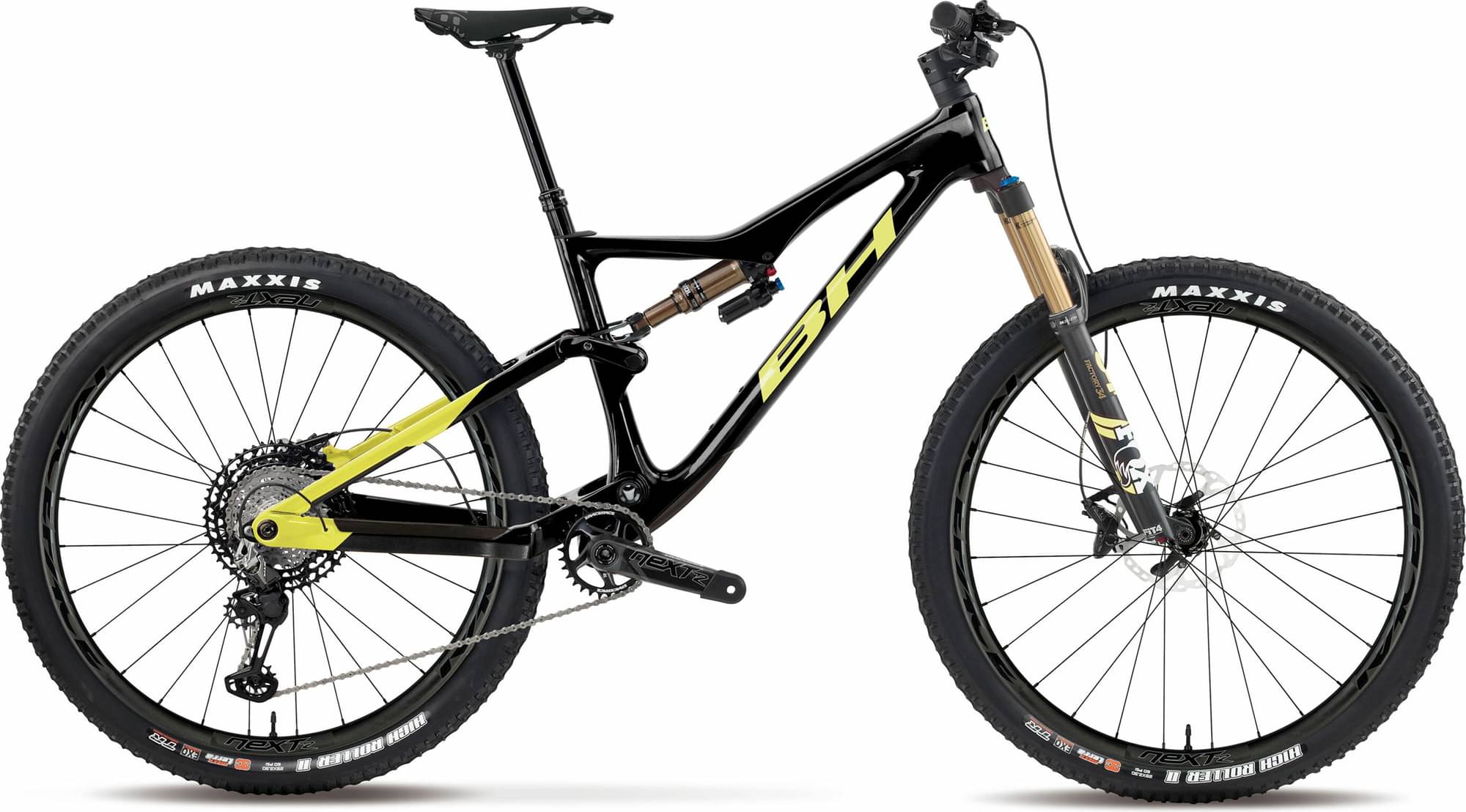

BH LYNX TRAIL CARBON 9.9 2023
2023 Mountain
Estimate price |
10,839$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Trail Carbon 150mm, BC Layup, ISCG 0.5 Lite, UDH Hanger
Suspension Fork
Fox 36 Factory Grip 2 HSC, LSC, HSR, LSR Kabolt 150mm
Rear Shock
Fox X2 Evol LV, Factory, 190x40mm, CM,RM,LM 40x8mm Aircan
Drivetrain
Rear Derailleur
Shimano XTR 9100 12sp
Shift Levers
Shimano XTR 9100 12sp
Cassette
Shimano XTR 9100 10/51
Crank
Race Face Next R SupeBoost, 30, 170mm, X, Crank set, Race Face Next R SupeBoost, 30, 170mm
Bottom Bracket
Shimano
Chain
Shimano XTR
Wheels
Rims
Race Face Next R Carbon, 31mm, SuperBoost
Tires
Maxxis High Roller EXO, 3C, 2.35
Brakes
Brakes
Front: Shimano XTR Enduro 180mm, Rear: Shimano XTR Enduro 180mm
Cockpit
Stem
BH TRAIL 45mm, 35mm, 0º, X, Stem, BH TRAIL 45mm, 35mm, 0º
Handlebar
BH Trail Carbon, 800mm, 10mm Rise, 9º Back Sweep, X, Handlebar, BH Trail Carbon, 800mm, 10mm Rise, 9º Back Sweep
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Scratch X8
Seatpost
Bike Yoke Revive 31,6mm, 400mm, 160mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 713 mm | 736 mm | 760 mm | 781 mm |
| Rake | 11 mm | 9 mm | 9 mm | 8 mm |
| Trail | 162 mm | 165 mm | 165 mm | 166 mm |
| Stack | 616 mm | 617 mm | 626 mm | 641 mm |
| Reach | 437 mm | 462 mm | 482 mm | 497 mm |
| Top Tube Length | 563 mm | 589 mm | 612 mm | 632 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1153 mm | 1176 mm | 1200 mm | 1221 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
LYNX TRAIL CARBON 9.9 belongs to the Bh Lynx model. 77 bikes variations carry this model name so far. Take a sneak peek at all Bh Lynx bikes models from 2023, by clicking here.
Model range prices
The most economical model, the BH LYNX RACE CARBON MC 3.0 2023 has a starting price of 3040$. BH LYNX RACE LT 9.9 2023 on the other hand is the most expensive at 12163$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, BH LYNX TRAIL CARBON 9.9 price was 9852$. Comparing this to the average Enduro bike price, we see that the price is 173.74% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox X2 Evol LV rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The LYNX TRAIL CARBON 9.9 2023 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH LYNX TRAIL CARBON 9.9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
BH LYNX TRAIL CARBON 9.9 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
