Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultimate Carbon, EC Layup, Acros ICR, PF92BB, 148x12,UDH
Suspension Fork
Fox 34SC Factory Push to Lock Kabolt 100mm

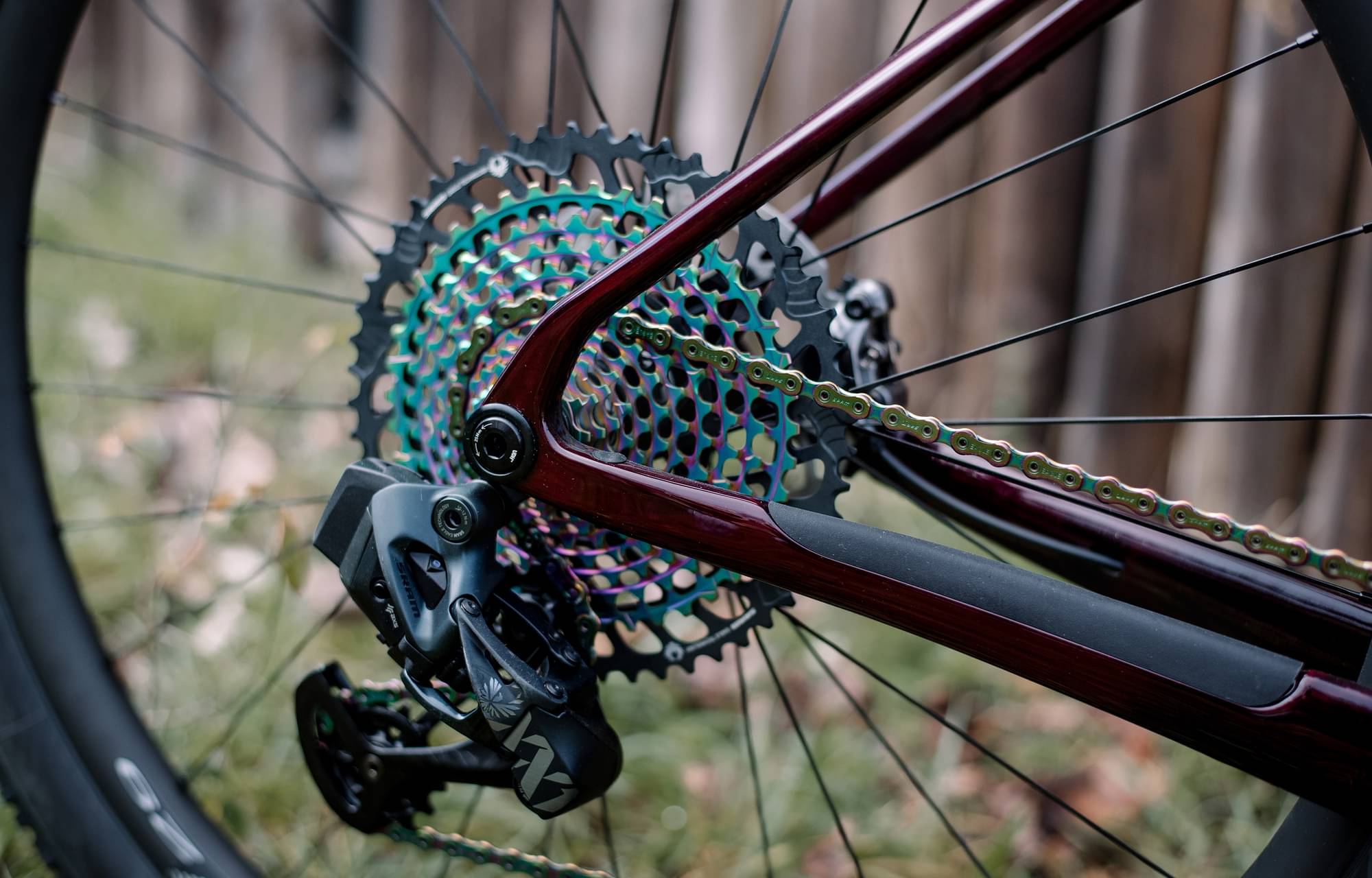

Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Front Hub
Shimano MT400/410
Rear Hub
Shimano MT400/410
Rims
Race Face Aeffect TLR, 27mm, 32H
Spokes
Inox 2.0
Tires
Maxxis Ardent EXO 2.25 / Maxxis Ikon EXO 2.25
Brakes
Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 180mm
Cockpit

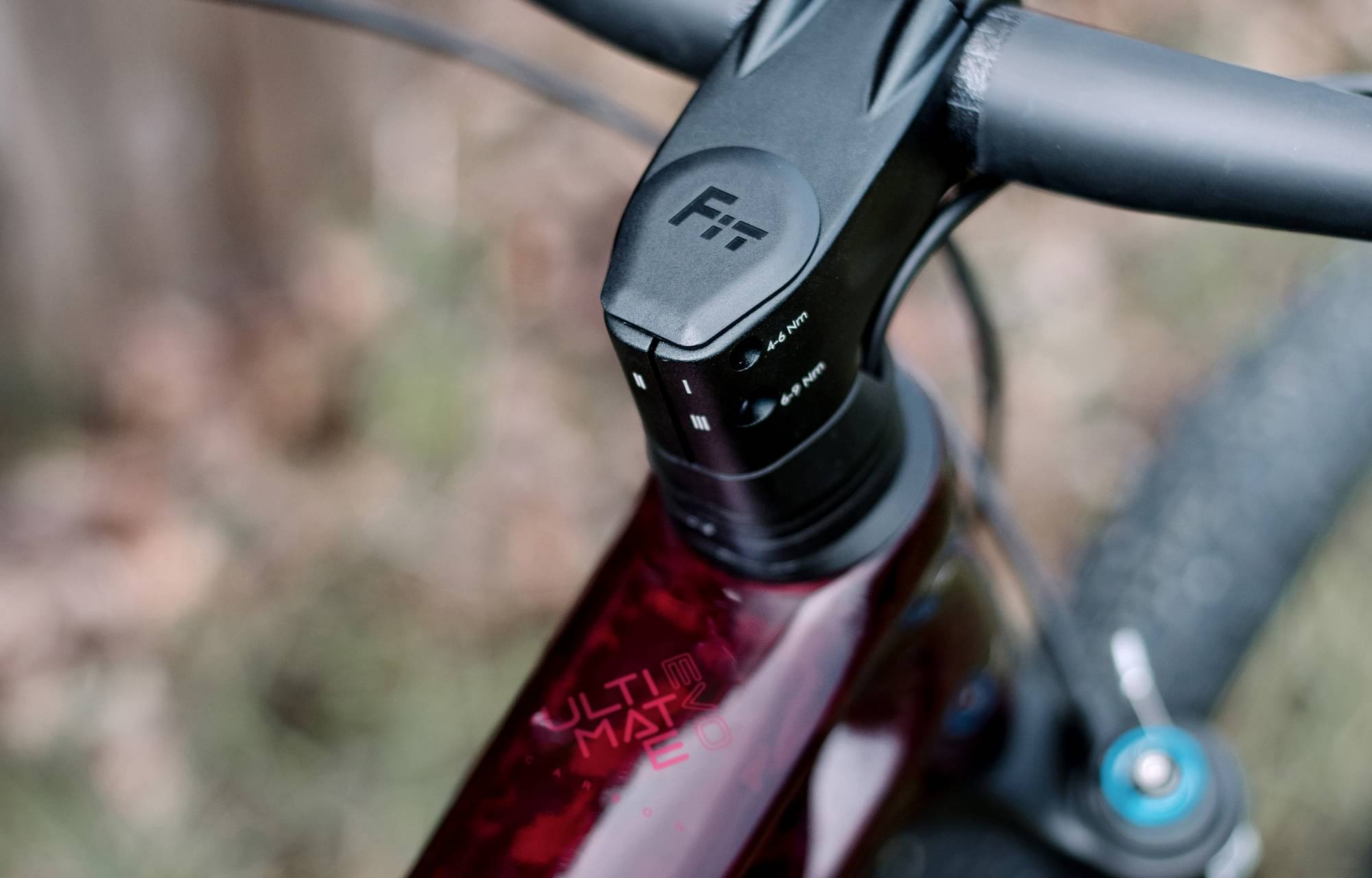

Stem
BH FIT 60mm, 31,8mm, -6
Handlebar
BH SL Top Flat 780mm, 10mm Rise
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45, Block Lock 160
Seat
Saddle
Prologo Scratch M5
Seatpost
BH SL 31,6mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 681 mm | 707 mm | 733 mm | 753 mm |
| Top Tube Length | 580 mm | 605 mm | 628 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1090 mm | 1116 mm | 1142 mm | 1162 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ULTIMATE 8.5 is part of the Bh Ultimate model. 45 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH ULTIMATE RC 6.5 2023 is the most economical model, with a starting price of 2249$. BH ULTIMATE 9.9 2023 on the other hand costs 10095$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, BH ULTIMATE 8.5 price was 5473$. Comparing this to the average Crosscountry bike price, we see that the price is 187.3% higher.
Overview of components

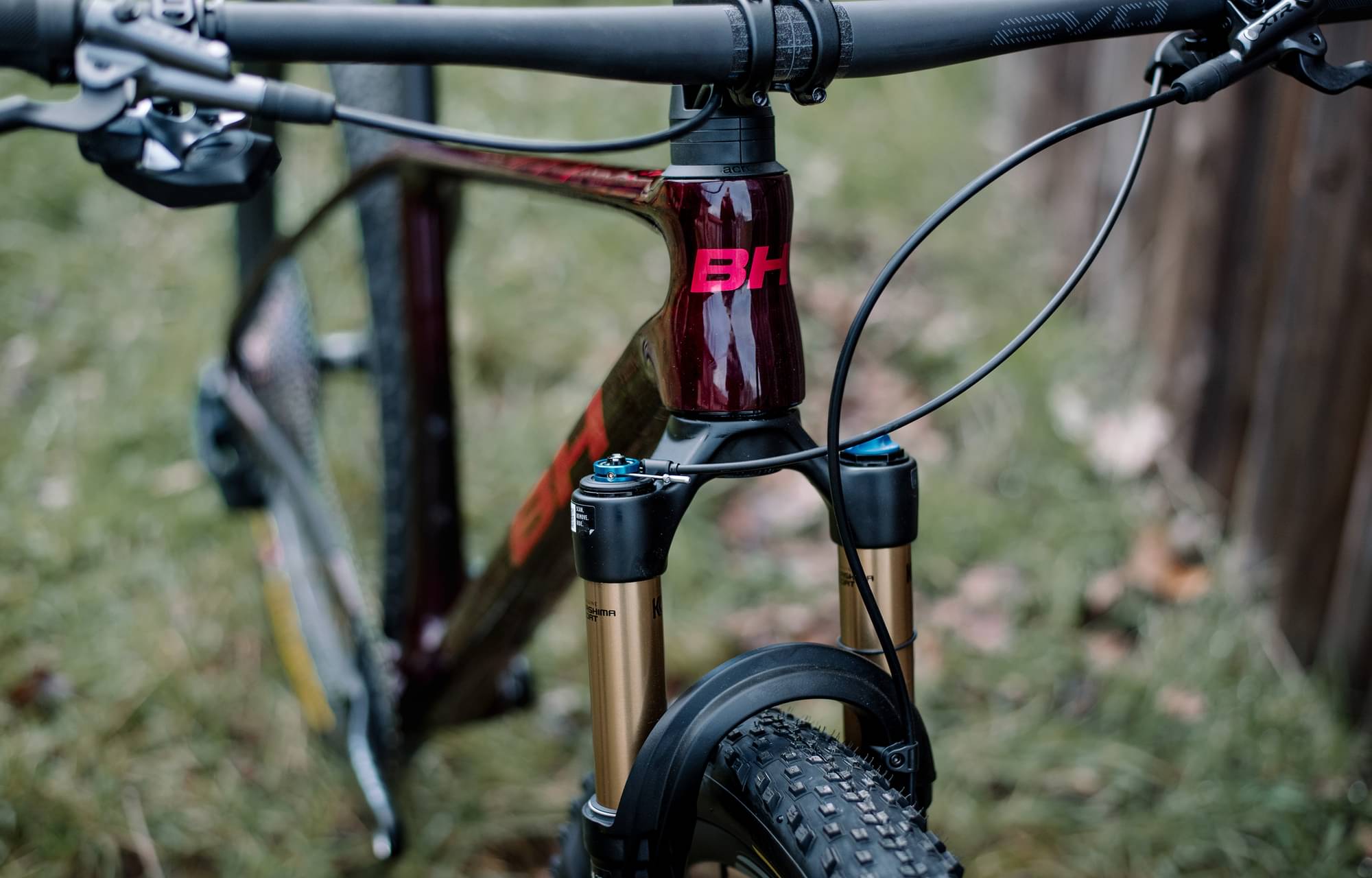

Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ULTIMATE 8.5 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.

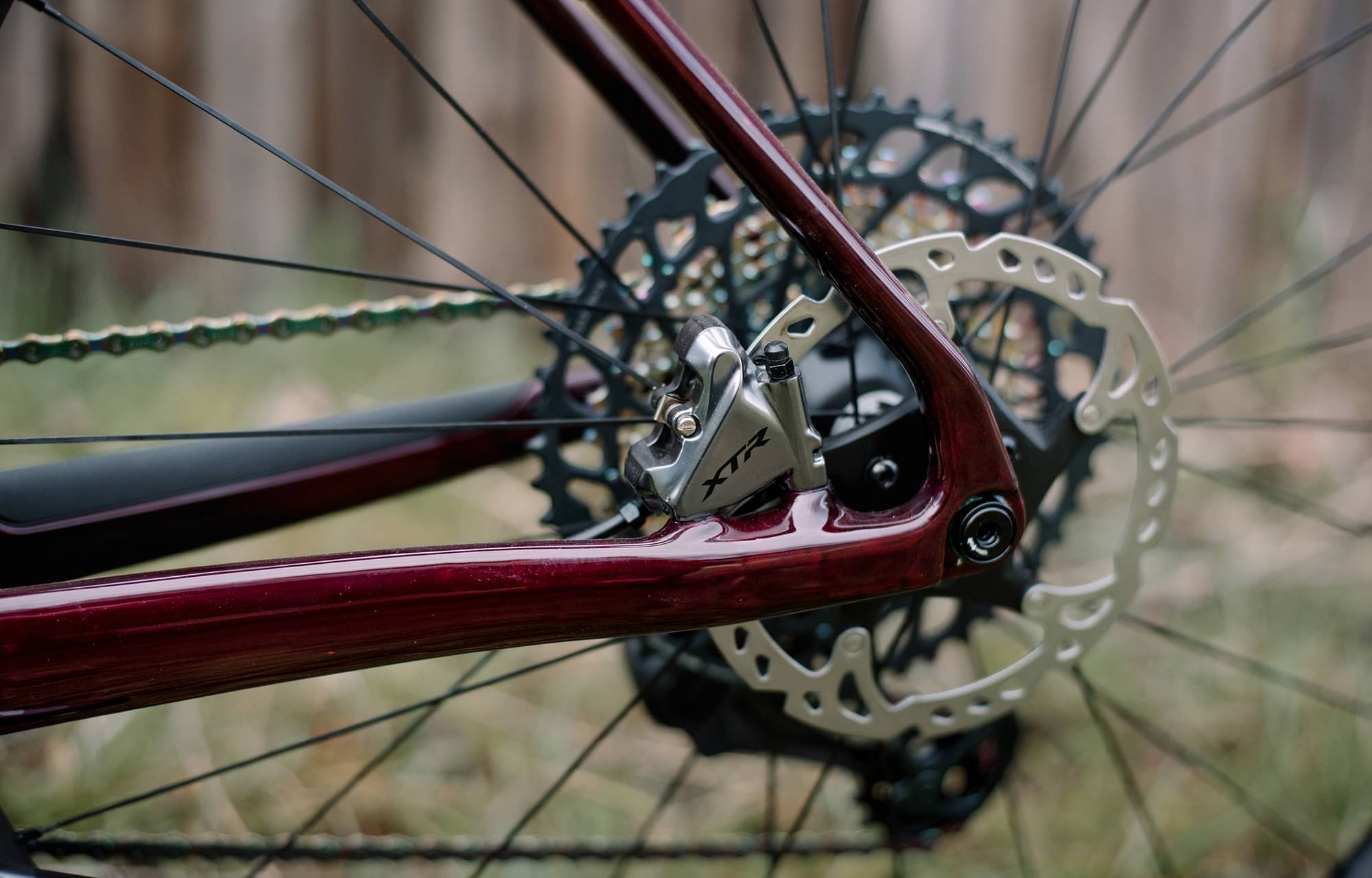

Brakes
Nothing is more important on a bike than its ability to brake properly. BH ULTIMATE 8.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
