Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Rhythm, GRIP damper, remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano MT610, 175mm length
Bottom Bracket
Shimano, 92mm press-fit
Chain
Shimano SLX, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH Evo wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH Evo wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH Evo wheelset, alloy, 25mm width, 28 hole, tubeless
Spokes
BH Evo wheelset
Tires
Front: Maxxis Ardent Race, 3C MaxxSpeed, EXO, 29" x 2.2", Rear: Maxxis Ikon, 3C MaxxSpeed, EXO, 29" x 2.2"
Brakes
Brakes
Shimano MT400, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano MT400
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH SL Midflat, 780mm width, 31.8mm clamp diameter, 10mm rise, 6° backsweep
Grips
BH Control, lock-on
Headset
BH Evo by ACROS, BlockLock, integrated, stainless steel, sealed bearings
Seat
Saddle
Prologo Dimension
Seatpost
BH SL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.437 mm | 1.393 mm | 1.402 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 682 mm | 703 mm | 733 mm | 754 mm |
| Rake | 59 mm | 51 mm | 53 mm | 49 mm |
| Trail | 84 mm | 96 mm | 94 mm | 98 mm |
| Stack | 605.5 mm | 610.1 mm | 624.1 mm | 648.5 mm |
| Reach | 402.5 mm | 424.5 mm | 448 mm | 462.5 mm |
| Top Tube Length | 580 mm | 595.5 mm | 629.4 mm | 648.5 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 74 ° | 73.8 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1093 mm | 1114 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

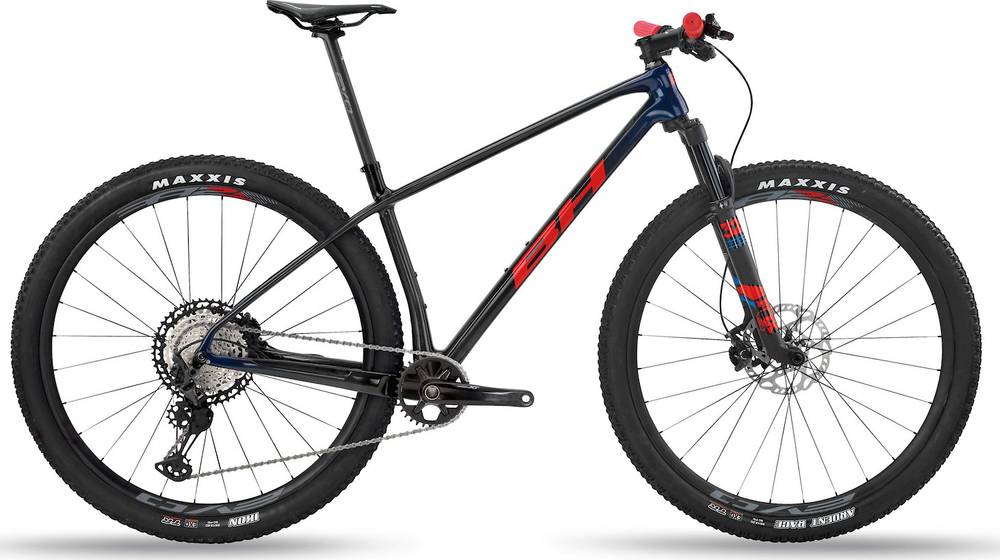

Model Overview
Ultimate Evo 8.0 is a Bh Ultimate model. BH launched 45 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Fox Rhythm Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Ultimate Evo 8.0 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ultimate Evo 8.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Ultimate Evo 8.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
