Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset Deore, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Rhythm, GRIP damper, remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore M6100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano MT510, 175mm length
Bottom Bracket
Shimano, BB92 press-fit
Chain
Shimano Deore M6100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH SL wheelset, 32 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH SL wheelset, 32 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH SL wheelset, 25mm width, 32 hole, tubeless
Spokes
BH SL wheelset
Tires
Continental Race King, 29" x 2.2"
Brakes
Brakes
Shimano MT400, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano MT400
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH Lite Flat, 780mm width, 31.8mm clamp diameter
Grips
BH, lock-on
Headset
BH Evo by ACROS BlockLock, integrated, sealed bearings
Seat
Saddle
Prologo Nago RS
Seatpost
BH Lite, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.437 mm | 1.393 mm | 1.402 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 682 mm | 703 mm | 733 mm | 754 mm |
| Rake | 59 mm | 51 mm | 53 mm | 49 mm |
| Trail | 84 mm | 96 mm | 94 mm | 98 mm |
| Stack | 605.5 mm | 610.1 mm | 624.1 mm | 648.5 mm |
| Reach | 402.5 mm | 424.5 mm | 448 mm | 462.5 mm |
| Top Tube Length | 580 mm | 595.5 mm | 629.4 mm | 648.5 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 74 ° | 73.8 ° |
| Seat Tube Length | 400 mm | 450 mm | 480 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1093 mm | 1114 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

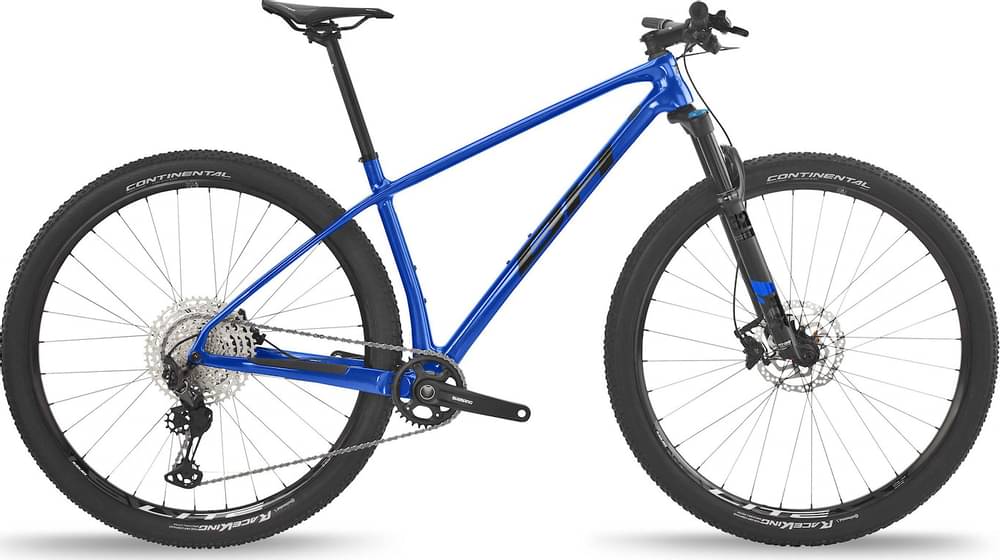

About this model
Ultimate RC 7.5 completes the Bh Ultimate model. 45 bikes variations carry this model name so far. Take a sneak peek at all Bh Ultimate bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Ultimate RC 7.5 components
Fork
The fork installed on this bike is the Fox Rhythm Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Ultimate RC 7.5 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. BH Ultimate RC 7.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
