Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultimate RC 2021 Carbon 29", 148X12, BlockLock headset
Suspension Fork
Fox 32 SC Performance Remote Lock 100mm
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Rims
BH SL Tubeless 25mm, 32H Shimano
Tires
Maxxis Ardent RaceIkon EXO2.20/Continental CrossKing2.20
Brakes
Brakes
Shimano XT 180mm
Cockpit
Stem
BH SL 80mm, 31,8mm, +/-6º
Handlebar
BH SL midflat 780mm, 10mm rise, 6ºback
Grips
BH Lock On
Headset
BH Evo by Accros BlockLock integrated sealed bearing
Seat
Saddle
Prologo Scratch M5
Seatpost
BH SL 27,5mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.437 mm | 1.393 mm | 1.402 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 682 mm | 703 mm | 733 mm | 754 mm |
| Rake | 59 mm | 51 mm | 53 mm | 49 mm |
| Trail | 84 mm | 96 mm | 94 mm | 98 mm |
| Stack | 605.5 mm | 610.1 mm | 624.1 mm | 648.5 mm |
| Reach | 402.5 mm | 424.5 mm | 448 mm | 462.5 mm |
| Top Tube Length | 580 mm | 595.5 mm | 629.4 mm | 648.5 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 74 ° | 73.8 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1093 mm | 1114 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

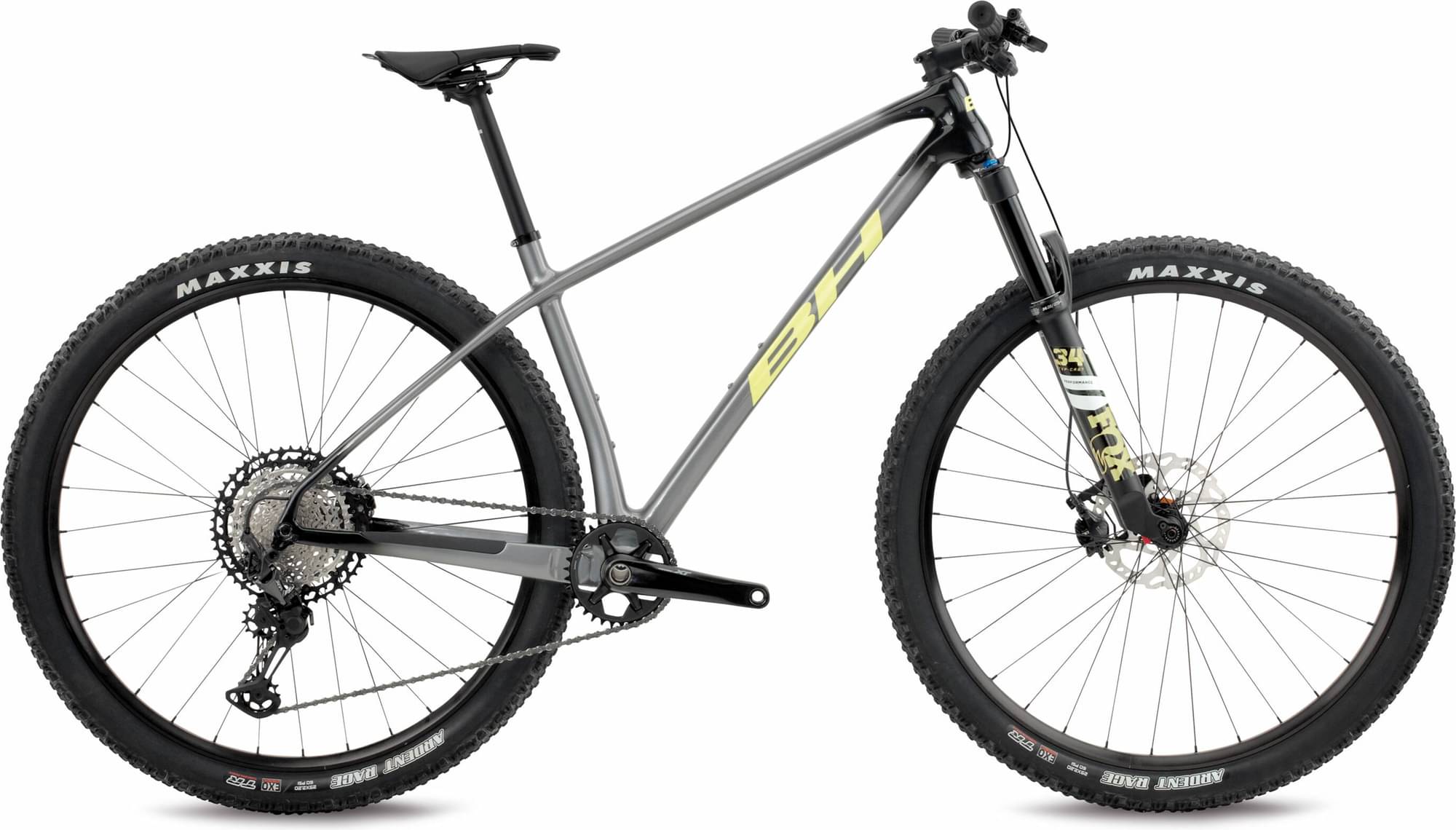

ULTIMATE RC 7.7 is a Bh Ultimate model. 45 bikes variations carry this model name so far. Take a sneak peek at all Bh Ultimate bikes models from 2022, by clicking here.
Model range prices
BH ULTIMATE RC 6.5 2022 is the cheapest bike model and costs 2249$. BH ULTIMATE EVO 9.9 2022 is the most expensive one and costs 9000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 3770$. Comparing this to the average Crosscountry bike price, we see that the price is 97.9% higher.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, BH ULTIMATE RC 7.7 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ULTIMATE RC 7.7 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
