Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery BH XTEP, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Rhythm
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano, 165mm length
Chain
Shimano Deore M6100, 12-speed
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
Shimano, MICRO SPLINE driver
Rear Hub
Shimano, MICRO SPLINE driver
Rims
Race Face AR30 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano SLX M7120, 4-piston, 203mm rotors
Brake Levers
Shimano SLX M7120
Cockpit
Stem
Race Face Aeffect, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10
Headset
ACROS AIF-544 ICR IPS
Seat
Saddle
Prologo Proxim W350 STN
Seatpost
Race Face Aeffect dropper
Motor & Battery
Motor
Shimano STEPS EP8, 85 Nm max torque
Battery
BH XTEP, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.439 mm | 1.403 mm | 1.403 mm |
| Stack | 608 mm | 620 mm | 647 mm | 647 mm |
| Reach | 421 mm | 431 mm | 461 mm | 461 mm |
| Top Tube Length | 599 mm | 613 mm | 650 | 650 |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 65.1 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

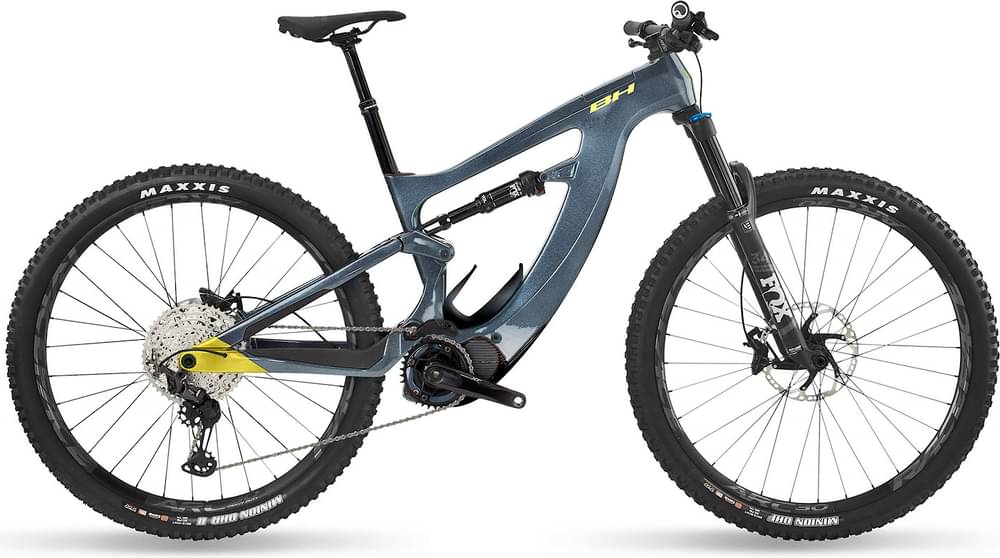

XTEP Carbon Lynx 5.5 Pro belongs to the Bh E Xtep model. BH launched 23 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT DPS Performance model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on XTEP Carbon Lynx 5.5 Pro are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. BH XTEP Carbon Lynx 5.5 Pro has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the XTEP Carbon Lynx 5.5 Pro. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
