Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery BH XTEP, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Performance
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano, 165mm length
Chain
Shimano SLX M7100, 12-speed
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
DT Swiss, MICRO SPLINE driver
Rear Hub
DT Swiss, MICRO SPLINE driver
Rims
DT Swiss H1900 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
Race Face Aeffect, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10
Headset
ACROS AIF-544 ICR IPS
Seat
Saddle
Prologo Proxim W450 STN
Seatpost
Race Face Aeffect dropper
Motor & Battery
Motor
Shimano STEPS EP8, 85 Nm max torque
Battery
BH XTEP, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.439 mm | 1.403 mm | 1.403 mm |
| Stack | 608 mm | 620 mm | 647 mm | 647 mm |
| Reach | 421 mm | 431 mm | 461 mm | 461 mm |
| Top Tube Length | 599 mm | 613 mm | 650 | 650 |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 65.1 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

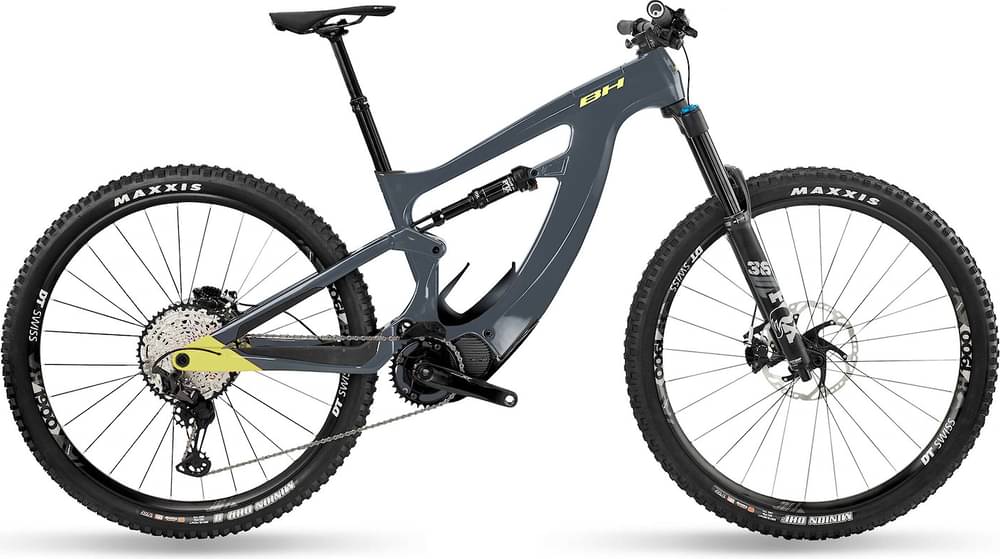

XTEP Carbon Lynx 5.5 Pro-S is a Bh E Xtep model. There are 23 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This e-bike has the Fox Performance Float 36 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
BH XTEP Carbon Lynx 5.5 Pro-S e-bike has the FOX FLOAT DPS Performance model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the XTEP Carbon Lynx 5.5 Pro-S model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
XTEP Carbon Lynx 5.5 Pro-S comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The BH model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
