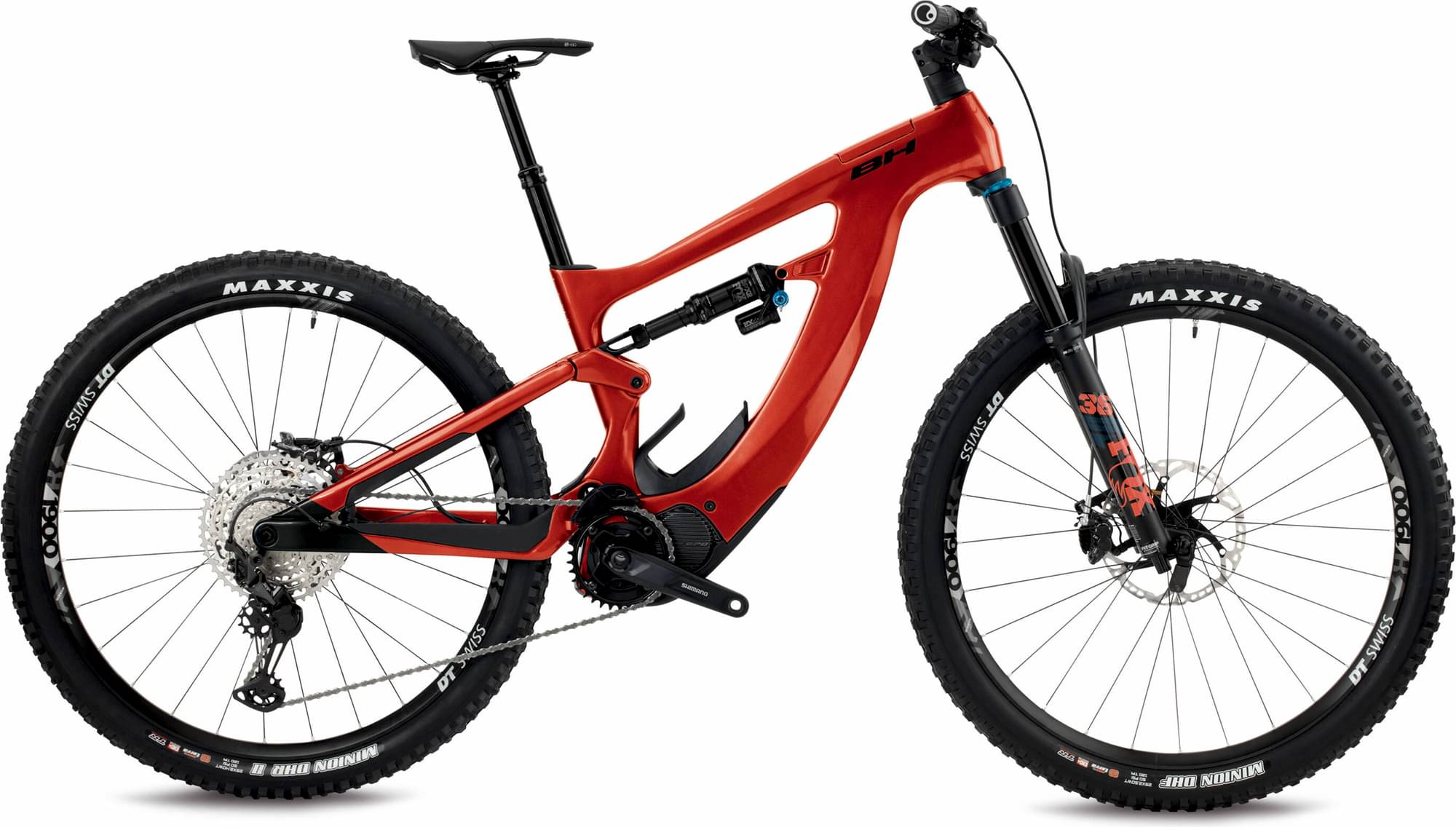

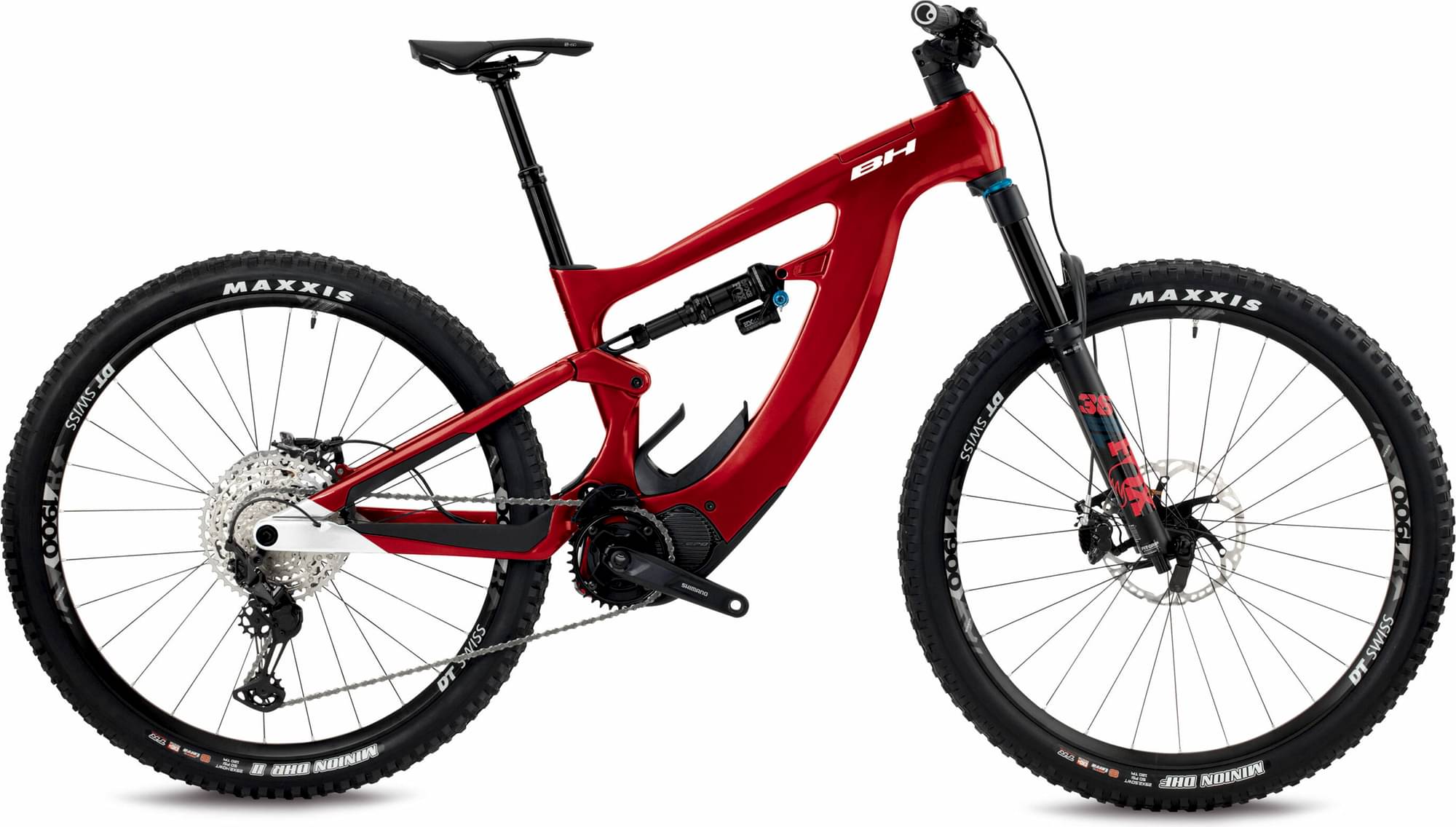

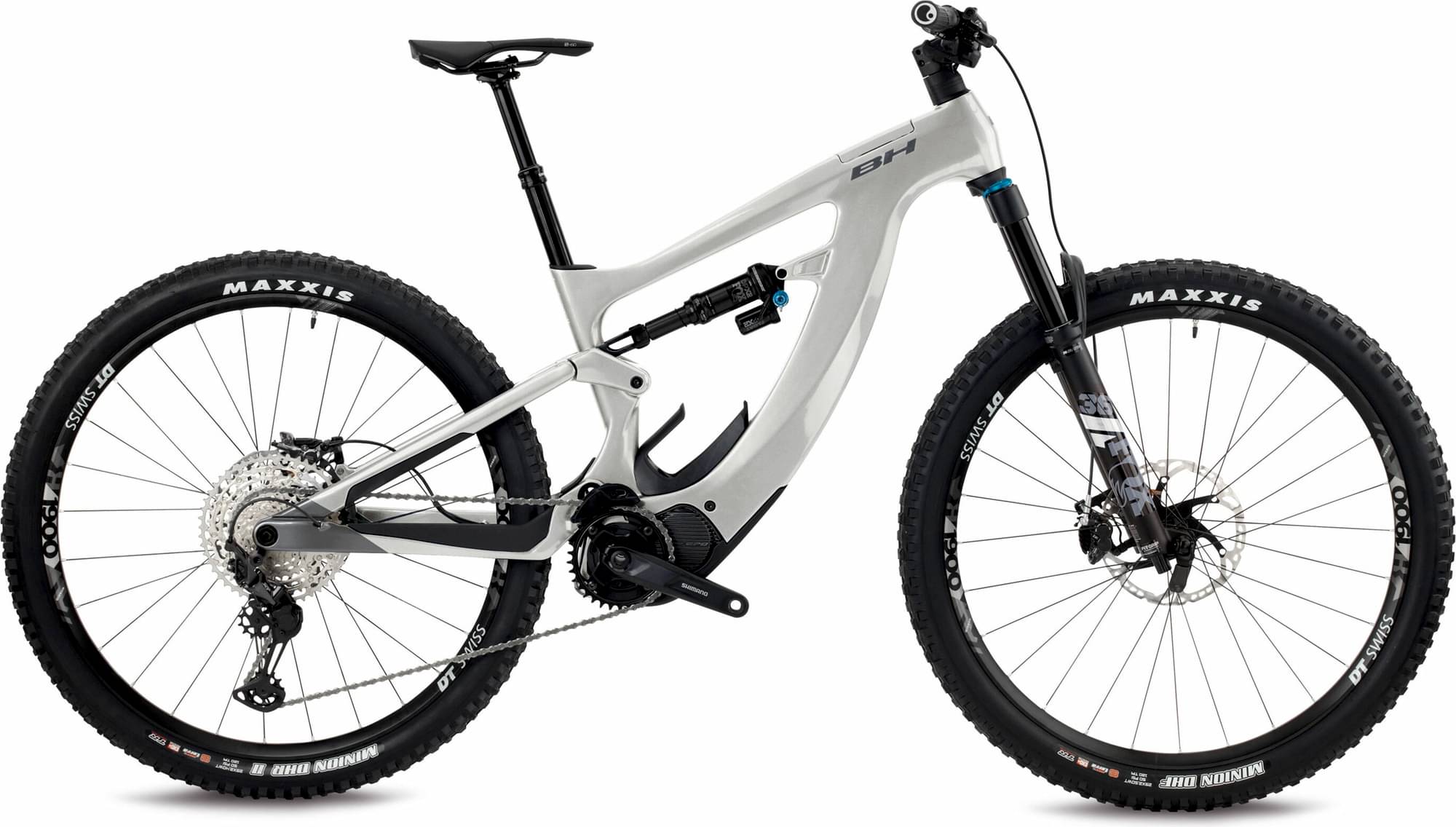

BH XTEP LYNX CARBON PRO 8.8 2023
2023 E-bike
Estimate price |
10,437$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140mm Full Susp.Carbon 29" Internal Cable Routing, Acros ICR
Suspension Fork
FOX 36 FLOAT Performance 140mm 15QR
Rear Shock
FOX FLOAT X Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano SLX
Cassette
Shimano CSM7100 12sp (10-51T)
Crank
Shimano 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM7100
Pedals
-
Wheels
Front Hub
DT Swiss
Rear Hub
DT Swiss
Rims
DT Swiss H1900 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR
Brakes
Brakes
Front: Shimano XT 4 Piston 203mm, Rear: Shimano XT 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AIX-545 ICR IPS
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.439 mm | 1.403 mm | 1.403 mm |
| Stack | 608 mm | 620 mm | 647 mm | 647 mm |
| Reach | 421 mm | 431 mm | 461 mm | 461 mm |
| Top Tube Length | 599 mm | 613 mm | 650 | 650 |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 65.1 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 748 mm | 757 mm | 799 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
XTEP LYNX CARBON PRO 8.8 is part of the Bh E Xtep model. BH launched 23 e-bikes of this model so far. Take a sneak peek at all Bh E Xtep e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the BH XTEP LYNX PRO 0.7 2023 has a starting price of 8514$. BH XTEP LYNX CARBON PRO 9.9 2023 on the other hand is the most expensive at 10946$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 9487$. In conclusion, this e-bike price is 181.93% more expensive than the price of the average Trail e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
BH XTEP LYNX CARBON PRO 8.8 e-bike has the FOX FLOAT X Performance model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The XTEP LYNX CARBON PRO 8.8 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH XTEP LYNX CARBON PRO 8.8 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
BH XTEP LYNX CARBON PRO 8.8 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
