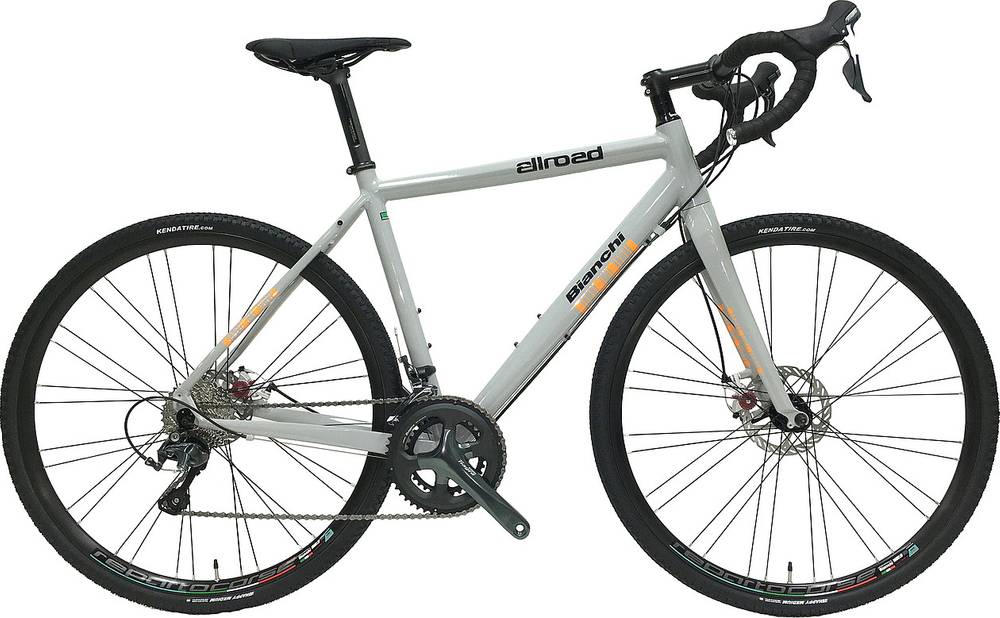

Bianchi All Road Disc Tiagra 2017
2017 Road
Estimate price |
1,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All Road Hydroformed aluminum, triple-butted
Suspension Fork
Bianchi Alu/Carbon, tapered, 1 1/8"
Drivetrain
Rear Derailleur
Shimano Tiagra 10sp
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra 10sp
Cassette
Shimano Tiagra 11-32T
Crank
Shimano Tiagra 50X34
Bottom Bracket
Included w/crankset
Chain
Shimano CN-HG54 10sp
Wheels
Front Hub
Formula RX-25 alloy
Rear Hub
Formula RX-2611 alloy
Rims
Bianchi Reparto Corse Tubeless Ready
Tires
Kenda Happy Medium 700x35
Brakes
Brakes
Avid BB5 mechanical disc brake
Disk Rotors
Avid G2 160mm
Cockpit
Stem
Reparto Corse 3D forged alloy
Handlebar
Reparto Corse Aluminum
Headset
Fsa Orbit C-40
Seat
Saddle
Selle San Marco Era Startup Power
Seatpost
Reparto Corse Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Stack | 533 mm | 549 mm | 560 mm | 574 mm | 591 mm | 605 mm | 621 mm |
| Reach | 375 mm | 380 mm | 382 mm | 388 mm | 393 mm | 398 mm | 397 mm |
| Top Tube Length | 521 mm | 531 mm | 541 mm | 556 mm | 566 mm | 581 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 431 mm | 431 mm | 436 mm | 436 mm | 436 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
All Road Disc Tiagra is a Bianchi All model. Bianchi released 2 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Bianchi All Road Disc Tiagra 2017 has a starting price of 1599$. Bianchi All Road Hydraulic Disc 105 2017 on the other hand is the most expensive at 1899$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Road bikes average price
If you want an acceptable General Road bike you should know that the average price is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2017 and its price was 1599$. Comparing the average cost of a General Road bike to this one, you will see that All Road Disc Tiagra price is 19.76% smaller.
Overview of components
Fork material
All Road Disc Tiagra has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on All Road Disc Tiagra are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Bianchi All Road Disc Tiagra has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
