Bianchi e-Omnia C Type NEXUS 2023
2023 E-bike
Estimate price |
5,151$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Nexus, Gates CDX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 625Wh integrated battery -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-OMNIA C-Type belt drive ALU sizes: 45-50-55 - IG 135 mm quick release dropouts (special dropout for internal gear) - Post mount 180 disc brake type - Internal cable routing in DT - Frame lock compatible - 625Wh compatible - custom rear carrier integrate
Suspension Fork
Suntour XCM34-Boost LOR DS 29", 100mm travel, 1.5" tapered HT, w/ 15AH2-110 TA, minimum 160mm rotor, maximum 203mm rotor, 34mm stanchions
Drivetrain
Shift Levers
Shimano, SL-C7000-5, NEXUS, REVO SHIFTER, 5-SPEED
Cassette
Gates Carbon, CDX Rear Sprocket, 28T, Shimano Nexus 5 Mech. Hub 6-Lobe "Unified" Sprocket for 45,5 mm Beltline
Crank
FSA Metropolis, Alloy, 170mm Gates CDX 39T
Bottom Bracket
included in the motor
Chain
CDXB118, Cinghia CDX Gates Carbon Drive, 118T, nera Lunghezza 1298 mm, passo 11 mm, larghezza 12 mm
Pedals
VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included
Wheels
Front Hub
Formula CL-811 for Center Lock, 32h, 15x110mm TA
Rear Hub
Shimano, SG-C7000-5D, NEXUS, 5-SPEED, FOR CENTER LOCK DISC BRAKE, 32H 135X187MM
Rims
Velomann E-Sport Tubeless Ready 29", 25-622, 32 hole
Tires
Vittoria e-Randonneur, 50-622
Brakes
Brakes
Promax, DSK-925
Cockpit
Stem
Velomann 35,3D FORGED 0°>90° L70MM
Handlebar
Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°
Grips
Herrmans Grip
Headset
FSA NO.55R/558 1.5"
Seat
Saddle
Velomann, 256x220, 612gr.
Seatpost
Velomann 31.6*350, suspension seatpost
Motor & Battery
Motor
Bosch Performance Line CX, 250W, 85Nm, Kiox display
Battery
Bosch Powertube 625Wh integrated battery
Fit data

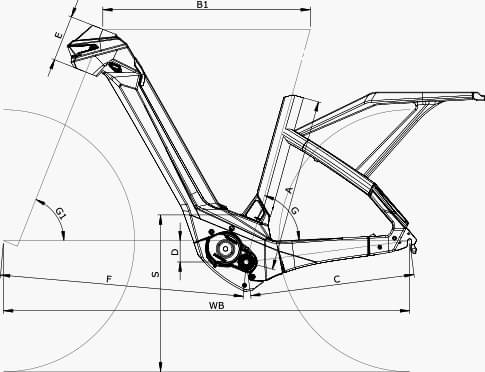

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Front Center | 689 mm | 703 mm | 718 mm |
| Top Tube Length | 599 mm | 614 mm | 629 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 130 mm | 135 mm | 135 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1146 mm | 1161 mm | 1176 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
e-Omnia C Type NEXUS is a Bianchi E E Omnia model. 56 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Bianchi e-Omnia X-Type Deore 2023 has a starting price of 2979$. Bianchi e-Omnia FX Type XT 1×12 2023 on the other hand is the most expensive at 5900$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4682$. Comparing the average cost of a General Urban e-bike to this one, you will see that e-Omnia C Type NEXUS price is 123.16% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The e-Omnia C Type NEXUS 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
