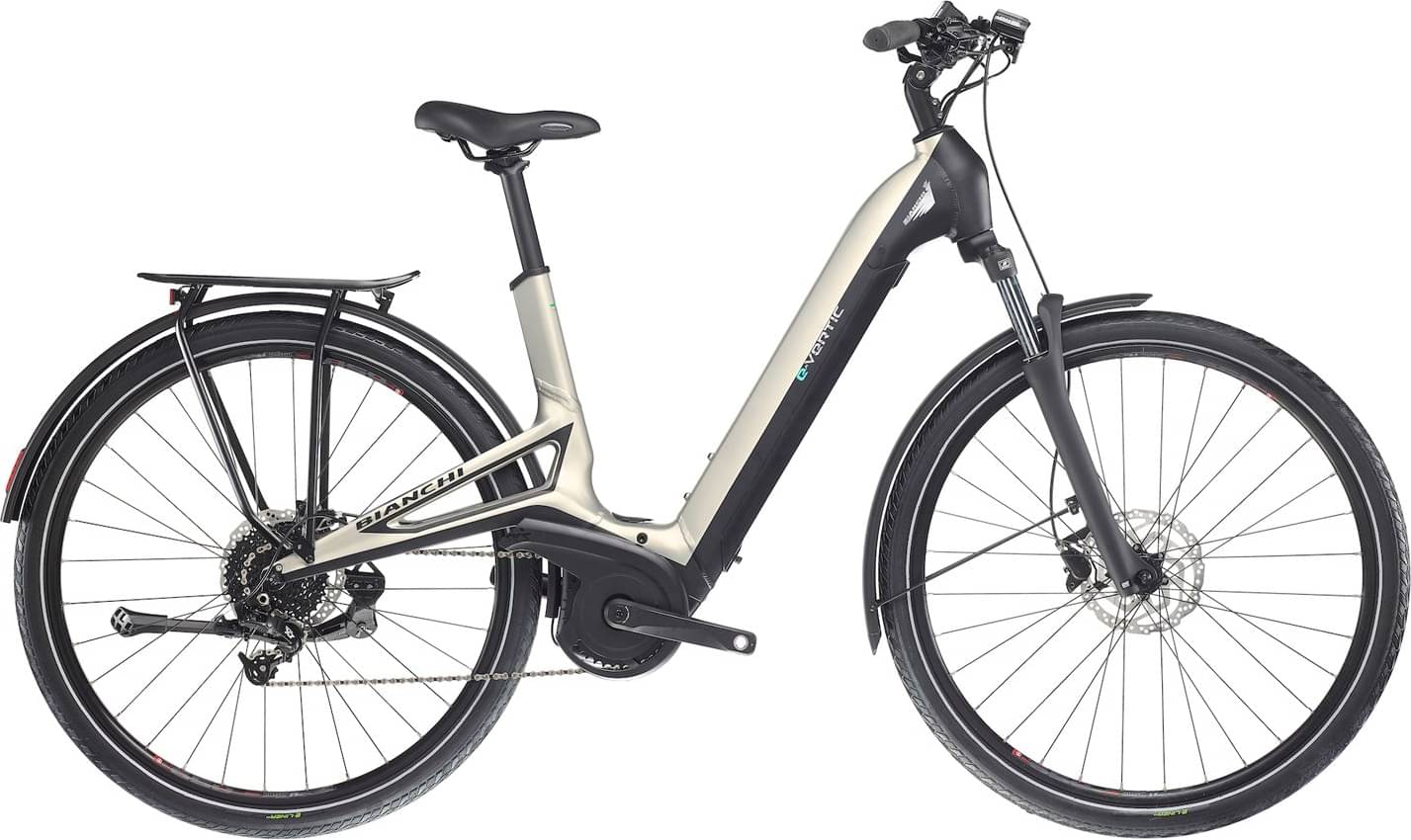

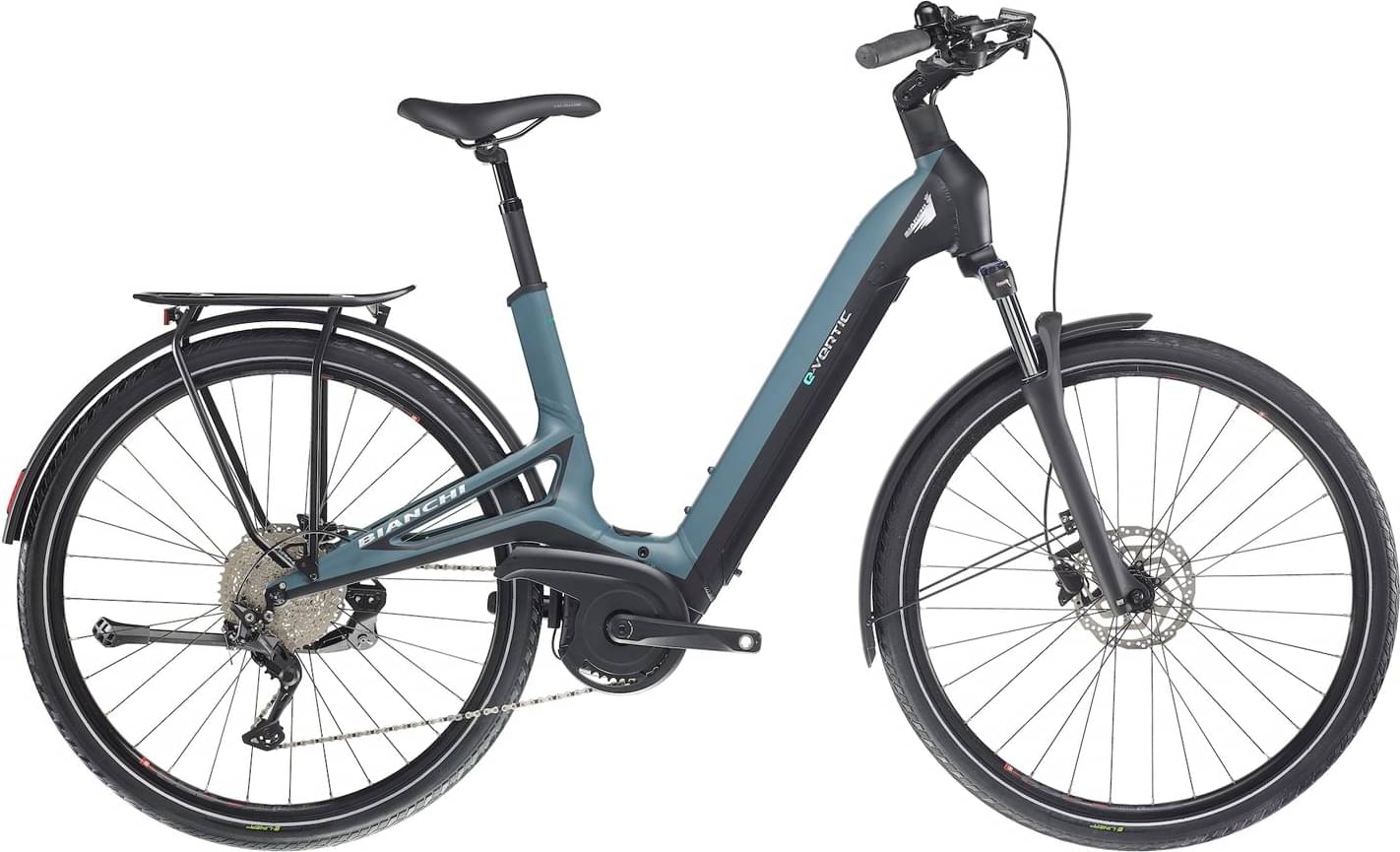

Bianchi e-Vertic C-Type DEORE 2023
2023 E-bike
Estimate price |
3,813$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch Powertube 500Wh integrated battery -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC C-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type - Internal cable routing in steerer - 625Wh compatible
Suspension Fork
Suntour NVX30 NLO DS 29", 100mm travel, 1.1/8" straight HT, w/out 9x100 QR, minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
Drivetrain
Rear Derailleur
Shimano, RD-M4120, DEORE, SGS 10/11-SPEED
Shift Levers
Shimano, SL-M4100-R, DEORE, 10-SPEED
Crank
FSA CK-200, Alloy, 170mm FSA Steel Chainring 38T
Bottom Bracket
incluso nel motore
Chain
KMC e10S NPBK
Pedals
VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included
Wheels
Front Hub
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
Rear Hub
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
Rims
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
Tires
Continental 50-622 eContact Plus
Brakes
Brakes
Promax, DSK-925
Cockpit
Stem
Velomann aluminium adjustable, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Grips
Herrmans GRIPset Oxy
Headset
Acros Headset 1,5" top / 1,5" - integrated cable routing
Seat
Saddle
Velomann, size 270x162mm, 385gr.
Seatpost
Velomann travel 50mm, suspension seatpost 300mm for size 43 350mm for sizes 48, 53
Motor & Battery
Motor
Bosch Performance Line, 250W, 65Nm, Purion display
Battery
Bosch Powertube 500Wh integrated battery
Fit data

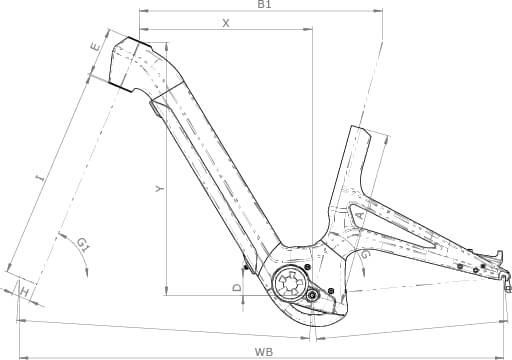

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.55 mm | 1.54 mm |
| Front Center | 697 mm | 713 mm | 730 mm |
| Rake | 46 mm | 47 mm | 46 mm |
| Trail | 85 mm | 84 mm | 85 mm |
| Stack | 640 mm | 654 mm | 668 mm |
| Reach | 412 mm | 423 mm | 434 mm |
| Top Tube Length | 591 mm | 606 mm | 621 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1164 mm | 1181 mm | 1197 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
e-Vertic C-Type DEORE is part of the Bianchi E E Vertic model. Bianchi launched 27 e-bikes of this model so far. You can easily view all of the Bianchi E E Vertic e-bikes models from 2023, here.
Model range prices
The most economical model, the Bianchi e-Vertic C-Type X5 2023 has a starting price of 3161$. Bianchi e-Vertic FX-Type Pro GX AXS 2023 on the other hand is the most expensive at 9243$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Urban e-bikes average price
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3466$. If we compare this with the average General Urban e-bike cost we notice that the price is 65.2% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
e-Vertic C-Type DEORE components
Fork
Bianchi e-Vertic C-Type DEORE 2023 e-bike is equipped with the Suntour NVX fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on e-Vertic C-Type DEORE are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The e-Vertic C-Type DEORE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
