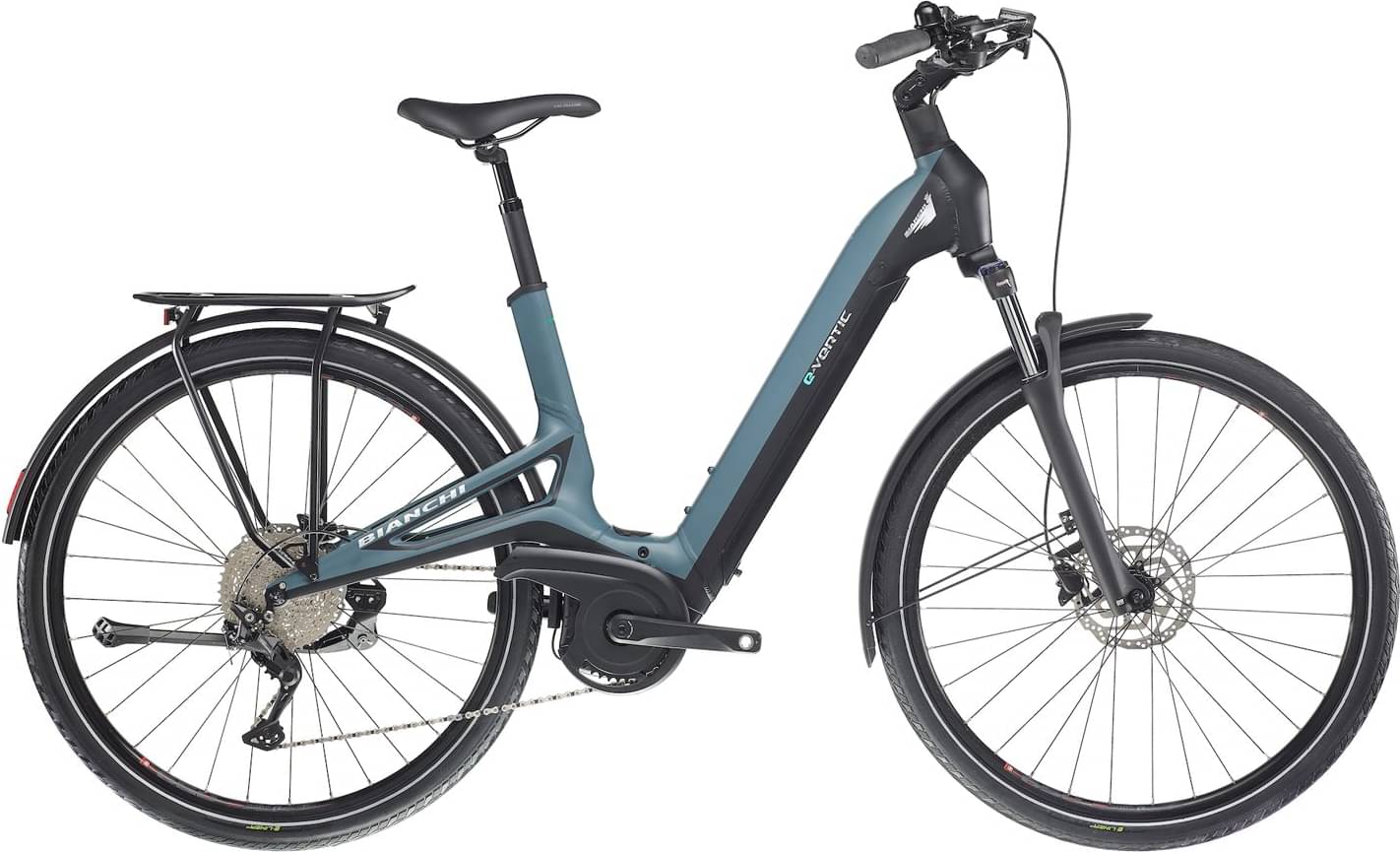

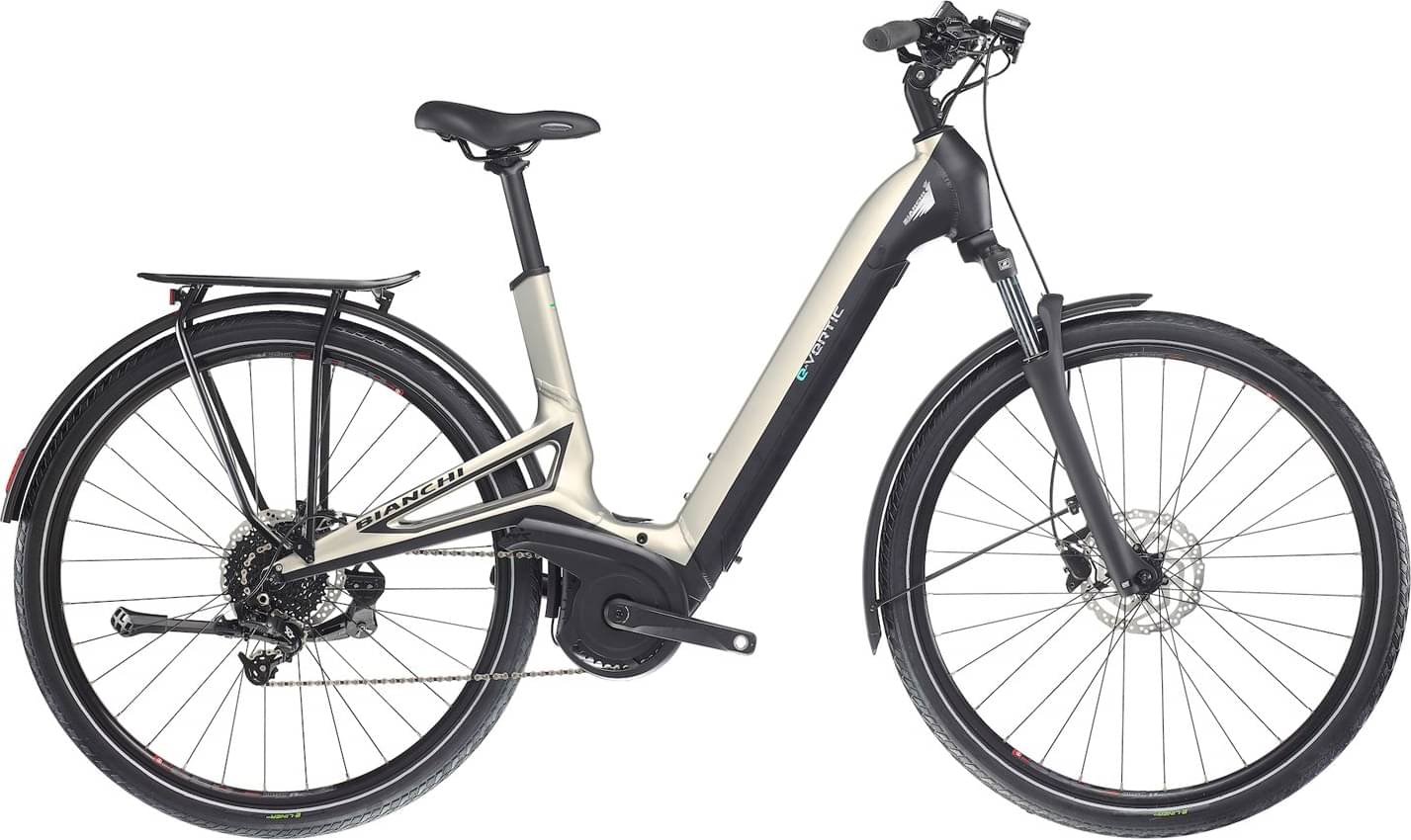

Bianchi e-Vertic C-Type – X5 2022
2022 E-bike
Estimate price |
3,478$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Powertube 400wh integrated battery -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC C-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type
Suspension Fork
Suntour 29", travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8"(TS), OLD 9-100, max rotor 180, post mount 160mm direct
Drivetrain
Rear Derailleur
SRAM RD X7 SHORT CAGE ALUMINUM 9sp
Shift Levers
SRAM X5 TRIGGER REAR 9-SPD BLK 2200MM CABLE
Crank
FSA E-Bike Diecast Crankset - CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring - 38T / w/HT Steel / ED / C.L. 50mm Bosch Gen3 Bolt - Bosch Gen3 crank bolt Black
Bottom Bracket
included in the motor
Chain
KMC e9S NPBK 1/2" x 11/128"
Wheels
Rear Hub
Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER
Rims
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm, 6,5mm valve
Tires
Chaoyang E-Liner City 700x45C, 60tpi, Rhino Skin / SPS
Brakes
Brakes
Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE
Cockpit
Stem
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Grips
Herrmans, 130mm/130mm, d.22mm
Headset
SeatpLock SET AL bk T-Tronik + Omnia Screw M5x40, CH, hex, black Seatclamp Rubber Cover Omnia
Seat
Saddle
Velomann, steel rail, black cover 8067, 254x183mm, 420gr.
Seatpost
Velomann, lenght 350mm for SM size and 400mm for MD, LG, diam.31,6mm, 0mm seatback
Motor & Battery
Motor
Bosch Active Plus motor unit
Battery
Bosch Powertube 400wh integrated battery
Fit data

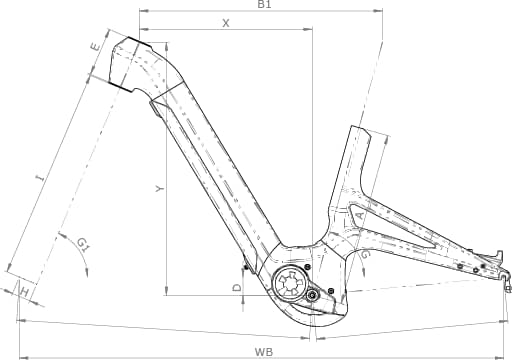

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.55 mm | 1.54 mm |
| Front Center | 697 mm | 713 mm | 730 mm |
| Rake | 46 mm | 47 mm | 46 mm |
| Trail | 85 mm | 84 mm | 85 mm |
| Stack | 640 mm | 654 mm | 668 mm |
| Reach | 412 mm | 423 mm | 434 mm |
| Top Tube Length | 591 mm | 606 mm | 621 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1164 mm | 1181 mm | 1197 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
e-Vertic C-Type – X5 is part of the Bianchi E E Vertic model. 27 e-bikes variations carry this model name so far. Take a sneak peek at all Bianchi E E Vertic e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Bianchi e-Vertic C-Type – X5 2022 has a starting price of 3161$. Bianchi e-Vertic FX-Type – NX/GX 2022 on the other hand is the most expensive at 6020$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Bianchi e-Vertic C-Type – X5 price was 3161$. Doing a quick comparison, we notice that e-Vertic C-Type – X5 price is 50.67% higher than the average cost of a General Urban e-bike.
e-Vertic C-Type – X5 components
Fork
This e-bike has the Suntour fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Bianchi e-Vertic C-Type – X5 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The e-Vertic C-Type – X5 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Bianchi e-Vertic C-Type – X5 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
