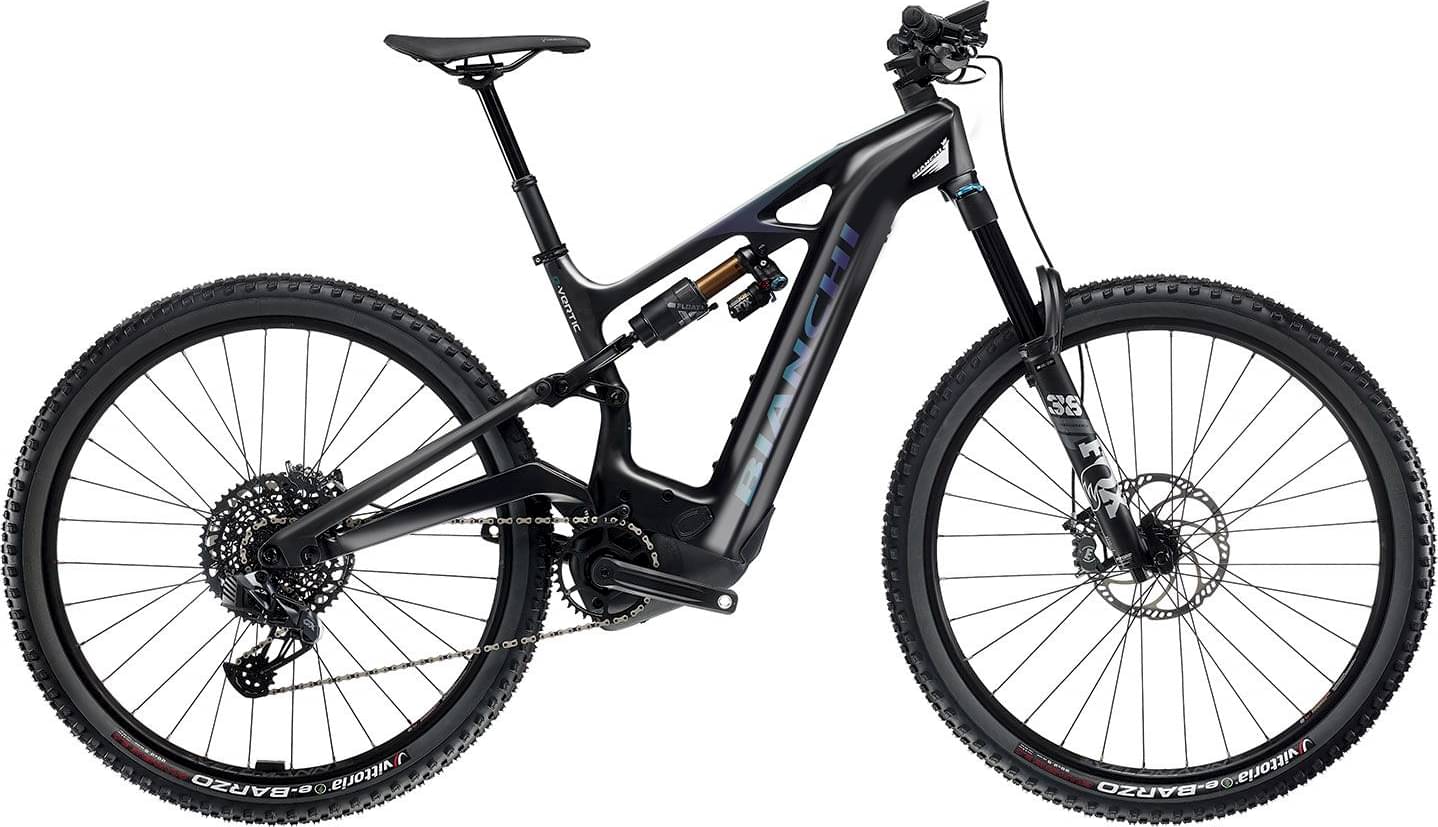

Bianchi e-Vertic FX-Type Pro NX/GX 2023
2023 E-bike
Estimate price |
7,827$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh integrated battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC FX-Type Pro - full carbon sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 160mm travel front & rear - Internal cable routing in steerer
Suspension Fork
RockShox ZEB 29", 160mm travel, 1.5" tapered HT, Maxle Ultimate 15x110mm BOOST axle, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAir
Rear Shock
RockShox Deluxe Select +, 230/65, DebonAir Progressive, Damer Type RT, Compression Tune L, Lockout Force 380, black finish tube, external rebound adjustment, Volume reducer 0 Neg 1 Pos
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12sp
Shift Levers
SRAM NX EAGLE 1x12
Crank
FSA CK-320/IS/Gen4 FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum SRAM X-SYNC 2 Eagle Chainring, 34T
Bottom Bracket
included in the motor
Chain
SRAM GX EAGLE, 12sp
Wheels
Front Hub
Formula CL-811 per fissaggio centrale, 32h, 15x110mm TA
Rear Hub
Formula CL-1481, for Center Lock, 32h, 12x148mm TA
Rims
Velomann Tubeless Ready 29", 622x30, 32 hole
Tires
Vittoria e-Barzo 29x2.6 XC-Trail TNT
Brakes
Brakes
Magura MT Thirty
Cockpit
Stem
Velomann, 50mm, 35mm, 1"1/8
Handlebar
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°
Grips
T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp
Headset
Acros AIX-545 1.8" top / 1.5" - internal cable routing
Seat
Saddle
Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145
Seatpost
Velomann, diam.31,6mm, internal remote cable routing, 120mm/150mm travel - 120mm for size 43 - 150mm for sizes 48, 53
Motor & Battery
Motor
Bosch Performance Line CX, 250W, 85Nm, Kiox display
Battery
Bosch PowerTube 750Wh integrated battery
Fit data

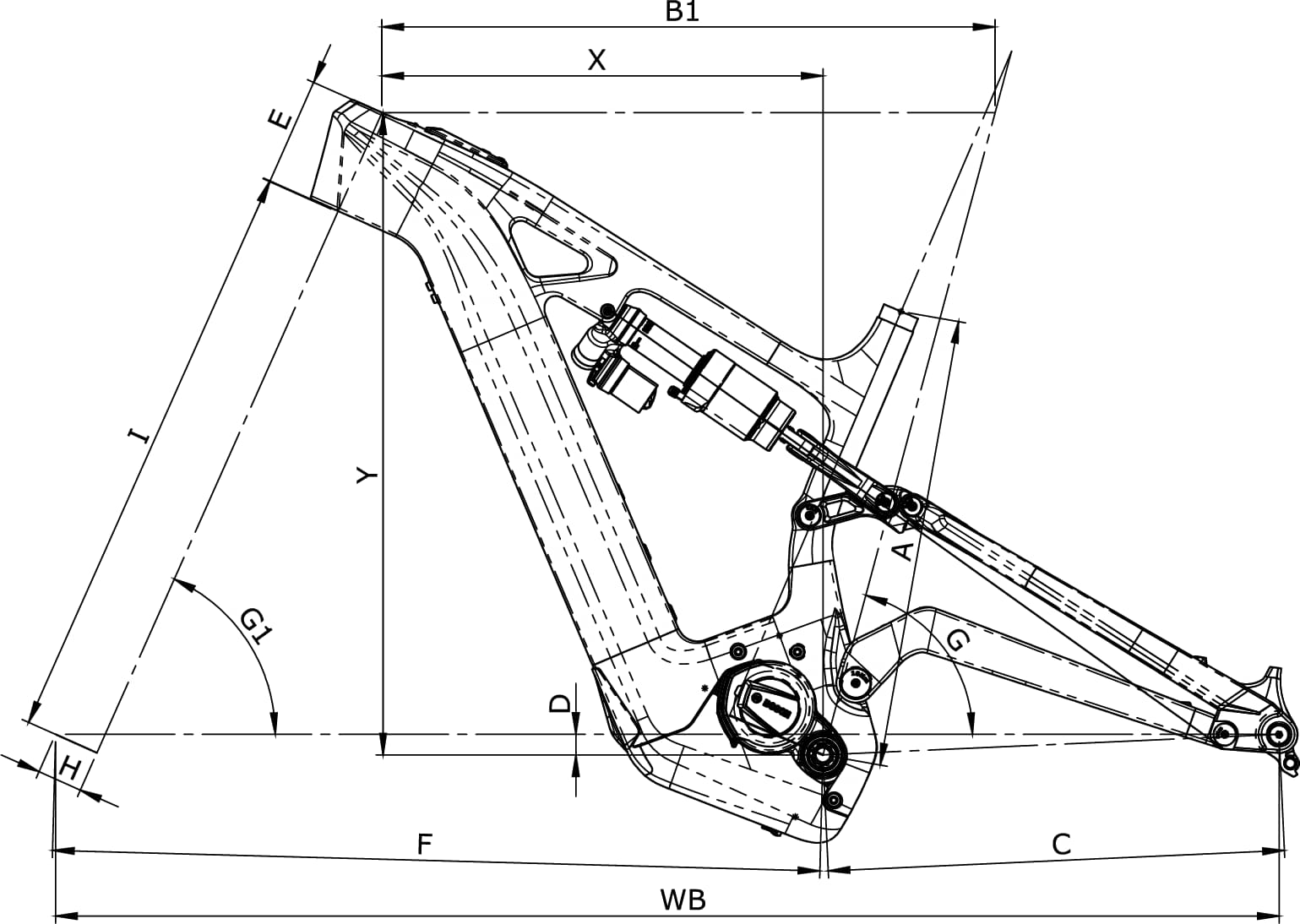

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.39 mm | mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 748 mm | 784 mm | 822 mm |
| Rake | 44 mm | 44 mm | mm |
| Trail | 119 mm | 119 mm | mm |
| Stack | 624 mm | 637 mm | mm |
| Reach | 427 mm | 458 mm | 488 mm |
| Top Tube Length | 595 mm | 622 mm | 659 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 432 mm | 477 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1190 mm | 1226 mm | 1264 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
e-Vertic FX-Type Pro NX/GX completes the Bianchi E E Vertic model. Bianchi launched 27 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Bianchi e-Vertic C-Type X5 2023 has a starting price of 3161$. Bianchi e-Vertic FX-Type Pro GX AXS 2023 on the other hand is the most expensive at 9243$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7115$. Doing a quick comparison, we notice that e-Vertic FX-Type Pro NX/GX price is 48.69% more expensive than the average cost of an Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
e-Vertic FX-Type Pro NX/GX components
Fork
This e-bike has the RockShox ZEB fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select + rear shock model, which has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The e-Vertic FX-Type Pro NX/GX 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
e-Vertic FX-Type Pro NX/GX comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Bianchi e-Vertic FX-Type Pro NX/GX comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
