Bianchi e-Vertic T-Type Step-through DEORE 2023
2023 E-bike
Estimate price |
3,947$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch Powertube 500Wh integrated battery -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC T-Type Step-through ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type - Internal cable routing in steerer - 625Wh compatible
Suspension Fork
Suntour NVX30 NLO DS 29", escursione 100 mm, 1,1/8" HT diritto, senza QR 9x100, rotore minimo 160 mm, rotore massimo 180 mm, steli da 30 mm
Drivetrain
Rear Derailleur
Shimano, RD-M4120, DEORE, SGS 10/11-SPEED
Shift Levers
Shimano, SL-M4100-R, DEORE, 10-SPEED
Crank
FSA CK-220, Alloy, 170mm FSA Steel Chainring 38T
Bottom Bracket
included in the motor
Chain
KMC e10S NPBK
Pedals
VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included
Wheels
Front Hub
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
Rear Hub
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
Rims
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
Tires
Continental 55-622 eContact Plus
Brakes
Brakes
Promax, DSK-925
Cockpit
Stem
Velomann aluminium adjustable, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Grips
Herrmans GRIPset Oxy
Headset
Acros Headset 1,5" top / 1,5" - integrated cable routing
Seat
Saddle
Velomann, size 270x162mm, 385gr.
Seatpost
Velomann travel 50mm, suspension seatpost 300mm for size 43 350mm for sizes 48, 53
Motor & Battery
Motor
Bosch Performance Line, 250W, 65Nm, Purion display
Battery
Bosch Powertube 500Wh integrated battery
Fit data

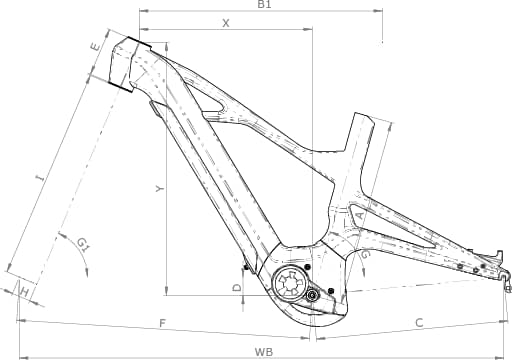

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.42 mm |
| Front Center | 723 mm | 745 mm | 766 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 621 mm | 630 mm | 644 mm |
| Reach | 422 mm | 440 mm | 455 mm |
| Top Tube Length | 595 mm | 616 mm | 634 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1191 mm | 1213 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
e-Vertic T-Type Step-through DEORE is part of the Bianchi E E Vertic model. Bianchi launched 27 e-bikes of this model so far. You can easily view all of the Bianchi E E Vertic e-bikes models from 2023, here.
Model range prices
The most economical model, the Bianchi e-Vertic C-Type X5 2023 has a starting price of 3161$. Bianchi e-Vertic FX-Type Pro GX AXS 2023 on the other hand is the most expensive at 9243$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 3587$. In conclusion, this e-bike price is 39.63% more expensive than the price of the average Commuter e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Bianchi e-Vertic T-Type Step-through DEORE 2023 e-bike is equipped with the Suntour NVX fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the e-Vertic T-Type Step-through DEORE model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The e-Vertic T-Type Step-through DEORE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
