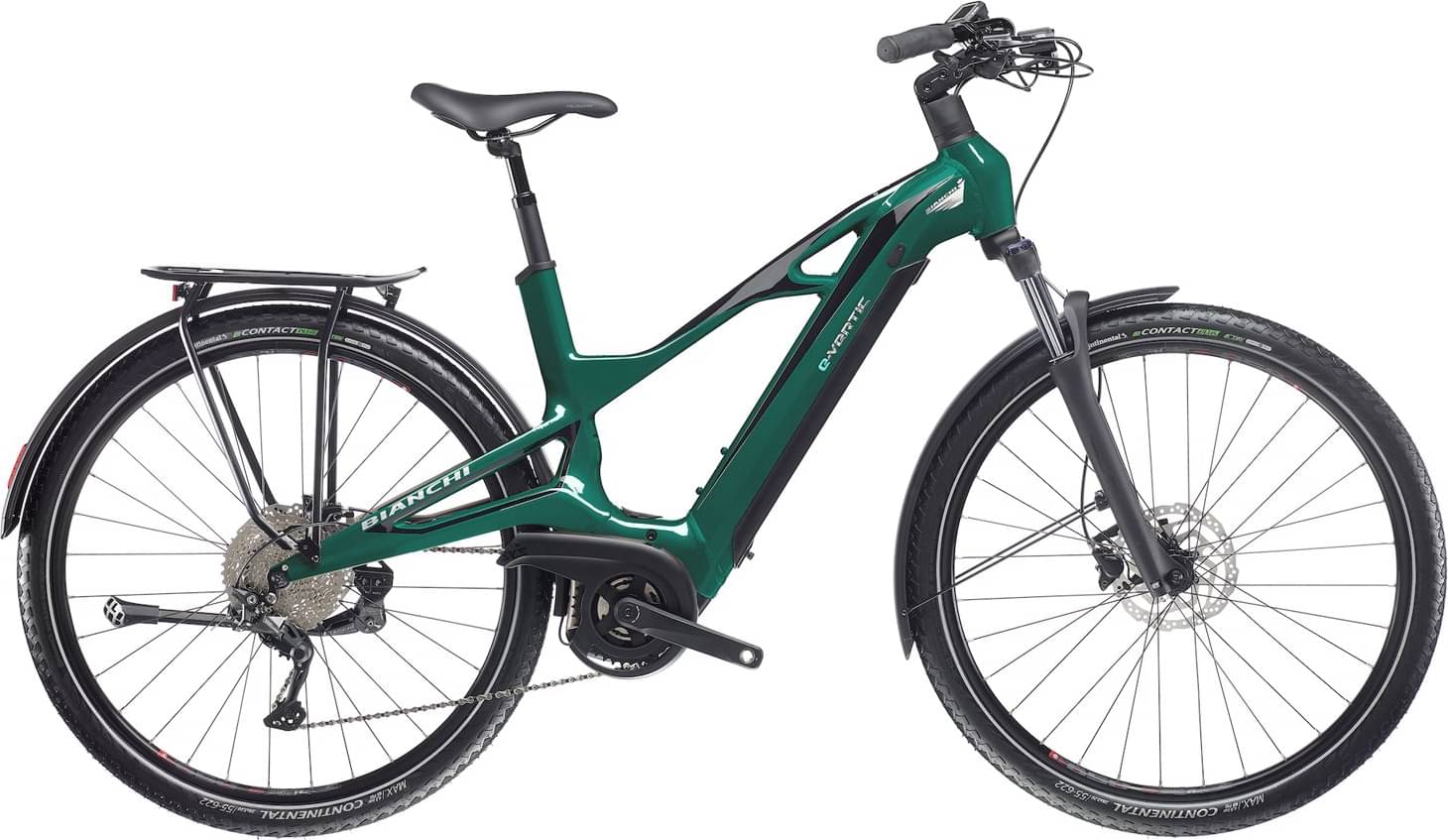

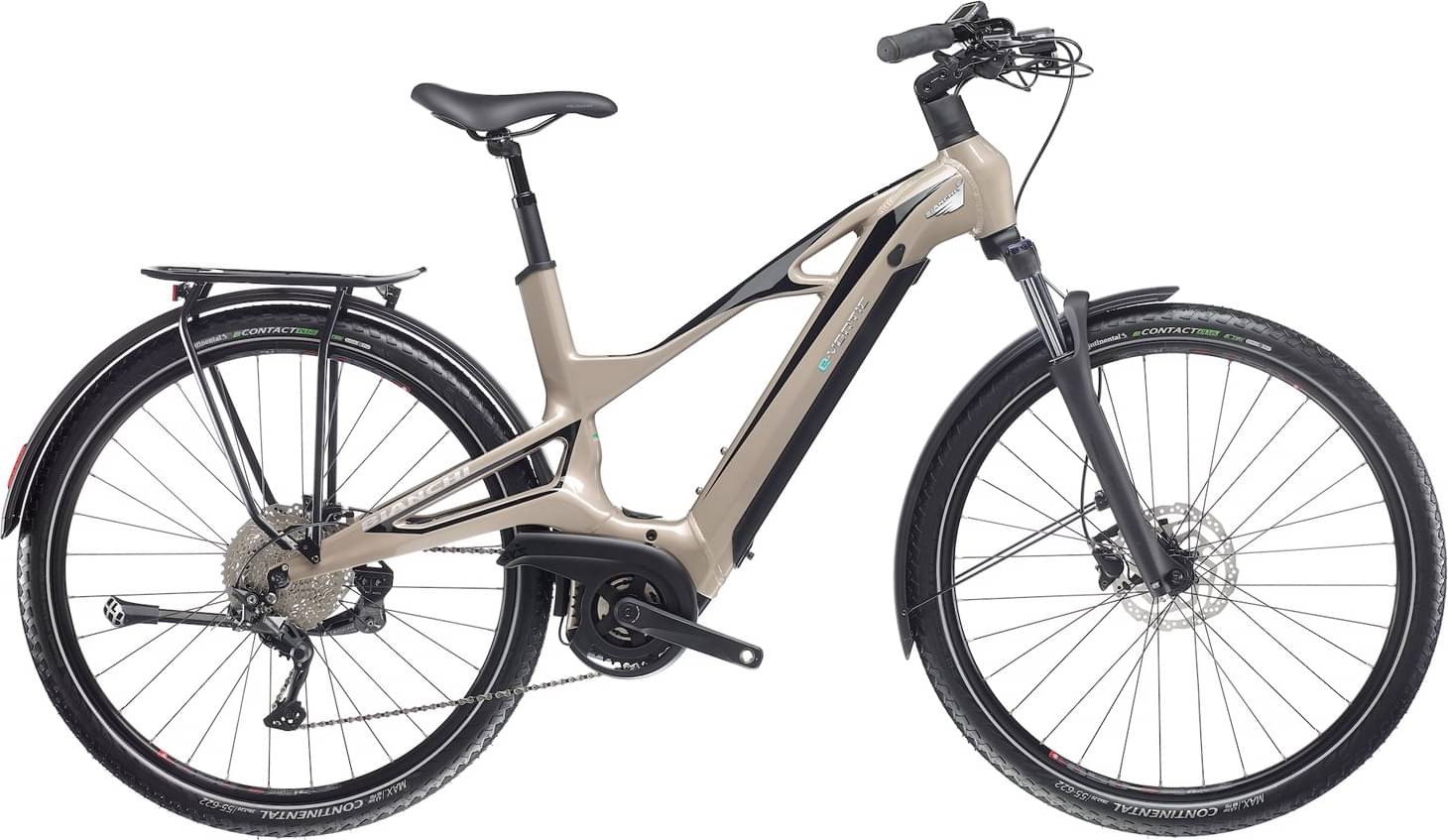

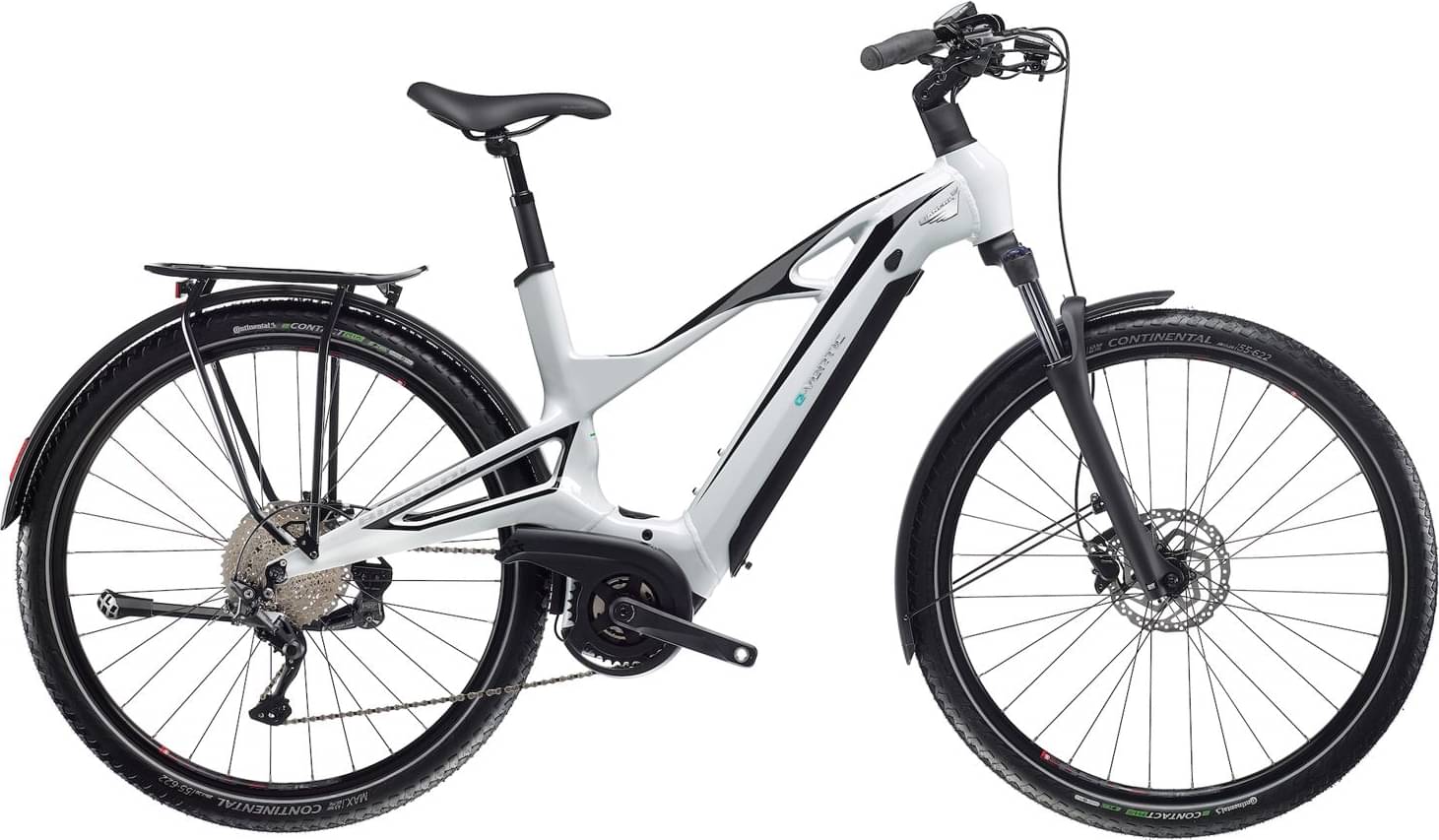

Bianchi e-Vertic T-Type Step-through X5 2023
2023 E-bike
Estimate price |
3,612$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Powertube 400wh integrated battery -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC T-Type Step-through ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type
Suspension Fork
Suntour 29", travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8"(TS), OLD 9-100, max rotor 180, post mount 160mm direct
Drivetrain
Rear Derailleur
SRAM RD X7 SHORT CAGE ALUMINUM 9sp
Shift Levers
SRAM X5 TRIGGER REAR 9sp BLK 2200MM CABLE
Crank
FSA E-Bike Diecast Crankset - CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring - 38T / w/HT Steel / ED / C.L. 50mm Bosch Gen3 Bolt - Bosch Gen3 crank bolt Black
Bottom Bracket
included in the motor
Chain
KMC e10S NPBK 1/2" x 11/128"
Wheels
Front Hub
Shimano, 32H OLD:100MM AXLE:108MM, FOR CENTER LOCK ROTOR, QR:133MM W/O ROTOR MOUNTCOVER
Rear Hub
Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER
Tires
Continental CONTACT Urban
Brakes
Brakes
Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE
Cockpit
Stem
Velomann, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
Handlebar
Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°
Grips
Herrmans, 130mm/130mm, d.22mm
Headset
Acros 1,5"" top / 1,5"" bottom - bearings - integrated cable routing 1 1/8“ crown race for ZS56 Head tube cover
Seat
Saddle
Velomann, black cover 8067 size 270x162mm, 385gr.
Seatpost
Velomann LT2 31.6*350 travel 50mm
Motor & Battery
Motor
Bosch Active Plus motor unit
Battery
Powertube 400wh integrated battery
Fit data

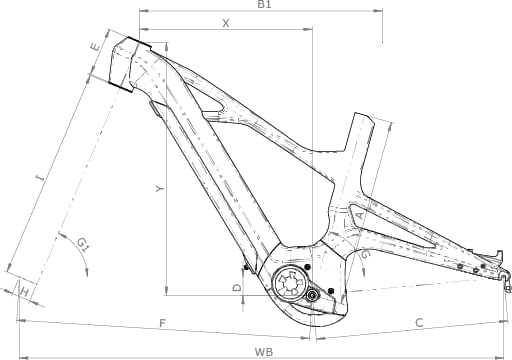

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.42 mm |
| Front Center | 723 mm | 745 mm | 766 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 621 mm | 630 mm | 644 mm |
| Reach | 422 mm | 440 mm | 455 mm |
| Top Tube Length | 595 mm | 616 mm | 634 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1191 mm | 1213 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
e-Vertic T-Type Step-through X5 is a Bianchi E E Vertic model. Bianchi launched 27 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bianchi e-Vertic C-Type X5 2023 is the most economical model, with a starting price of 3161$. Bianchi e-Vertic FX-Type Pro GX AXS 2023 on the other hand costs 9243$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3283$. Doing a quick comparison, we notice that e-Vertic T-Type Step-through X5 price is 27.79% more expensive than the average cost of a Commuter e-bike.
e-Vertic T-Type Step-through X5 components
Fork
The fork installed on this bike is the Suntour model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the e-Vertic T-Type Step-through X5 model has 700c wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The e-Vertic T-Type Step-through X5 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Bianchi e-Vertic T-Type Step-through X5 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
