Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JAB 29" SX, triple butted 6061 aluminum, 1.5" tapered HT, BSA 73mm, PM 160mm rotor compatible, 12x142mm thru-axle
Suspension Fork
Rock Shox Recon Gold RL 29", Solo Air spring, 100mm, OneLoc remote, tapered steer, 15mm Maxle Lite, 46mm offset, external rebound adjust
Drivetrain
Rear Derailleur
Shimano XT M8000GS, 11-speed
Front Derailleur
Shimano SLX M7025-11-D, 11-speed
Shift Levers
Shimano SLX M7000, 11-speed
Cassette
Shimano SLX M7000, 11-speed, 11-42T
Crank
Shimano SLX M7000, 11-speed, 36/26T
Bottom Bracket
Shimano
Chain
KMC X11, 11-speed
Pedals
Included
Wheels
Front Hub
Formula CL-71, 32-hole, 15x100 thru-axle, sealed bearings
Rear Hub
Formula CL-400, 32-hole, 12X142mm thru-axle, sealed bearings
Rims
WTB XC21 TCS 29", tubeless ready, 32-hole
Tires
Kenda Small Block Eight Sport, 29x2.10
Brakes
Brakes
Shimano M425
Disk Rotors
Shimano RT30 CL 180mm front & 160mm rear
Cockpit
Stem
TEC Obvius, 31.8mm bar clamp, 3D forged alloy 6061
Handlebar
TEC Obvius, 700mm, 31.8mm, DB Alloy 6061-T6
Headset
Orbit 1.5E ZS
Seat
Saddle
Selle San Marco Era Startup
Seatpost
TEC Obvius, aluminum, forged head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.563 mm | 1.502 mm | 1.449 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 403 mm | 422 mm | 441 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

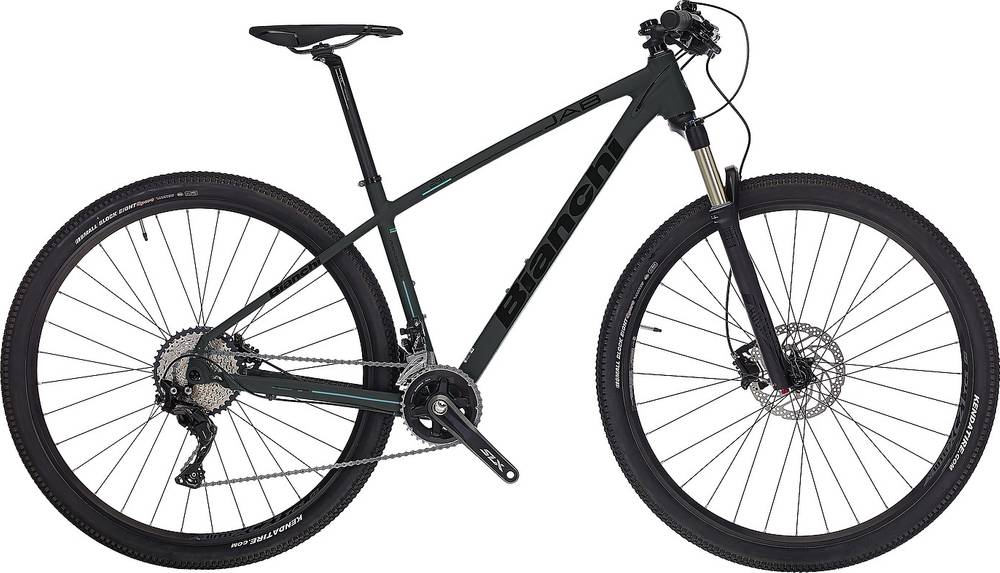

Jab 29.1 is a Bianchi Jab model. There are 4 bikes that carry this model name. You can easily view all of the Bianchi Jab bikes models from 2017, here.
Model range prices
The most economical model, the Bianchi Jab 29.3 2017 has a starting price of 1249$. Bianchi Jab 29.1 2017 on the other hand is the most expensive at 1699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2017 and its price was 1699$. If we compare this with the average Crosscountry bike cost we notice that the price is 12.12% lower.
Jab 29.1 components
Fork
The Jab 29.1 comes factory-installed with the RockShox Recon Gold RL fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Jab 29.1 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Bianchi Jab 29.1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
