Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2, Ultegra -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86,5x41, flat mount brakes, thru axle 12x142mm sizes 47-50-53-55-57-59cm
Suspension Fork
Full Carbon aero, disc brakes integrated head
Drivetrain
Rear Derailleur
Shimano 105 12sp,RD-R7150, top normal shadow design, direct attachment, W/TL-EW300
Front Derailleur
Shimano 105 Di2 12sp FD-R7150, 105 Di2, brazed-on type, down swing, top gear 50-52T, for rear 12-speed
Shift Levers
Shimano 105 Di2 hydraulic disc brake for road
Crank
Shimano 105 12sp, FC-R7100, Ultegra hollowtech 2, 50x34T w/o BB parts, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm
Bottom Bracket
Shimano SM-BB72-41B, press fit for road, right & left adapter, bearing, inner cover
Chain
Shimano 105 12sp
Wheels
Rear Hub
Aluminium alloy 6061, width: 100-142 mm, sealed cartridge bearings, Brake interface: Center Lock
Rims
Velomann V50R, 50mm profile front and rear, weight per set 1630g, ASTM 2, UD carbon fiber, tyre compatibility: tubeless ready and clincher, internal width: 21 mm, rear hub compatible with FW HG / FW XDR
Tires
Pirelli P7, 700 x 28c, 60TPI, Nylon breaker, Folding, full Black colour
Brakes
Brakes
Shimano BR-R7170 Hydraulic disc brake included in the shifter
Cockpit
Stem
Velomann Aero stem, material alloy, Oversize, 1.1/8"", size: 90-47/50cm, 100-53cm, 110-55/57cm, 120mm-59cm w/Oltre custom top cap stem cover w/magnet
Handlebar
Velomann Aero Compact handlebar, alloy diam. 31,8mm, reach 70mm, drop 120mm, Size: 400mm-47/53cm, 420mm-55/59cm
Grips
Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm with 4 line hole Black/Celeste color and VLP-56 BK plug
Headset
Fsa ACB 1.5"" 51.8x40x8
Seat
Saddle
Velomann Mitora, weight 215g, Lenght: 250mm, Wide: 139mm
Seatpost
Velomann Oltre Full Carbon Aero special dimension, 20mm offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm
Fit data

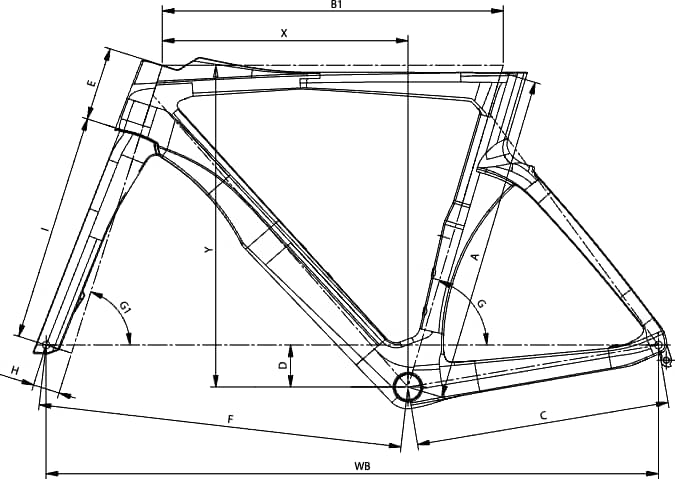

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.22 mm | 1.22 mm | 1.28 mm | 1.31 mm | 1.33 mm | 1.37 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 581 mm | 582 mm | 588 mm | 593 mm | 603 mm |
| Rake | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm |
| Trail | 73 mm | 68 mm | 64 mm | 62 mm | 58 mm | 59 mm |
| Stack | 469 mm | 477 mm | 503 mm | 519 mm | 535 mm | 554 mm |
| Reach | 384 mm | 391 mm | 392 mm | 396 mm | 401 mm | 405 mm |
| Top Tube Length | 514 mm | 524 mm | 535 mm | 549 mm | 559 mm | 574 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 83 mm | 88 mm | 103 mm | 118 mm | 133 mm | 153 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 411 mm | 411 mm |
| Wheelbase | 981 mm | 982 mm | 983 mm | 987 mm | 995 mm | 1004 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Oltre Comp 105 Di2 is part of the Bianchi Oltre model. 88 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bianchi Oltre Race 105 2023 is the most affordable bike of this model and has a price of 3648$. On the other hand, Bianchi Oltre RC, Tour de France Limited Edition Durace Di2 2023, is the most expensive and costs 16800$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5716$. In conclusion, this bike price is 35.74% more expensive than the price of the average Aero bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Oltre Comp 105 Di2 are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bianchi Oltre Comp 105 Di2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
