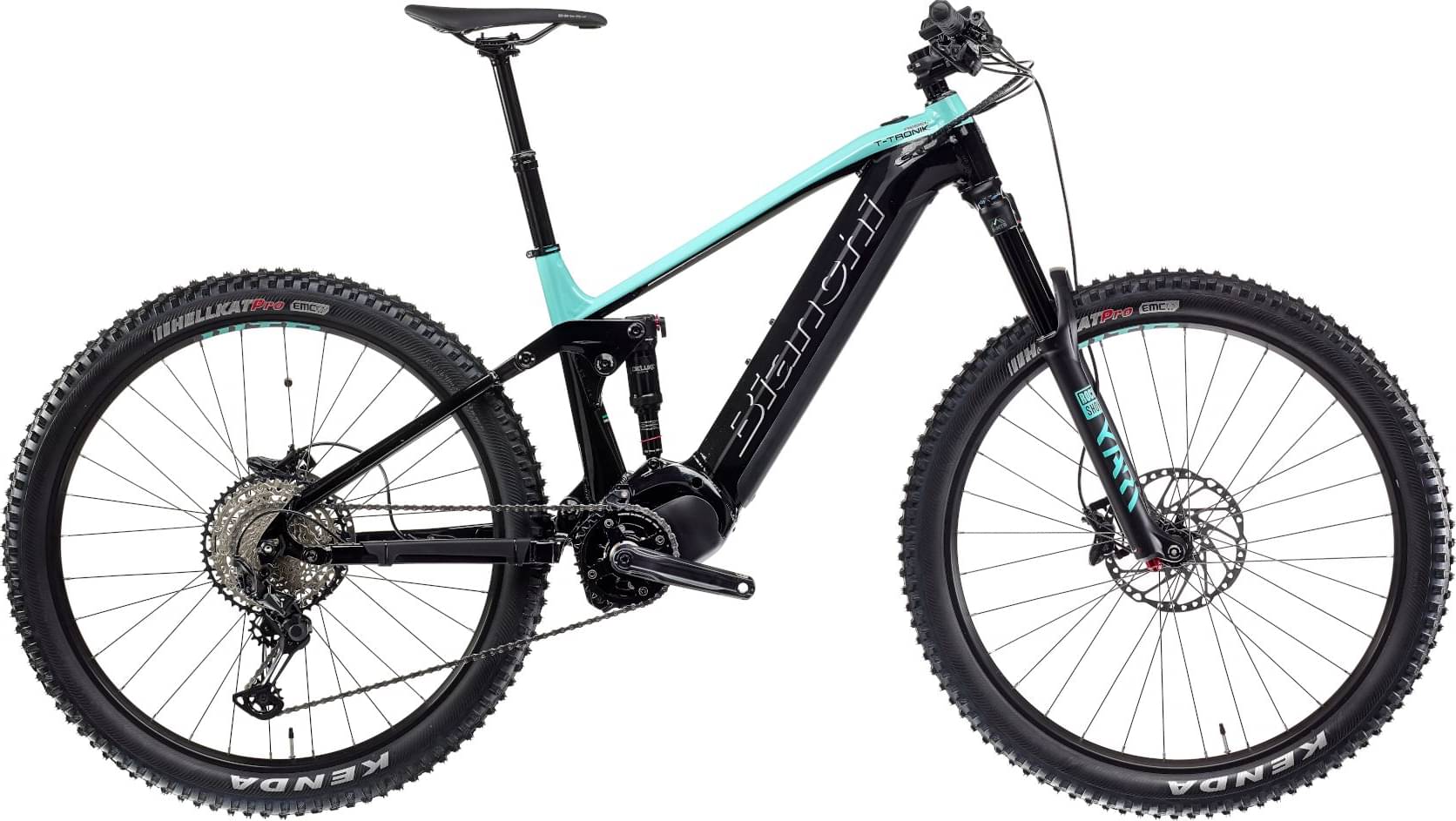

Bianchi T-Tronik Rebel 9.1 – XT/DEORE 2022

2022 E-bike
Estimate price | 6,272$
E-bike
Open compare Use advisor
Bianchi T Tronik Rebel 9.1 Xtdeore 2022

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame aluminium
  • Wheels 29"
  • Travel Front 150mm
  • Travel Rear 140mm
  • Fork RockShox Yari RC
  • Groupset XT, Deore
  • Suspension Full
  • Motor Shimano 250W 85Nm mid-drive
  • Battery Darfon 630Wh
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

T-Tronik Rebel 140mm alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31,6mm, seat clamp diam. 34.9mm, PM 160mm dropout thru axle 12x148mm, internal cable routing, sizes 38-43-48-53cm

Suspension Fork

Rock Shox YARI RC 29B" Solo Air, 150mm

Rear Shock

Rock Shox Deluxe Select+ RL

Drivetrain

Rear Derailleur

Shimano XT RD-M8100-SGS Shadow Design + 12sp

Shift Levers

Shimano Deore SL-M6100-IR 1x12sp

Cassette

Shimano CS-M7100-12, 10-51T

Crank

Fsa Forged Alu crank length:165 mm

Bottom Bracket

Included w/motor unit

Chain

Shimano CN-M6100, 12sp

Wheels

Rear Hub

Shimano FH-MT410-B

Rims

WTB KOM Trail i30 TCS 2.0 29"

Tires

Kenda Hellkat 29x2.6

Brakes

Brakes

Shimano BR-M6120

Brake Levers

Shimano BL-M6100

Disk Rotors

Shimano SM-RT64 Front & RT-EM600 Rear, diam. 203mm

Cockpit

Stem

Tec Obvius, 0°, 1.1/8", diam. 31.8mm, ext: 55mm

Handlebar

Tec Obvius rise, AL6061-T6 double butted, width 780mm, diam. 31.8mm, 15mm rise, 9° backsweep

Grips

T-One Rock T-GP34

Headset

Fsa Orbit 1.5 ZS

Seat

Saddle

Velomann 1285URN, manganese rail, lenght 277mm x width 144mm

Seatpost

Dropper seatpost, diam 31.6mm, internal remote cable routing w/remote, travel: 100mm-15'', 125mm-17'', 150mm-19/21''

Motor & Battery

Motor

SHIMANO EP8 MOTOR UNIT W/DU-EP800 DRIVE UNIT, SPEED SENSOR

Battery

Darfon 630Wh

About this model

T-Tronik Rebel 9.1 – XT/DEORE completes the Bianchi E T Tronik model. 37 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.

Model range prices

Bianchi T-Tronik C-Type Sunrace X5 2022 is the most economical model, with a starting price of 2760$. Bianchi T-Tronik Performer 9.1 – XTR/XT 1X12 2022 on the other hand costs 8685$, and is the most expensive model.

Safety

Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.

Average price for Trail e-bikes

Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.

At the moment of the release date, Bianchi T-Tronik Rebel 9.1 – XT/DEORE price was 5806$. Comparing the average cost of a Trail e-bike to this one, you will see that T-Tronik Rebel 9.1 – XT/DEORE price is 72.54% higher.

Internal Cable Routing

This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.

Overview of components

Fork

Bianchi T-Tronik Rebel 9.1 – XT/DEORE 2022 e-bike is equipped with the RockShox Yari RC fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

Rear Shock

The T-Tronik Rebel 9.1 – XT/DEORE has a rear shock with a travel of 140mm. The model Rock Shox Deluxe Select+ RL is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.

Wheels size

The wheels on T-Tronik Rebel 9.1 – XT/DEORE are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The T-Tronik Rebel 9.1 – XT/DEORE comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.

Sizes

This e-bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.

Dropper post

A dropper post is included with the T-Tronik Rebel 9.1 – XT/DEORE. Therefore, climbing or descending will be a breeze.
