Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EP8 motor unit w/DU-EP800 drive unit, speed sensor w/ Darfon 630Wh integrated battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik Rebel FS 140mm alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31,6mm, seat clamp diam. 34.9mm, PM 160mm dropout thru axle 12x148mm, internal cable routing, sizes 38-43-48-53cm
Suspension Fork
Rock Shox Recon Silver RL 29B" Solo Air, 140mm
Rear Shock
Rock Shox Deluxe Select+ RL
Drivetrain
Rear Derailleur
SRAM NX Eagle 12sp
Shift Levers
SRAM SX Eagle 12sp
Cassette
SRAM PG1210 12sp, 11-50T
Crank
Fsa Forged Alu, crank length:165 mm w/34T Eagle chainring
Bottom Bracket
Included w/motor unit
Chain
SRAM SX Eagle 12sp
Wheels
Front Hub
Formula DC-511
Rear Hub
Formula DC-3248
Rims
Wtb ST Light i30 TCS 2.0 29"
Tires
Kenda Hellkat 29x2.6
Brakes
Brakes
SRAM Guide T, 4 pistons
Disk Rotors
SRAM Centerline, 200mm front & rear, Center Lock
Cockpit
Stem
Tec Obvius, 0°, 1.1/8", diam. 31.8mm, ext: 55mm
Handlebar
Tec Obvius rise, AL6061-T6 double butted, width 780mm, diam. 31.8mm, 15mm rise, 9° backsweep
Grips
T-One Rock T-GP34
Headset
Fsa Orbit 1.5 ZS
Seat
Saddle
Tec Rector, Steel rails
Seatpost
Dropper seatpost, diam 31.6mm, internal remote cable routing w/remote, travel: 100mm-15'', 125mm-17'', 150mm-19/21''
Motor & Battery
Motor
Shimano EP8 motor unit w/DU-EP800 drive unit, speed sensor w/ Darfon 630Wh integrated battery
Battery
Shimano EP8 motor unit w/DU-EP800 drive unit, speed sensor w/ Darfon 630Wh integrated battery
Model Overview

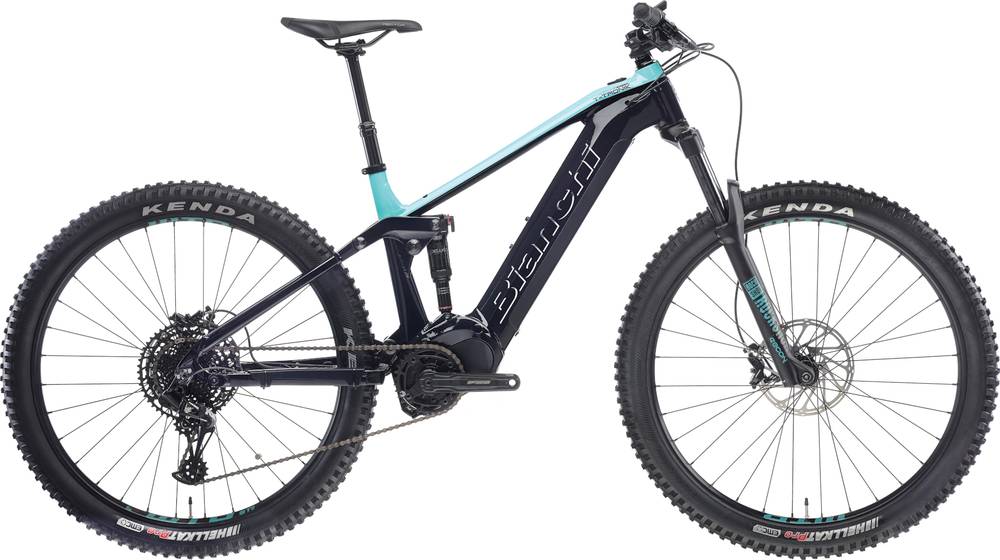

T-Tronik Rebel 9.2 – NX/SX Eagle completes the Bianchi E T Tronik model. 37 e-bikes variations carry this model name so far. You can easily view all of the Bianchi E T Tronik e-bikes models from 2019, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The T-Tronik Rebel 9.2 – NX/SX Eagle comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bianchi T-Tronik Rebel 9.2 – NX/SX Eagle e-bike has the Rock Shox Deluxe Select+ RL model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the T-Tronik Rebel 9.2 – NX/SX Eagle model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The T-Tronik Rebel 9.2 – NX/SX Eagle comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Bianchi T-Tronik Rebel 9.2 – NX/SX Eagle 2019 is available in one size only. In short, make sure you double-check if it fits you.
Dropper post
Bianchi T-Tronik Rebel 9.2 – NX/SX Eagle includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
