Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Phylion BN21S 522Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik Sport HT, alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31.6mm, seatpost clamp diam. 34.9mm, PM 160mm, Boost dropout QR 12x141mm, internal cable routing, sizes 38-43-48-53cm
Suspension Fork
SR Suntour XCR34 AIR Boost LOR DS 29" 120mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120 SGS 10sp
Shift Levers
Shimano Deore SL-M4100-R 1x10sp
Cassette
Shimano Deore CS-M4100-10, 10sp, 11-46T
Crank
Fsa Alu, crank length:165 mm, w/Fsa e-bike specific 34T chainring
Bottom Bracket
Included w/motor unit
Chain
Kmc X10eS EPT finish
Wheels
Front Hub
Shimano HB-MT400-B
Rear Hub
Shimano FH-MT200-B
Rims
Wtb XC25 TCS rim Tubeless Ready 29"
Tires
Kenda Slant Six Sport 29x2.35
Brakes
Brakes
SHIMANO BR-MT410
Brake Levers
Shimano BL-MT401
Disk Rotors
Shimano SM-RT10, diam. 180mm
Cockpit
Stem
Velomann +/-7°, 1.1/8", diam.31.8mm, ext: 60mm-15/17/18", 70mm-21", 3D forged alloy 6061
Handlebar
Velomann Rise, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy 6061-T6
Grips
T-One Rock T-GP34
Headset
Fsa Orbit 1.5 ZS
Seat
Saddle
Velomann 2058DRN, 140mm width, Steel rails black, PVC soft touch 7723
Seatpost
Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft
Motor & Battery
Motor
SHIMANO E7000 MOTOR UNIT, DU-E7000 DRIVE UNIT, W/SC-E7000 CYCLE COMPUTER, W/SPEED SENSOR
Battery
Phylion BN21S 522Wh
About this model

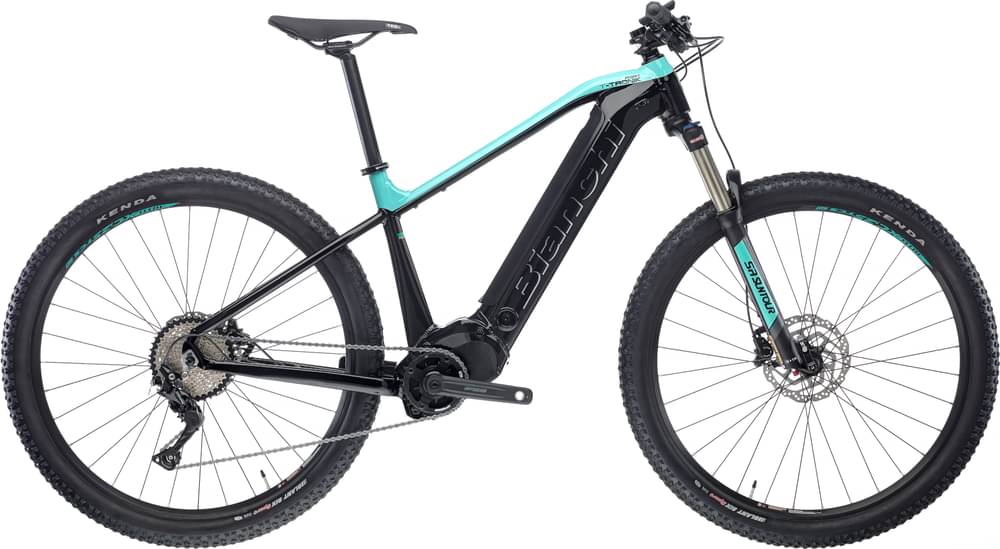

T-Tronik Sport 9.1 Deore belongs to the Bianchi E T Tronik model. There are 37 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The T-Tronik Sport 9.1 Deore comes factory-installed with the SunTour XCR 34 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The T-Tronik Sport 9.1 Deore 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The T-Tronik Sport 9.1 Deore comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Bianchi T-Tronik Sport 9.1 Deore 2021 is available in one size only. In short, make sure you double-check if it fits you.
