Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Phylion BN21S 522Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik Sport HT, alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31.6mm, seatpost clamp diam. 34.9mm, PM 160mm, Boost dropout QR 12x141mm, internal cable routing, sizes 38-43-48-53cm
Suspension Fork
SR Suntour XCM32 Boost NLO DS 29" 120mm
Drivetrain
Rear Derailleur
SRAM RD X7 9SP
Shift Levers
SRAM X5 TRIGGER REAR 9sp
Cassette
SRAM CS PG 920 11-34 9SP
Crank
Fsa Alu, crank length:165 mm, w/Fsa e-bike specific 34T chainring
Bottom Bracket
Included w/motor unit
Chain
Kmc E9s, 9sp
Wheels
Front Hub
Shimano HB-MT400-B
Rear Hub
Shimano FH-MT200-B
Rims
Wtb XC25 TCS rim Tubeless Ready 29"
Tires
Kenda Slant Six Sport 29x2.35
Brakes
Brakes
Shimano BR-MT200
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Velomann +/-7°, 1.1/8", diam.31.8mm, ext: 60mm-15/17/18", 70mm-21", 3D forged alloy 6061
Handlebar
Velomann Rise, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy 6061-T6
Grips
T-One Rock T-GP34
Headset
Fsa Orbit 1.5 ZS
Seat
Saddle
Velomann 2058DRN, 140mm width, Steel rails black, PVC soft touch 7723
Seatpost
Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft
Motor & Battery
Motor
SHIMANO E7000 MOTOR UNIT, DU-E7000 DRIVE UNIT, W/SC-E7000 CYCLE COMPUTER, W/SPEED SENSOR
Battery
Phylion BN21S 522Wh
About this model

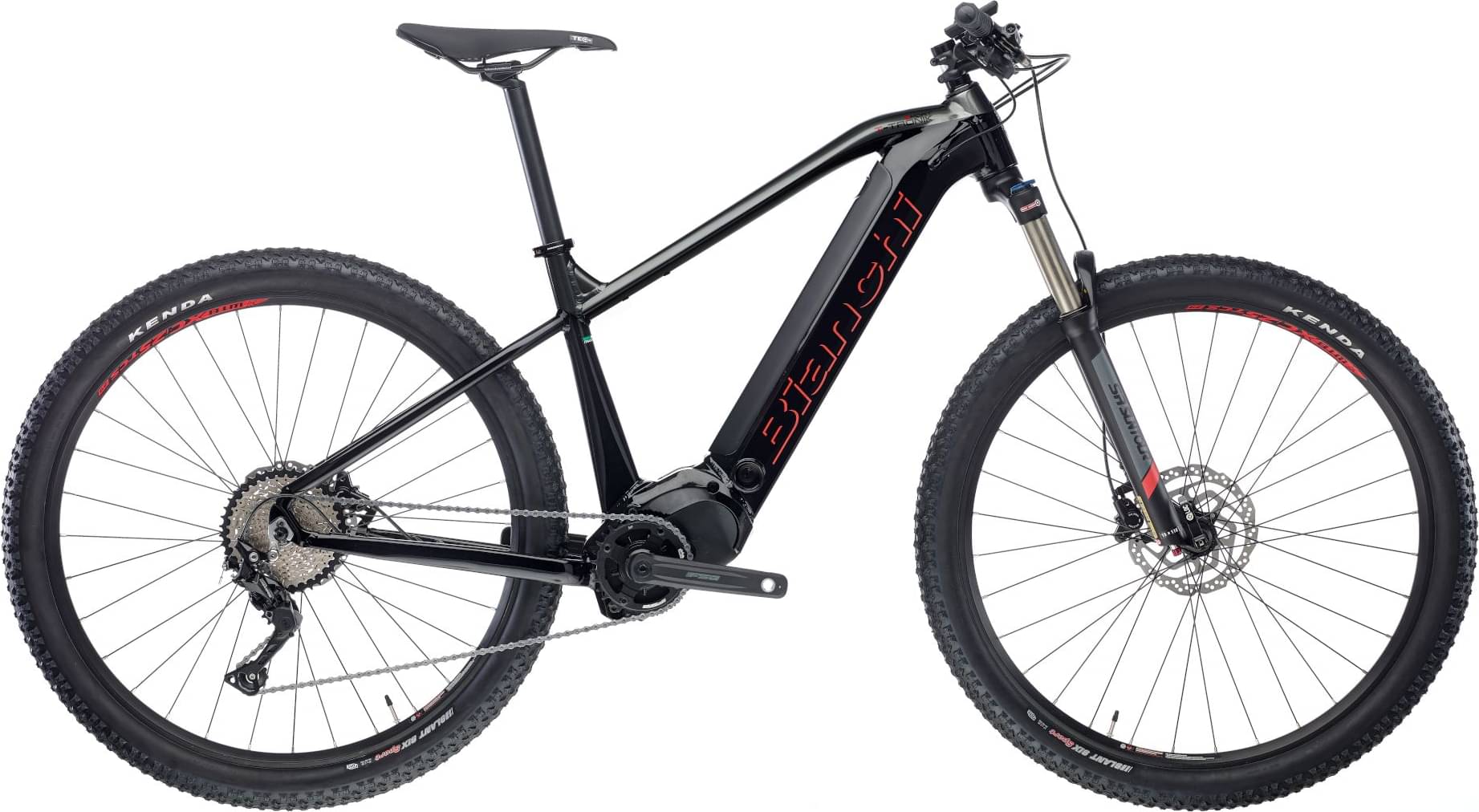

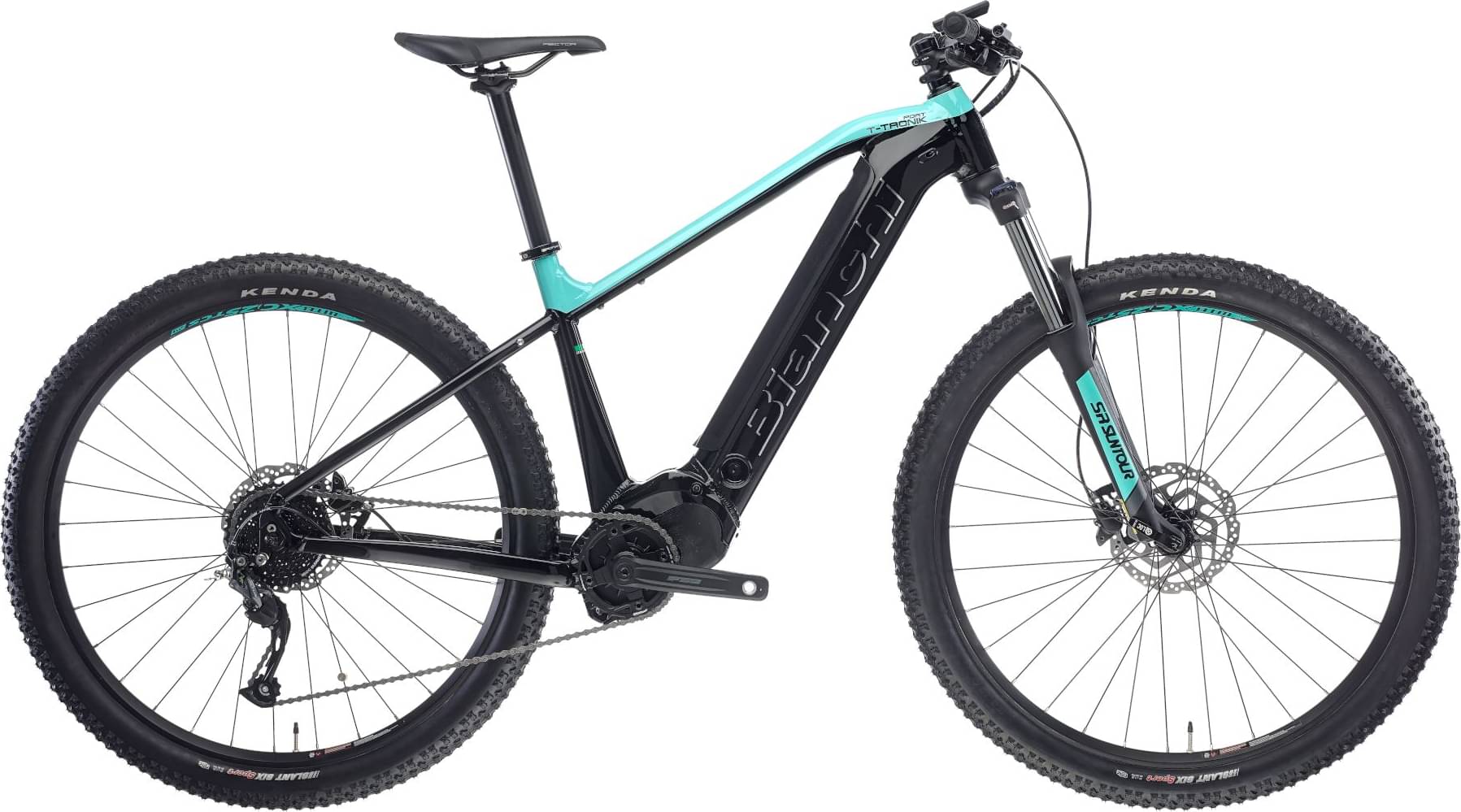

T-Tronik Sport 9.2 Altus is part of the Bianchi E T Tronik model. Bianchi released 37 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Bianchi T-Tronik C-Type 2023 has a starting price of 2700$. Bianchi T-Tronik Sport 9.1 Deore 2023 on the other hand is the most expensive at 4350$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness e-bikes
Our math shows that the average cost of a dependable Fitness e-bike is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
T-Tronik Sport 9.2 Altus components
Fork
The T-Tronik Sport 9.2 Altus comes factory-installed with the Suntour XCM fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the T-Tronik Sport 9.2 Altus e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.

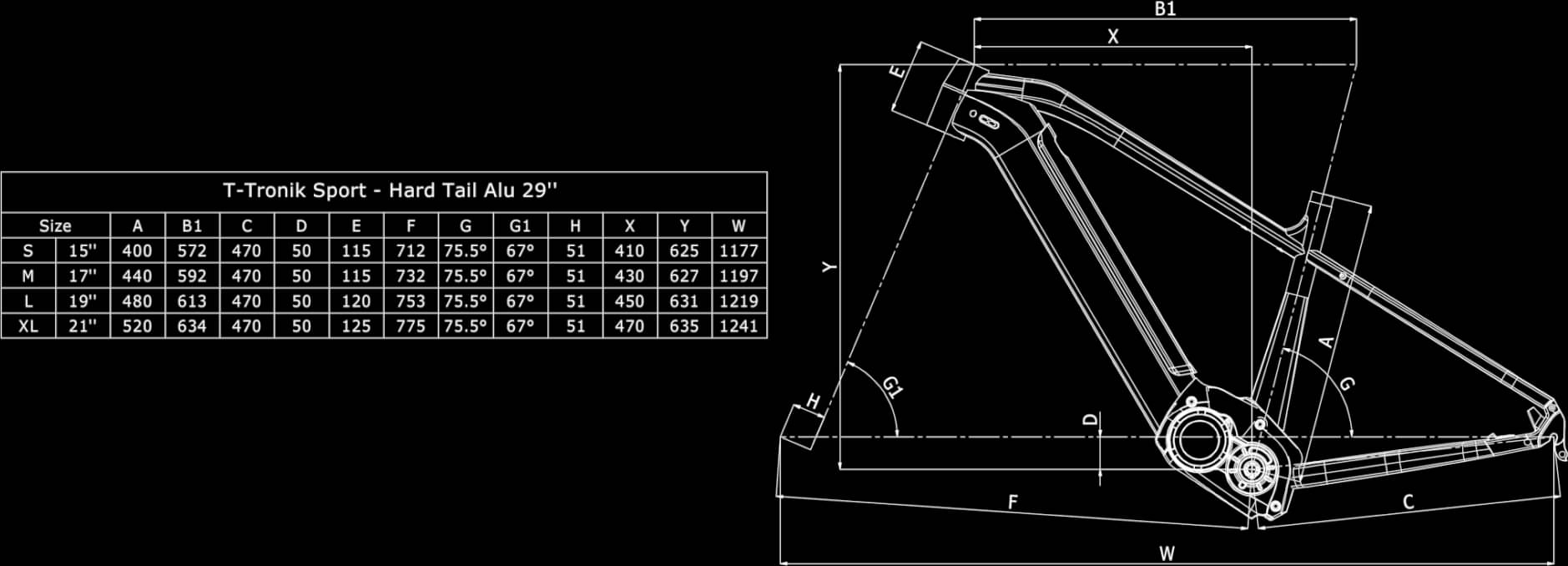

Sizes
Bianchi T-Tronik Sport 9.2 Altus 2023 is available in one size only. In short, make sure you double-check if it fits you.
