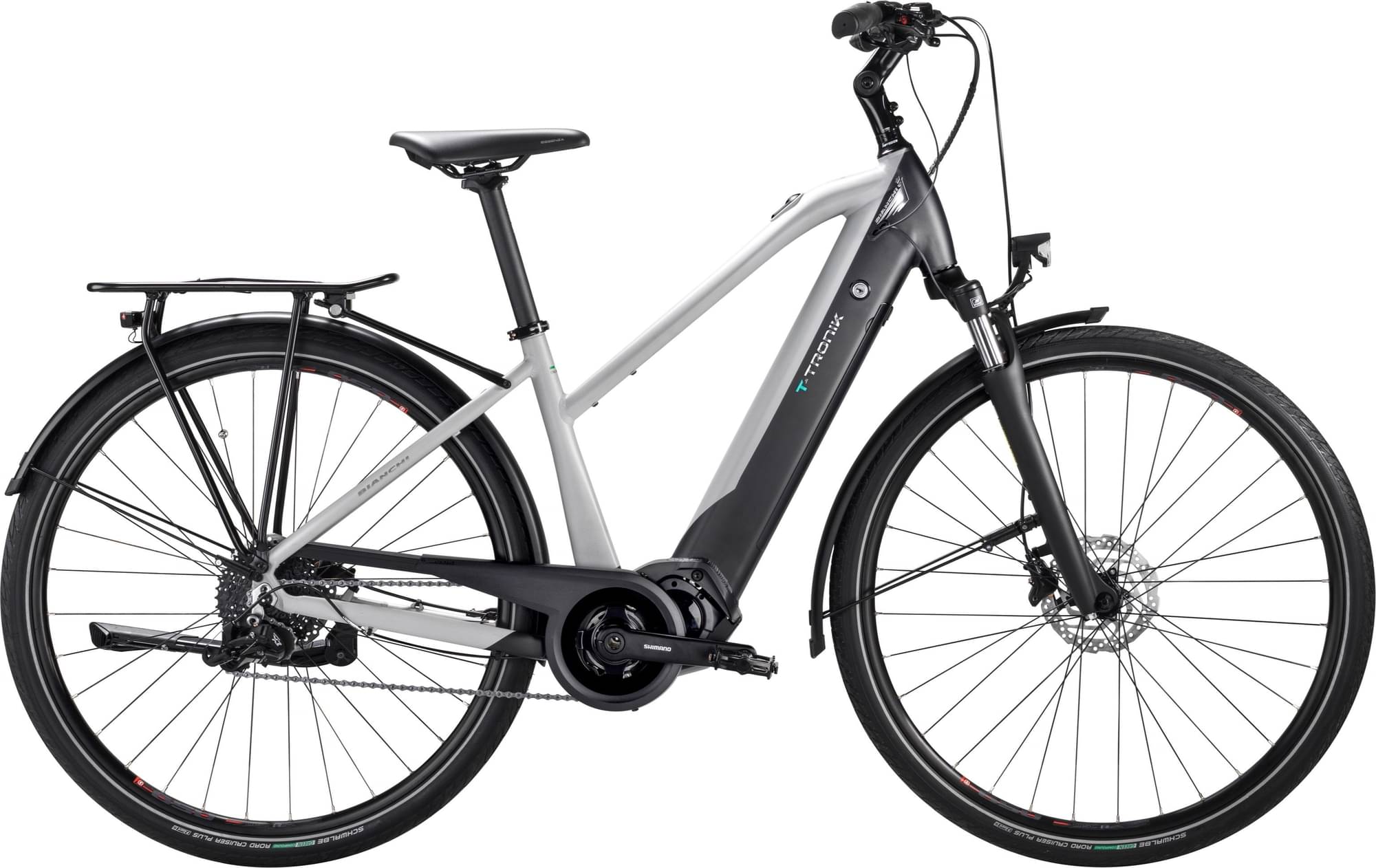

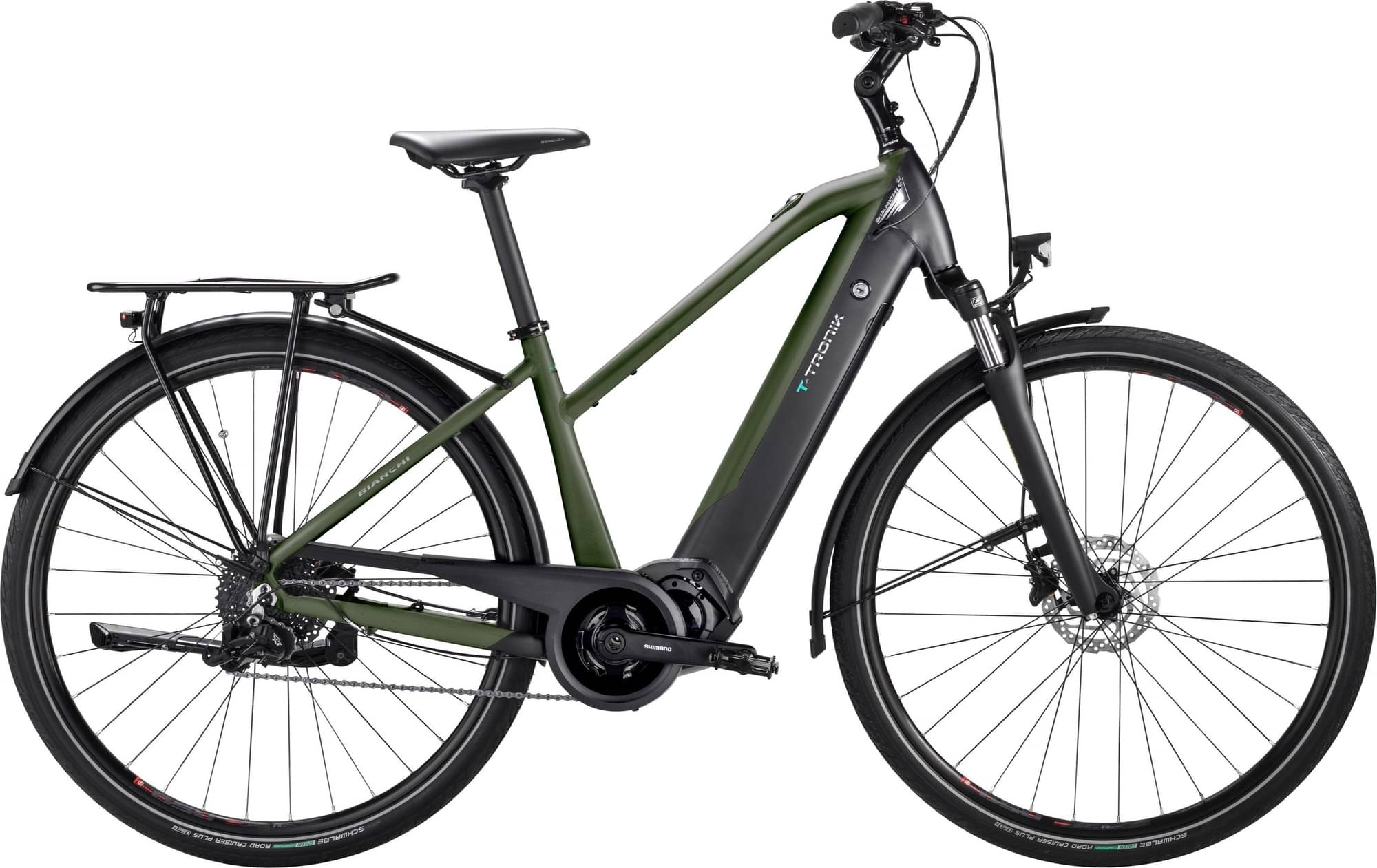

Bianchi T-Tronik T-Type Sunrace Step-through X5 2023
2023 E-bike
Estimate price |
2,700$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SunRace, X5 -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery 417Wh Phylion integrated battery -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

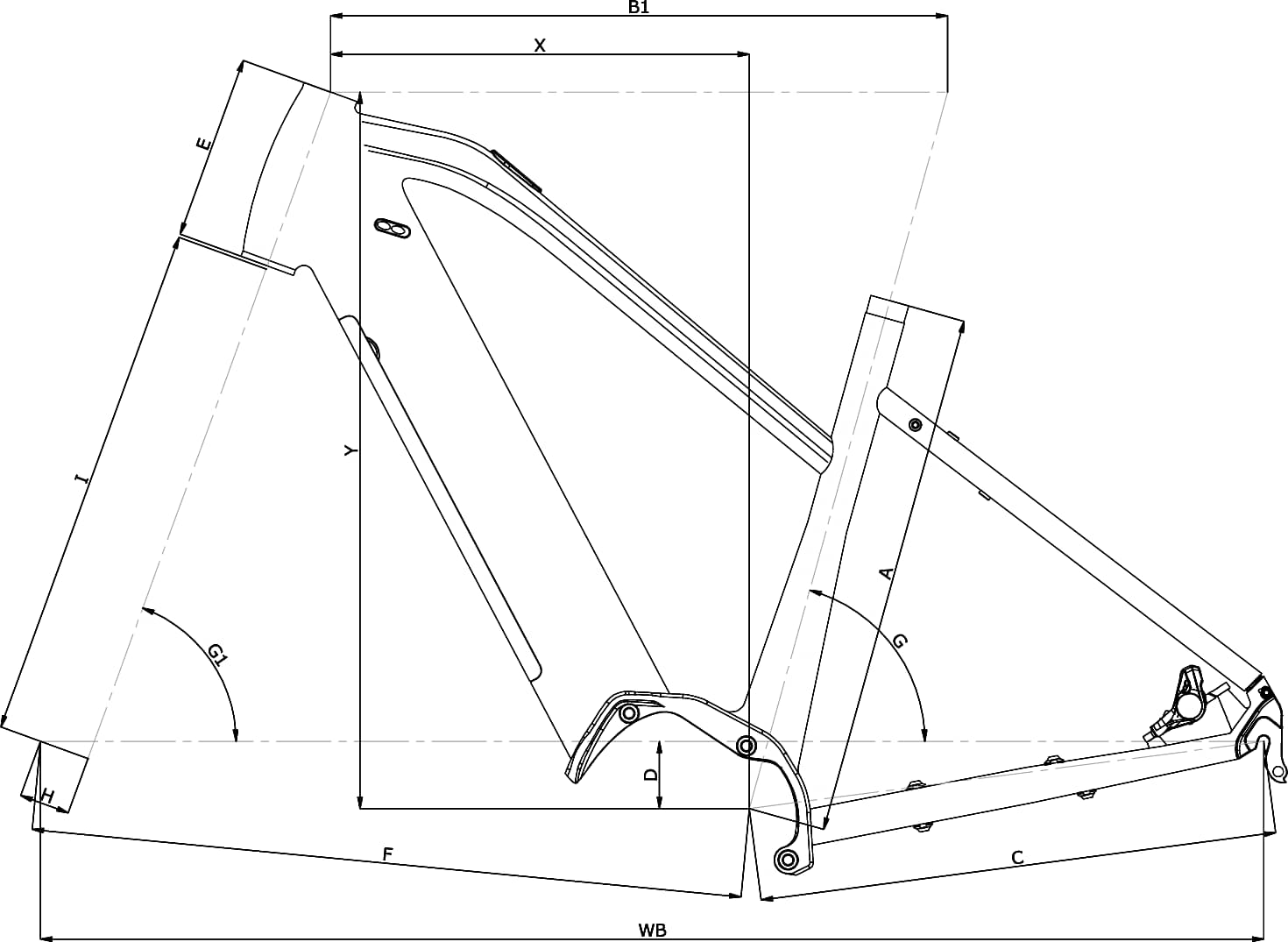

T-Tronik T-Type Frame 28" Tourer Step-through, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47
Suspension Fork
"Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick relase type"
Drivetrain
Rear Derailleur
Sunrace, 9sp, max 42T
Shift Levers
SRAM X5 1x9sp
Crank
Shimano FC-E6100, 170MM CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
Bottom Bracket
included in the motor
Chain
KMC E9s EPT
Pedals
VP black aluminum, w/reflector
Wheels
Tires
Chaoyang E-Liner City 700x45C, 60tpi
Brakes
Brakes
Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter
Cockpit
Stem
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Grips
Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm
Headset
FSA 1.1/8" 44H-N10P
Seat
Saddle
Selle Royal, Essenza
Seatpost
Velomann, lenght 350mm, diam.31,6mm, 0mm seatback, Al2014 shaft + alloy head
Motor & Battery
Motor
Shimano E6100 250W, torque 60Nm
Battery
417Wh Phylion integrated battery
Model Overview
T-Tronik T-Type Sunrace Step-through X5 belongs to the Bianchi E T Tronik model. Bianchi launched 37 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bianchi T-Tronik C-Type 2023 is the most affordable e-bike of this model and has a price of 2700$. On the other hand, Bianchi T-Tronik Sport 9.1 Deore 2023, is the most expensive and costs 4350$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 2700$. Comparing the average cost of a Commuter e-bike to this one, you will see that T-Tronik T-Type Sunrace Step-through X5 price is 5.1% more expensive.
T-Tronik T-Type Sunrace Step-through X5 components
Fork
The T-Tronik T-Type Sunrace Step-through X5 comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Bianchi T-Tronik T-Type Sunrace Step-through X5 2023, has a 700c model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The T-Tronik T-Type Sunrace Step-through X5 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This e-bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
