Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eTOURING CONCEPT, ALLOY 6061, 700C
Suspension Fork
SUNTOUR MOBIE A32 COIL, 700C, TAPERED, 75mm TRAVEL, LOCKOUT
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift Levers
SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY
Cassette
SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Crank
SHIMANO STEPS FC-EM600, 38 TEETH
Bottom Bracket
STEPS, press-fit
Chain
KMC E10T EPT, TURBO POWER
Pedals
VP 831, INLEAD GRIP TREAD
Wheels
Front Hub
SHIMANO HB-MT410, 32 HOLES, 15x100mm THRU AXLE
Rear Hub
SHIMANO FH-RM35, 32 HOLES, QR
Rims
ALEXRIMS DM-21, 32 HOLES, INNER WIDTH 21mm, 700C
Tires
SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Brakes
Brakes
SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar
BIXS HB-RB12L RIZER BAR, 720mm, 15°ANGLE, 15mm RISE, 31.8mm
Seat
Saddle
BIXS VL-3534
Seatpost
BIXS SP-3D2, 48cm: 350mm, OTHERS: 400mm, 31.6mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 500Wh
Fit data

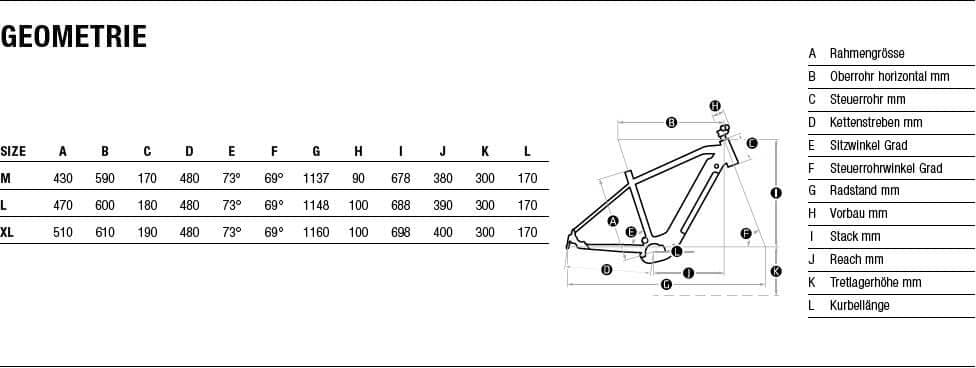

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
CAMPUS-E30 is part of the Bixs E Campus E30 model. BiXS released 3 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BiXS CAMPUS-E30 2023 is the most economical model, with a starting price of 4551$. BiXS CAMPUS-E30 DI 2023 on the other hand costs 4551$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 4551$. If we compare this with the average Commuter e-bike cost we notice that the price is 77.15% higher.
Overview of components
Fork
The CAMPUS-E30 comes factory-installed with the Suntour MOBIE fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, BiXS CAMPUS-E30 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
