Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRAIL GEOMETRY, CARBON, ALLOY ROCKER. 120mm TRAVEL, 29"
Suspension Fork
FOX 34 FLOAT RHYTHM 29", 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 130mm, SWEEP ADJUST LEVER
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO DEORE FC-6100, 32 TEETH
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 15mm THRU AXLE
Rear Hub
DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Rims
DT SWISS WHEELSET SPLINE M-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"
Tires
ONZA, PORCUPINE AM 29x2.40 TRC 60 Kevlar
Brakes
Brakes
SHIMANO DEORE BR-M6120/BR-M6100, HYDRAULIC DISC BRAKE WITH RESIN PADS, 180mm ROTORS
Brake Levers
SHIMANO BL-M6100, ISPEC EV
Cockpit
Stem
RACE FACE AEFFECT R, 0°ANGLE, 35MM CLAMP
Handlebar
RACE FACE AEFFECT, 760MM, 20MM RISE, 8° BACKSWEEP, 35MM
Seat
Saddle
BIXS VL-1A47
Seatpost
KIND SHOCK LEV SI, M & L: 125MM, XL: 150MM TRAVEL, SHIMANO REMOTE LEVER, 31.6MM
Fit data

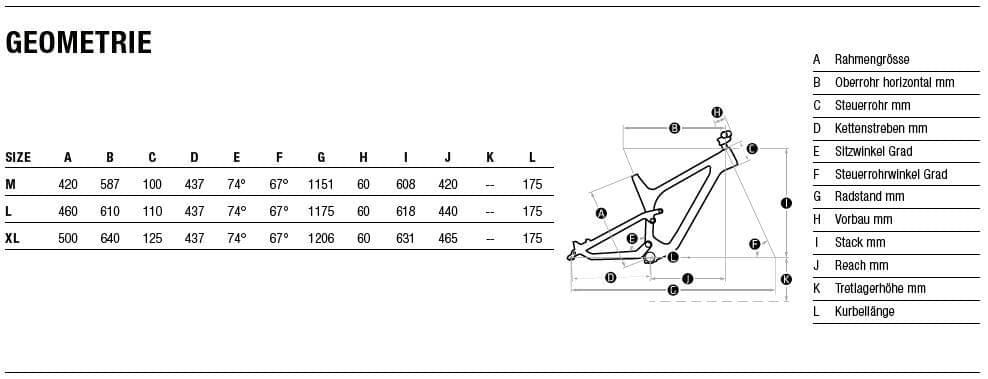

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
SIGN 220 is a Bixs Sign model. BiXS launched 9 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BiXS SIGN 520 2023 is the cheapest bike model and costs 3105$. BiXS SIGN X 2023 is the most expensive one and costs 10338$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, BiXS SIGN 220 price was 5219$. Comparing the average cost of a Trail bike to this one, you will see that SIGN 220 price is 88.96% more expensive.
SIGN 220 components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the SIGN 220 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SIGN 220 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
BiXS SIGN 220 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
