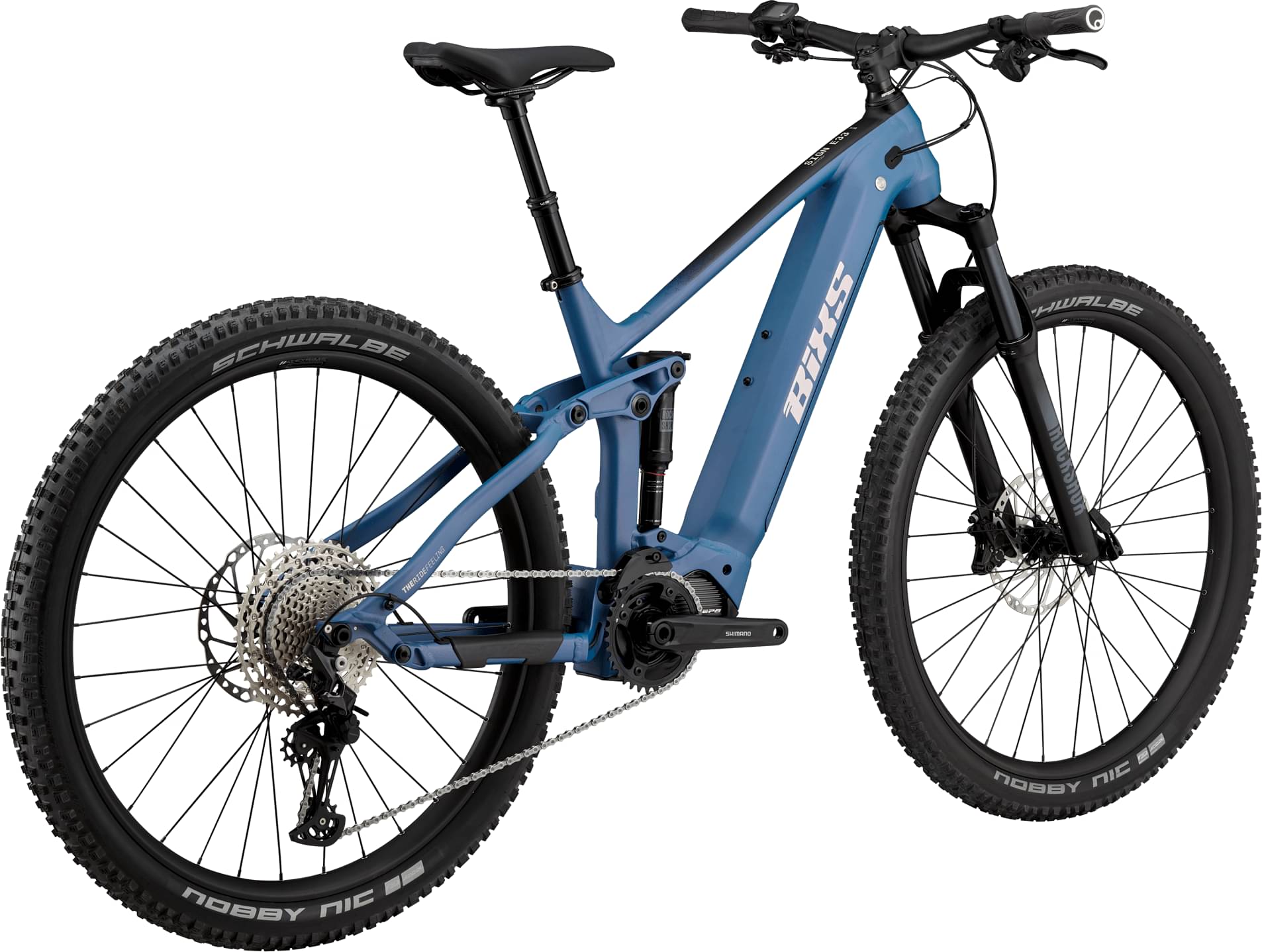

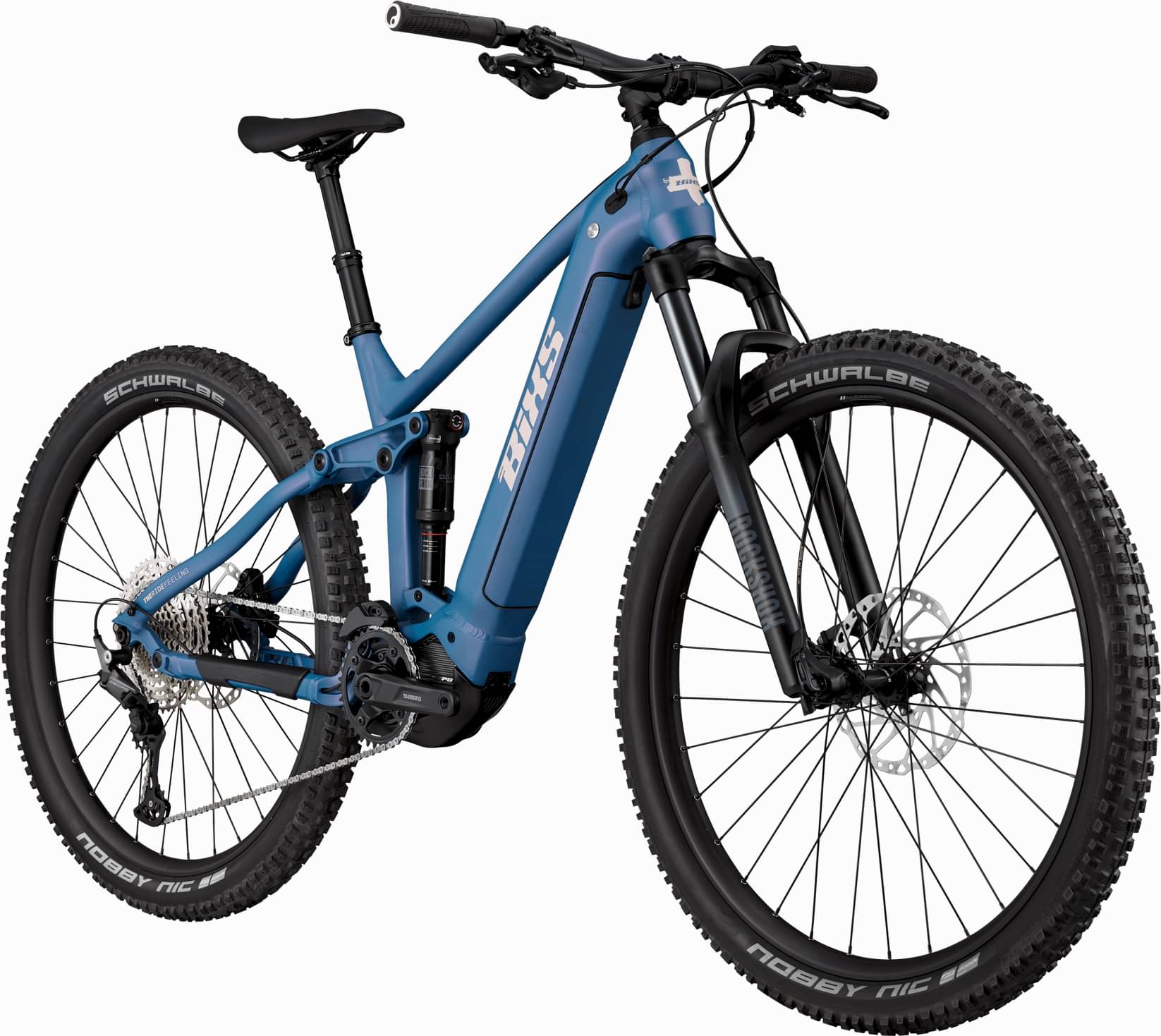

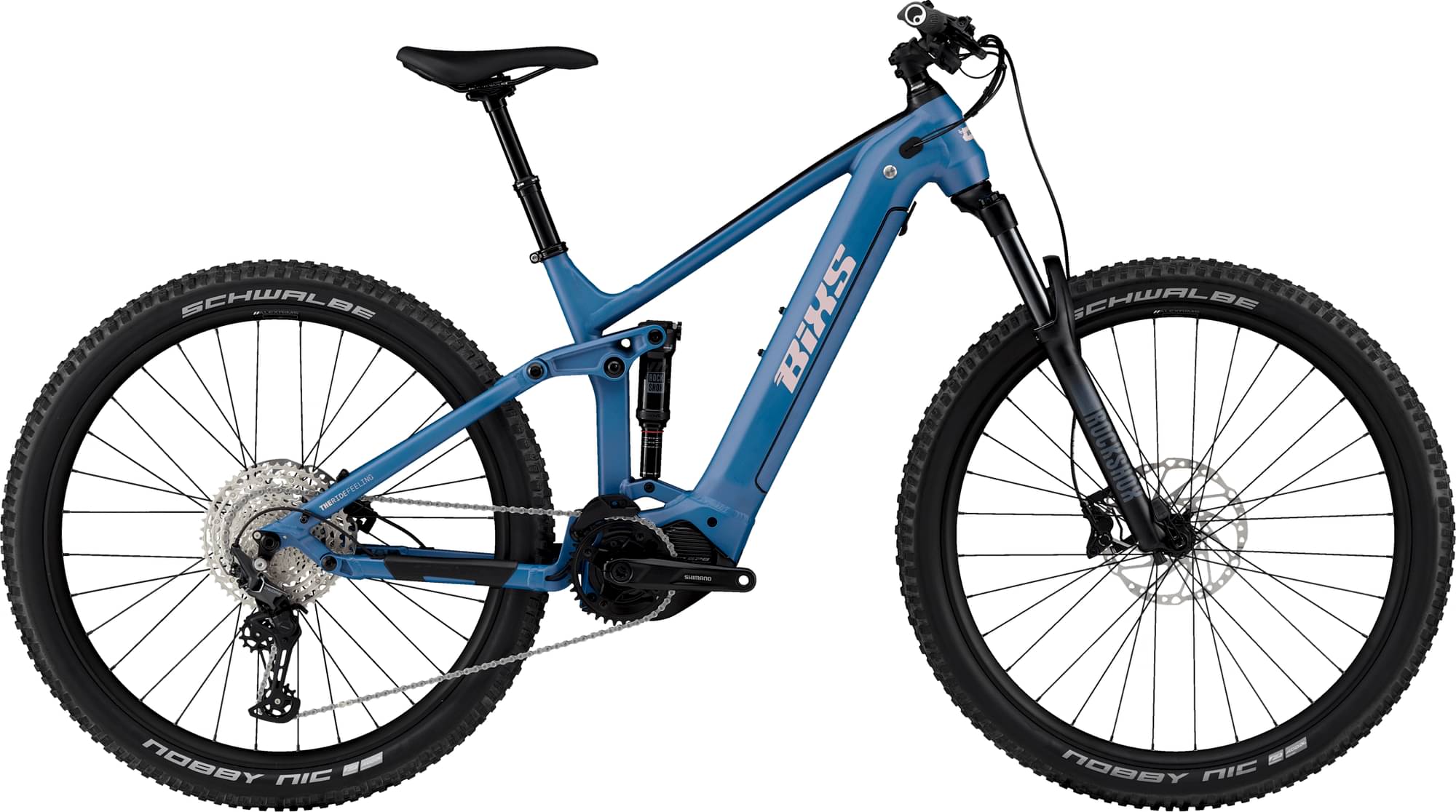

bixs SIGN-E33 MARIPOSA 2023
2023 E-bike
Estimate price |
6,284$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON, 36V, 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-WOMEN GEOMETRY, ALLOY 6061, 130MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"
Suspension Fork
ROCK SHOX 35 SILVER TK SOLO AIR 29", 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMP. TO LOCK
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift Levers
SHIMANO DEORE SL-M6100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Cassette
SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Crank
SHIMANO STEPS FC-EM600, 36 TEETH
Bottom Bracket
STEPS, press-fit
Chain
SHIMANO CN-M6100 12-SPEED
Wheels
Front Hub
SHIMANO HB-MT410-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear Hub
SHIMANO FH-MT410-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Rims
ALEXRIMS EM-35, 32 HOLES, INNER WIDTH 35mm, 29"
Tires
SCHWALBE NOBBY NIC PERFORMANCE, ADDDIX SPEEDGRIP, 29x2.6"
Brakes
Brakes
SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Brake Levers
SHIMANO BL-M4100, ISPEC EV
Cockpit
Stem
BIXS 0°ANGLE, 35mm CLAMP
Handlebar
BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm
Seat
Saddle
BIXS VL-3534
Seatpost
KIND SHOCK RAGEi, 15": 75mm, 17": 100mm, 19": 125mm TRAVEL, SHIMANO REMOTE LEVER, 30.9mm
Motor & Battery
Motor
SHIMANO STEPS EP8, 250 WATT
Battery
DARFON, 36V, 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
SIGN-E33 MARIPOSA is a Bixs E Sign E33 model. There are 2 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BiXS SIGN-E33 MARIPOSA 2023 is the most economical model, with a starting price of 5664$. BiXS SIGN-E33 2023 on the other hand costs 5664$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When BiXS released this model in 2023, its price was 5664$. In conclusion, this e-bike price is 68.32% higher than the price of the average Trail e-bike.
SIGN-E33 MARIPOSA components
Fork
BiXS SIGN-E33 MARIPOSA 2023 e-bike is equipped with the RockShox 35 Silver fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, BiXS SIGN-E33 MARIPOSA 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
BiXS SIGN-E33 MARIPOSA comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
