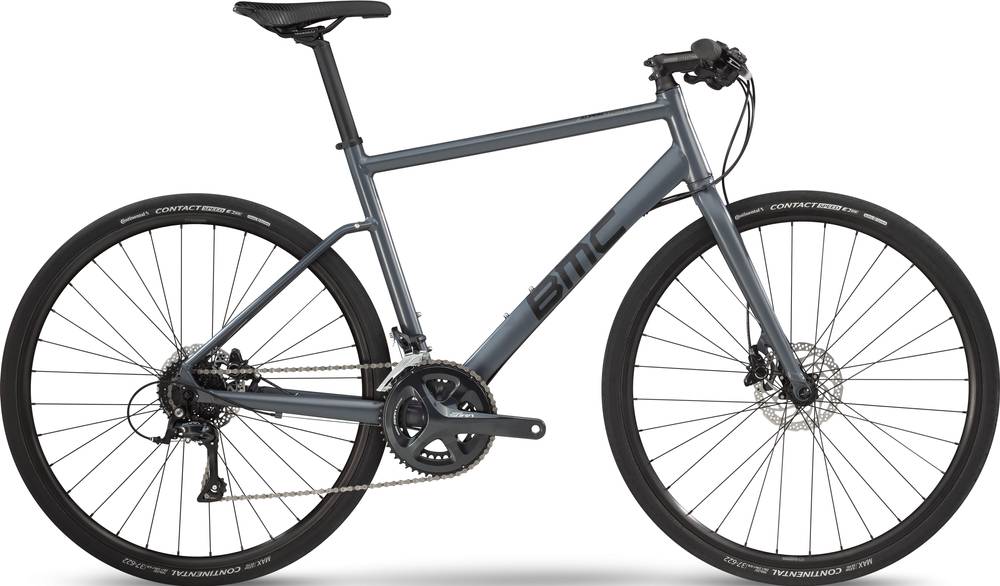

BMC ALPENCHALLENGE AC02 THREE 2019
2019 Urban
Estimate price |
999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 169cm
MD
167cm - 180cm
LG
178cm - 191cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al-13 Butted, Hydroformed Aluminium
Suspension Fork
Alpenchallenge 02, Al-13 Aluminium
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora, Rapidfire Plus
Cassette
Shimano HG200, 11-32
Crank
Shimano Sora, 50-34
Chain
Shimano CH-HG53
Wheels
Front Hub
Shimano TX-505
Rear Hub
Shimano TX-505
Rims
Alex X2200
Tires
Continental Sport Contact II, 35mm
Brakes
Brakes
Shimano M396 / RT30 rotors (160/160) *
Cockpit
Stem
BMC LSM 03
Handlebar
BMC LSB 03
Seat
Saddle
Selle Royal 2080 URN
Seatpost
BMC LSP 03
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.42 mm | 1.46 mm |
| Front Center | 608 mm | 637 mm | 654 mm | 682 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 68 mm | 68 mm | 68 mm | 68 mm |
| Stack | 536 mm | 577 mm | 597 mm | 636 mm |
| Reach | 396 mm | 411 mm | 421 mm | 436 mm |
| Top Tube Length | 558 mm | 591 mm | 607 mm | 640 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 440 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 122 mm | 165 mm | 187 mm | 228 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1045 mm | 1074 mm | 1091 mm | 1119 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 746 mm | 803 mm | 834 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 167 cm | 178 cm | 189 cm |
| Rider Max Height | 169 cm | 180 cm | 191 cm | 199 cm |
Model Overview
ALPENCHALLENGE AC02 THREE is part of the Bmc Alpenchallenge model. There are 46 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
BMC ALPENCHALLENGE AC02 THREE 2019 is the cheapest bike model and costs 999$. BMC ALPENCHALLENGE AC01 ONE 2019 is the most expensive one and costs 2299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter bikes
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 999$. In conclusion, this bike price is 31.1% more expensive than the price of the average Commuter bike.
Overview of components
Fork material
ALPENCHALLENGE AC02 THREE has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on ALPENCHALLENGE AC02 THREE are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ALPENCHALLENGE AC02 THREE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
