Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR Di2 -
Suspension Full -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
01 Premium Carbon (F&R), DTi
Suspension Fork
Fox Float 32 SC, Factory, FIT4, Kashima, iRD (100mm)
Rear Shock
Fox Float DPS, Factory, Evol, Kashima iRD (100mm)
Drivetrain
Rear Derailleur
Shimano XTR Di2
Front Derailleur
Shimano XTR Di2
Shift Levers
Shimano XTR Di2, Synchroshift (Right only)
Cassette
Shimano XTR, 11-40T
Crank
Shimano XTR Trail, 36-26T
Chain
Shimano XTR
Wheels
Front Hub
BMC MWX01 by DT Swiss, Centerlock
Rear Hub
BMC MWX01 by DT Swiss, Centerlock
Rims
BMC MWX01 Carbon
Tires
Continental: X-King (F) / RaceKing (R), Performance Silver, 2.2
Brakes
Brakes
Shimano XTR Race (160/160mm)
Cockpit
Stem
BMC MSM 02
Handlebar
BMC MFB01 Carbon 720mm
Seat
Saddle
Fizik Tundra M3 carbon
Seatpost
BMC MSP 01 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm |
| Front Center | 659 mm | 684 mm | 709 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 80 mm |
| Stack | 588 mm | 598 mm | 608 mm |
| Reach | 415 mm | 437 mm | 459 mm |
| Top Tube Length | 588 mm | 613 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1104 mm | 1129 mm | 1154 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 762 mm | 794 mm | 823 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

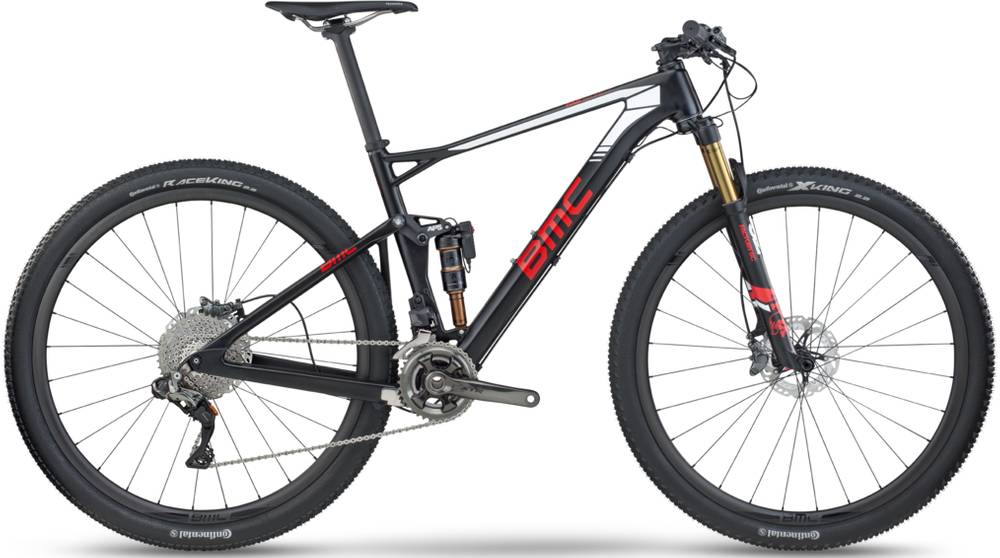

fourstroke 01 is a Bmc Fourstroke model. 41 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
BMC fourstroke 02 2017 is the cheapest bike model and costs 4699$. BMC fourstroke 01 2017 is the most expensive one and costs 12999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2017 and its price was 12999$. Doing a quick comparison, we notice that fourstroke 01 price is 582.36% more expensive than the average cost of a Crosscountry bike.
fourstroke 01 components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The fourstroke 01 has a rear shock with a travel of 100mm. The model Fox Float DPS is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The fourstroke 01 2017 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
BMC fourstroke 01 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
