Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
"Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance • ICS Technology, Stealth Cable Routing • PF86 Bottom Bracket • Integrated Seatpost Clamp • Flat Mount Disc • 12x142mm Thru-Axle"
Suspension Fork
"Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance • ICS Technology, Stealth Cable Routing • Flat Mount Disc • 12x100mm Thru-Axle • 50mm Offset (Size 47-51), 45mm Offset (Size 54-61)"
Drivetrain
Rear Derailleur
SHIMANO Ultegra Di2 12spd
Front Derailleur
SHIMANO Ultegra Di2 12spd
Shift Levers
SHIMANO Ultegra Di2 12spd
Cassette
SHIMANO Ultegra 12spd 11-34T
Crank
SHIMANO Ultegra 12spd 50-34T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO Ultegra 12spd
Wheels
Front Hub
CRD-321
Rear Hub
CRD-321
Rims
CRD-321 Carbon, Tubeless Ready, 35mm
Tires
Vittoria Corsa Control, 28mm
Brakes
Brakes
SHIMANO Ultegra, RT-MT800 Rotors (160/140)
Cockpit
Stem
BMC ICS2 - Integrated Cockpit Design
Handlebar
BMC RAB 02, Ergo Top Shape, Compact Bend
Seat
Saddle
Fizik Argo Tempo R5 (150mm)
Seatpost
"Roadmachine 01 Premium Carbon D-Shaped Seatpost • 15mm Offset"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.45 mm | 1.5 mm | 1.54 mm | 1.61 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583 mm | 599 mm | 597 mm | 609 mm | 621 mm | 635 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 519 mm | 544 mm | 565 mm | 589 mm | 613 mm | 647 mm |
| Reach | 377 mm | 385 mm | 389 mm | 393 mm | 397 mm | 401 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 457 mm | 500 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 112 mm | 139 mm | 156 mm | 181 mm | 206 mm | 242 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 985 mm | 1002 mm | 1000 mm | 1011 mm | 1023 mm | 1038 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
Model Overview

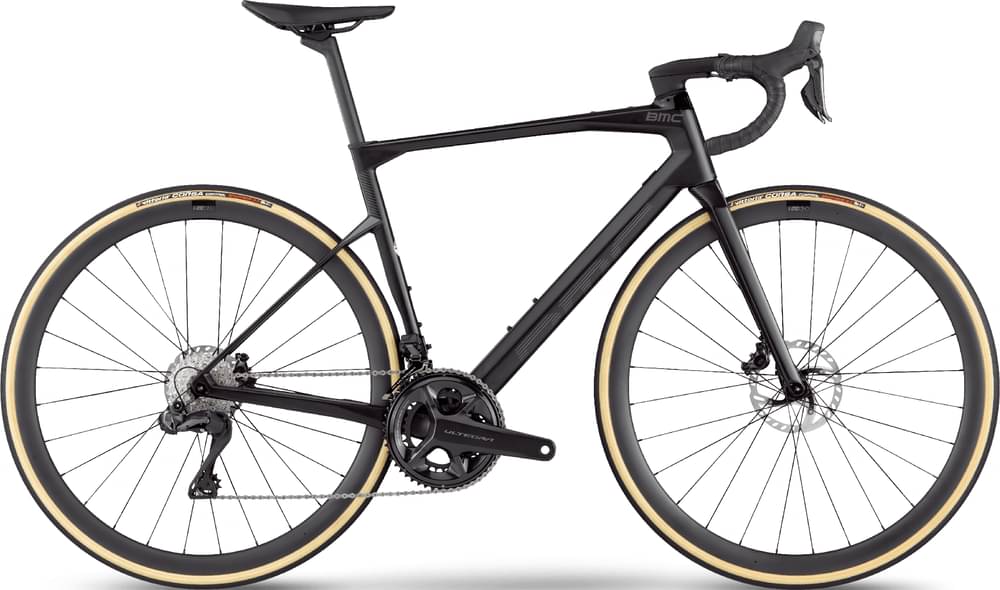

Roadmachine 01 FIVE is part of the Bmc Roadmachine model. BMC launched 95 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BMC Roadmachine X AL, ONE 2022 is the most economical model, with a starting price of 2441$. BMC Roadmachine 01, ONE P2P 2022 on the other hand costs 12456$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Roadmachine 01 FIVE components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Roadmachine 01 FIVE model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Roadmachine 01 FIVE has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
