Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 168cm
51cm
166cm - 174cm
54cm
172cm - 180cm
56cm
177cm - 186cm
58cm
183cm - 192cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TCC 01 Premium Carbon, Angle Compliance Technology
Suspension Fork
Roadmachine 01 Premium Carbon, Integrated Cockpit, Disc-specific
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano ST-R785 Di2, Hydraulic
Cassette
Shimano Ultegra, 11-28
Crank
Shimano Dura Ace, 50-34T
Chain
Shimano Ultegra
Wheels
Front Hub
DT Swiss ER 1600 SPLINE db 23, Alloy, Thru Axle (12mm)
Rear Hub
DT Swiss ER 1600 SPLINE db 23, Alloy, Thru Axle (12mm)
Rims
DT Swiss ER 1600 SPLINE db 23, Alloy
Tires
Vittoria Corsa, 28mm
Brakes
Brakes
Shimano BR-RS805 / SM-RT99 Rotors (160 /140)
Cockpit
Stem
BMC ICS 01 - Integrated Cockpit Design
Handlebar
3T Ergonova Team
Seat
Saddle
Fizik Aliante R5, kium
Seatpost
Roadmachine 01 "D" Premium Carbon, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.42 mm | 1.44 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583.7 mm | 595 mm | 597 mm | 608 mm | 622 mm | 636 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 517 mm | 542 mm | 563 mm | 577 mm | 596 mm | 620 mm |
| Reach | 378 mm | 381 mm | 390 mm | 396 mm | 403 mm | 410 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 464 mm | 507 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 122 mm | 138 mm | 154 mm | 173 mm | 198 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 986 mm | 998 mm | 1000 mm | 1011 mm | 1025 mm | 1039 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 720 mm | 760 mm | 789 mm | 806 mm | 823 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 172 cm | 177 cm | 183 cm | 187 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 186 cm | 192 cm | 196 cm |

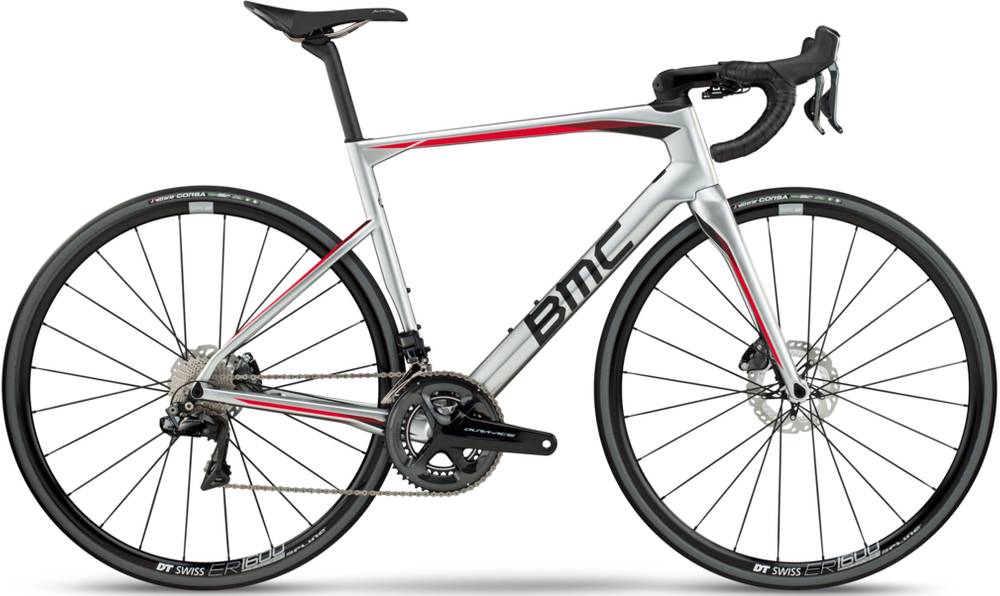

About this model
Roadmachine 01 LTD belongs to the Bmc Roadmachine model. BMC launched 95 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
BMC Roadmachine 03 THREE 2018 is the cheapest bike model and costs 1799$. BMC Roadmachine 01 ONE 2018 is the most expensive one and costs 11999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. Comparing the average cost of an Endurance bike to this one, you will see that Roadmachine 01 LTD price is 240.96% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Roadmachine 01 LTD 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Roadmachine 01 LTD has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
