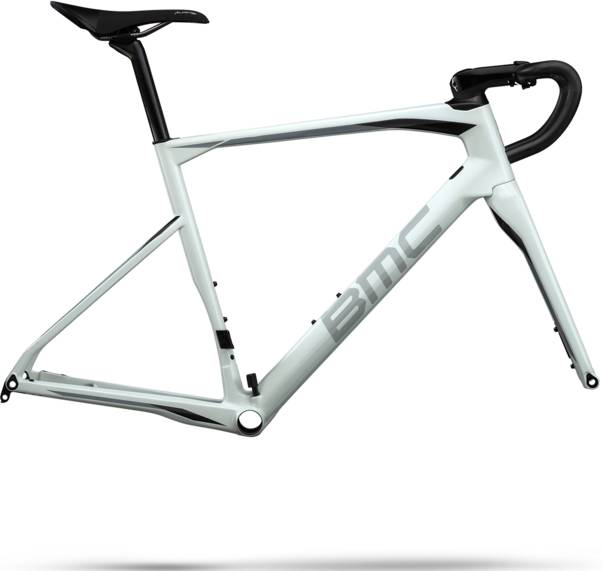

BMC Roadmachine 01 Module (Off White) 2019
2019 Road
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
47cm
152cm - 168cm
51cm
166cm - 174cm
54cm
172cm - 180cm
56cm
177cm - 186cm
58cm
183cm - 192cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
01 Premium Carbon, TCC Endurance, Angle Compliance Technology
Suspension Fork
Roadmachine 01 Premium Carbon, TCC Endurance, Integrated Cockpit, Flat Mount, 12x100mm thru-axle
Drivetrain
Rear Derailleur
-
Front Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Chain
-
Wheels
Front Hub
-
Rear Hub
-
Tires
-
Brakes
Brakes
-
Cockpit
Stem
BMC ICS 01 - Integrated Cockpit Design, w/ computer and camera mount
Handlebar
BMC RCB01 Carbon, ergo top shape, compact bend
Seat
Saddle
Fizik Aliante R5, kium
Seatpost
Roadmachine 01 "D" Premium Carbon, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.42 mm | 1.44 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583.7 mm | 595 mm | 597 mm | 608 mm | 622 mm | 636 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 517 mm | 542 mm | 563 mm | 577 mm | 596 mm | 620 mm |
| Reach | 378 mm | 381 mm | 390 mm | 396 mm | 403 mm | 410 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 464 mm | 507 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 122 mm | 138 mm | 154 mm | 173 mm | 198 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 986 mm | 998 mm | 1000 mm | 1011 mm | 1025 mm | 1039 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 720 mm | 760 mm | 789 mm | 806 mm | 823 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 172 cm | 177 cm | 183 cm | 187 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 186 cm | 192 cm | 196 cm |
About this model
Roadmachine 01 Module (Off White) belongs to the Bmc Roadmachine model. There are 95 frames that carry this model name. Take a sneak peek at all Bmc Roadmachine frames models from 2019, by clicking here.
Model range prices
BMC Roadmachine 01 MOD 2019 is the most affordable frame of this model and has a price of 4399$. On the other hand, BMC Roadmachine 01 Module (Steel Blue) 2019, is the most expensive and costs 4499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance frames
Our math shows that the average cost of a dependable Endurance frame is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 4499$. Comparing this to the average Endurance frame price, we see that the price is 136.17% more expensive.
Roadmachine 01 Module (Off White) components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
BMC Roadmachine 01 Module (Off White) frame has 6 sizes, in the range of 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
