Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 168cm
51cm
166cm - 174cm
54cm
172cm - 180cm
56cm
177cm - 186cm
58cm
183cm - 192cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TCC 01 Premium Carbon, Angle Compliance Technology
Suspension Fork
Roadmachine 01 Premium Carbon, Integrated Cockpit, Disc-specific
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Di2, Hydraulic
Cassette
Shimano Ultegra, 11-30T
Crank
Shimano Ultegra, 50-34T
Chain
Shimano Ultegra
Wheels
Front Hub
3T Discus C35 Team Stealth Carbon, Thru Axle (12mm)
Rear Hub
3T Discus C35 Team Stealth Carbon, Thru Axle (12mm)
Rims
3T Discus C35 Team Stealth Carbon
Tires
Vittoria Corsa, 28mm
Brakes
Brakes
Shimano Ultegra Di2, SM-RT800 Rotors (160/140)
Cockpit
Stem
BMC ICS 01 - Integrated Cockpit Design, w/ computer and camera mount
Handlebar
3T Ergonova Team
Seat
Saddle
Fizik Aliante R5, kium
Seatpost
Roadmachine 01 "D" Premium Carbon, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.42 mm | 1.44 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583.7 mm | 595 mm | 597 mm | 608 mm | 622 mm | 636 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 517 mm | 542 mm | 563 mm | 577 mm | 596 mm | 620 mm |
| Reach | 378 mm | 381 mm | 390 mm | 396 mm | 403 mm | 410 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 464 mm | 507 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 122 mm | 138 mm | 154 mm | 173 mm | 198 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 986 mm | 998 mm | 1000 mm | 1011 mm | 1025 mm | 1039 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 720 mm | 760 mm | 789 mm | 806 mm | 823 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 172 cm | 177 cm | 183 cm | 187 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 186 cm | 192 cm | 196 cm |
Model Overview

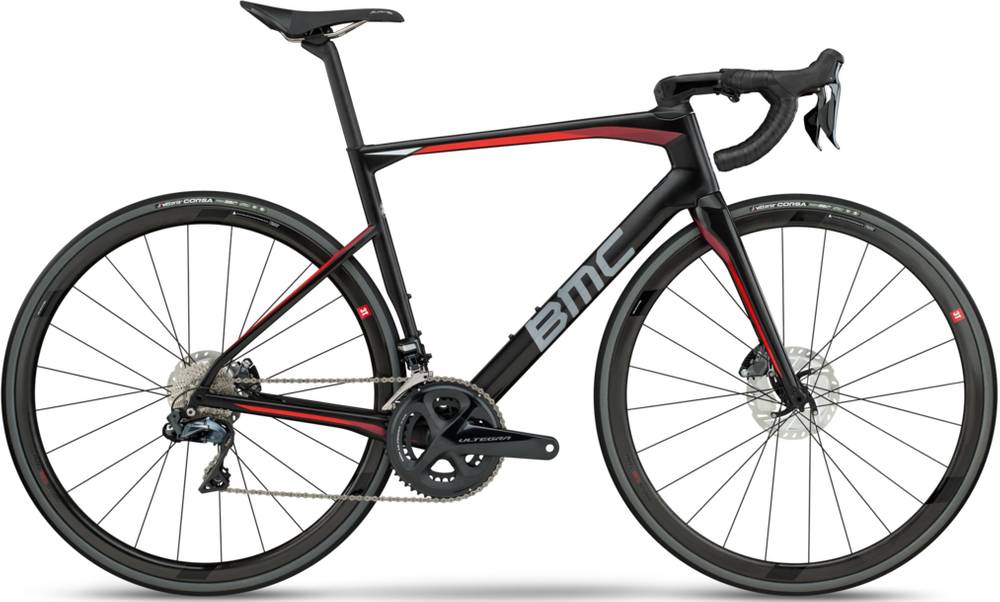

Roadmachine 01 THREE is part of the Bmc Roadmachine model. 95 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the BMC Roadmachine 03 THREE 2018 has a starting price of 1799$. BMC Roadmachine 01 ONE 2018 on the other hand is the most expensive at 11999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, BMC Roadmachine 01 THREE price was 7499$. Comparing the average cost of an Endurance bike to this one, you will see that Roadmachine 01 THREE price is 219.65% more expensive.
Roadmachine 01 THREE components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Roadmachine 01 THREE are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. BMC Roadmachine 01 THREE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Roadmachine 01 THREE comes in 6 sizes, that range from 152 cm – 196 cm (4.99 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
