Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance, ICS Technology Stealth Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Suspension Fork
Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
SHIMANO Ultegra Di2 RD-R8150 12spd
Shift Levers
SHIMANO Ultegra Di2 ST-R8170 12spd
Cassette
SHIMANO Ultegra CS-R8100 12spd 11-34T
Crank
SHIMANO Ultegra FC-R8100 12spd 50-34T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO Ultegra CN-M8100 12spd
Wheels
Front Hub
CRD-321 SL
Rear Hub
CRD-321 SL
Rims
CRD-321 SL Carbon - Tubeless Ready - 35mm
Tires
Vittoria Corsa N.EXT - 28mm
Brakes
Brakes
SHIMANO Ultegra BR-R8170 | SHIMANO RT-MT800 160 / 140mm
Cockpit
Stem
BMC ICS2 - Integrated Cockpit Design
Handlebar
BMC RCB01 Carbon - Ergo Top Shape - Compact Bend
Seat
Saddle
Fizik Argo Vento R5 (140mm)
Seatpost
Roadmachine 01 Premium Carbon D-Shaped Seatpost, 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.45 mm | 1.5 mm | 1.54 mm | 1.61 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583 mm | 599 mm | 597 mm | 609 mm | 621 mm | 635 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 519 mm | 544 mm | 565 mm | 589 mm | 613 mm | 647 mm |
| Reach | 377 mm | 385 mm | 389 mm | 393 mm | 397 mm | 401 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 457 mm | 500 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 112 mm | 139 mm | 156 mm | 181 mm | 206 mm | 242 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 985 mm | 1002 mm | 1000 mm | 1011 mm | 1023 mm | 1038 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 722 mm | 753 mm | 785 mm | 808 mm | 828 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
About this model

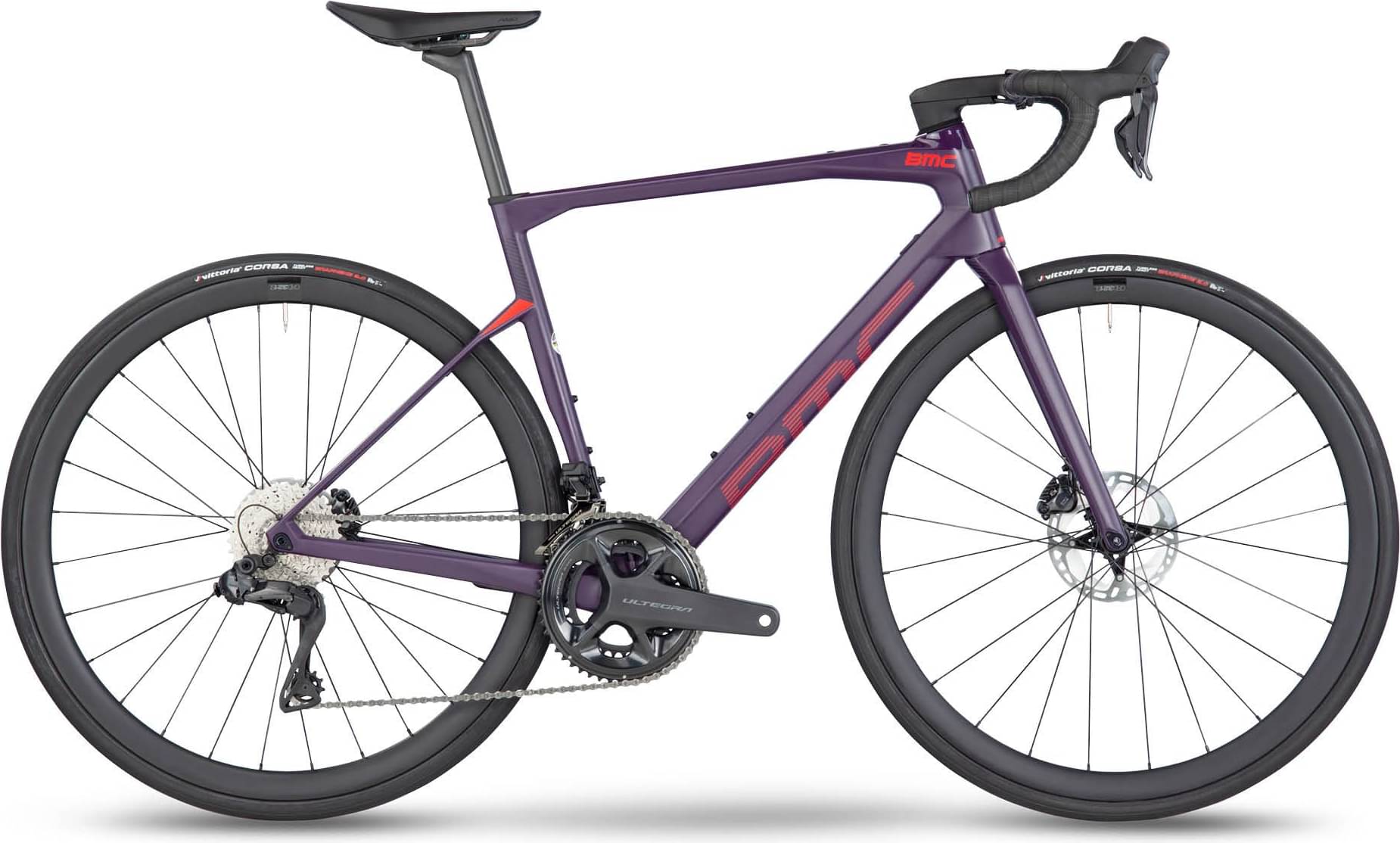

Roadmachine 01 THREE is part of the Bmc Roadmachine model. BMC released 95 bikes variations of this model so far. Take a sneak peek at all Bmc Roadmachine bikes models from 2023, by clicking here.
Model range prices
The most economical model, the BMC Roadmachine AL X TWO 2023 has a starting price of 2499$. BMC Roadmachine 01 ONE 2023 on the other hand is the most expensive at 12999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8999$. In conclusion, this bike price is 283.59% more expensive than the price of the average Endurance bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Roadmachine 01 THREE bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
