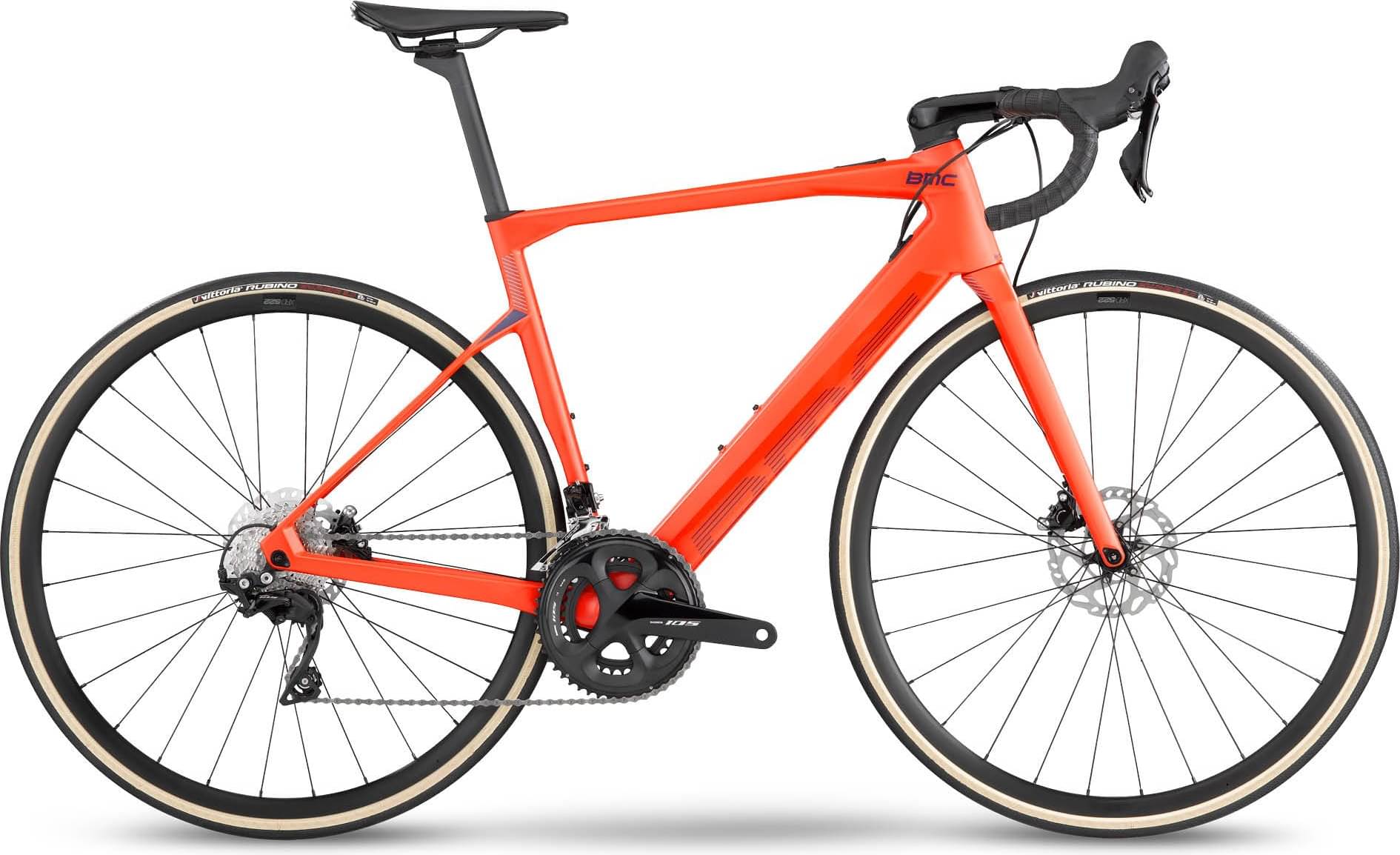

BMC Roadmachine AMP THREE 2022
2022 E-bike
Estimate price |
6,881$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX350 - 350 Wh (Optional 172 Wh Range Extender) -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Roadmachine AMP Premium Carbon with Tuned Compliance Concept Endurance, Integrated Removable Battery, Internal Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Suspension Fork
Roadmachine AMP Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, Flat Mount Disc, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
SHIMANO 105
Shift Levers
SHIMANO 105
Cassette
SHIMANO 105 11-32T
Crank
SHIMANO 105 50-34T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO 105
Wheels
Front Hub
XRD-522 - Ebikemotion
Rear Hub
XRD-522 - Ebikemotion
Rims
XRD-522 - Tubeless Ready - 25 mm
Tires
Vittoria Rubino Pro - 30mm
Brakes
Brakes
SHIMANO 105 - RT70 / RT66 (F/R) Rotors (160/160)
Cockpit
Stem
BMC RSM
Handlebar
BMC RAB 02 - Ergo Top Shape - Compact Bend
Seat
Saddle
Fizik Taiga
Seatpost
Roadmachine AMP Premium Carbon D-Shaped Seatpost, 15mm Offset
Motor & Battery
Motor
Mahle X20
Battery
Mahle iX350 - 350 Wh (Optional 172 Wh Range Extender)
Charger
Mahle X20 Active Charger
Fit data

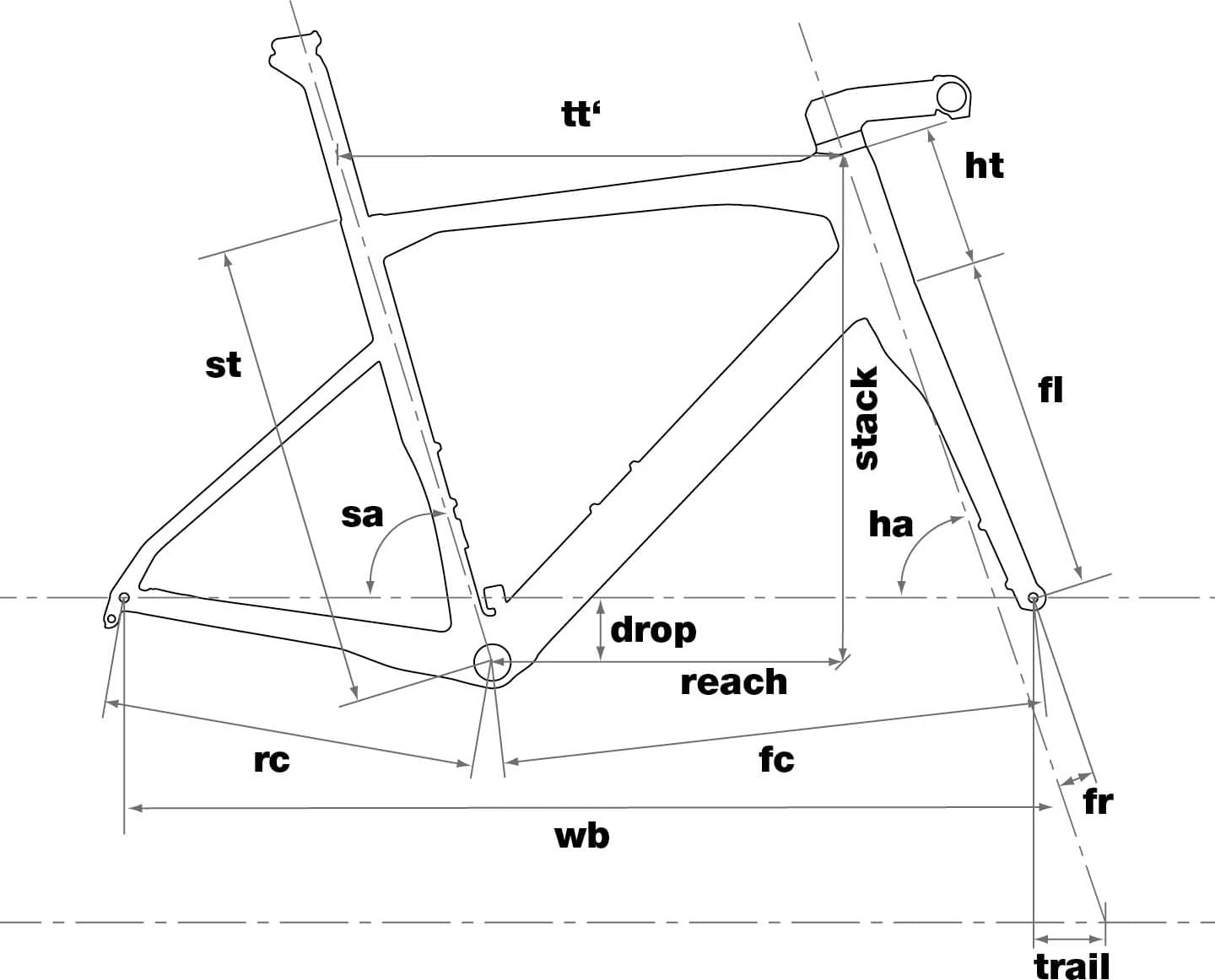

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.45 mm | 1.5 mm | 1.54 mm | 1.61 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583 mm | 599 mm | 597 mm | 609 mm | 621 mm | 635 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 519 mm | 544 mm | 565 mm | 589 mm | 613 mm | 647 mm |
| Reach | 377 mm | 385 mm | 389 mm | 393 mm | 397 mm | 401 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 457 mm | 500 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 112 mm | 139 mm | 156 mm | 181 mm | 206 mm | 242 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 985 mm | 1002 mm | 1000 mm | 1011 mm | 1023 mm | 1038 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 722 mm | 753 mm | 785 mm | 808 mm | 828 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
Model Overview
Roadmachine AMP THREE is part of the Bmc E Roadmachine model. BMC launched 12 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BMC Roadmachine AMP THREE 2022 is the most economical model, with a starting price of 6370$. BMC Roadmachine AMP ONE 2022 on the other hand costs 8493$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 6370$. Comparing this to the average Endurance e-bike price, we see that the price is 67.63% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Roadmachine AMP THREE are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
