Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Suspension Fork
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, Flat Mount Disc, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
SRAM RIVAL eTap AXS
Shift Levers
SRAM RIVAL eTap AXS HRD
Cassette
SRAM RIVAL XG-1250 10-36T
Crank
SRAM RIVAL AXS 46-33T
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM RIVAL 12 Speed
Wheels
Front Hub
XRD-522
Rear Hub
XRD-522
Rims
XRD-522 - Tubeless Ready - 25mm
Tires
VITTORIA RUBINO - 28mm
Brakes
Brakes
SRAM Rival eTap AXS HRD | SRAM Centerline X Rotors 160 / 160mm
Cockpit
Stem
BMC RSM01
Handlebar
BMC RAB 02 - Ergo Top Shape - Compact Bend
Seat
Saddle
Fizik Taiga
Seatpost
Roadmachine Premium Carbon D-Shaped Seatpost, 15mm Offset
Fit data

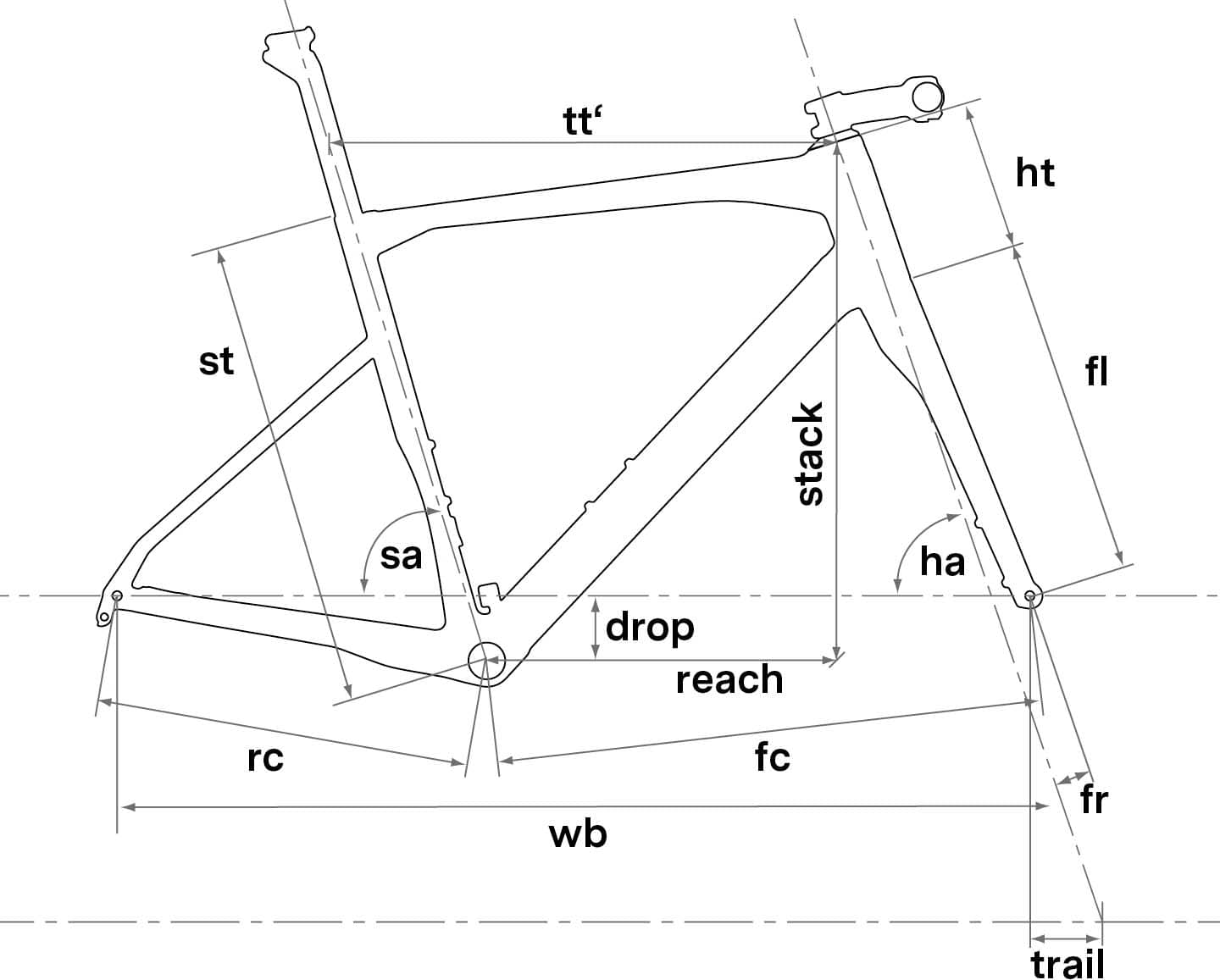

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.45 mm | 1.5 mm | 1.54 mm | 1.61 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 583 mm | 599 mm | 597 mm | 609 mm | 621 mm | 635 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 519 mm | 544 mm | 565 mm | 589 mm | 613 mm | 647 mm |
| Reach | 377 mm | 385 mm | 389 mm | 393 mm | 397 mm | 401 mm |
| Top Tube Length | 525 mm | 535 mm | 549 mm | 559 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 457 mm | 500 mm | 522 mm | 539 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 112 mm | 139 mm | 156 mm | 181 mm | 206 mm | 242 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 985 mm | 1002 mm | 1000 mm | 1011 mm | 1023 mm | 1038 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 722 mm | 753 mm | 785 mm | 808 mm | 828 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
About this model

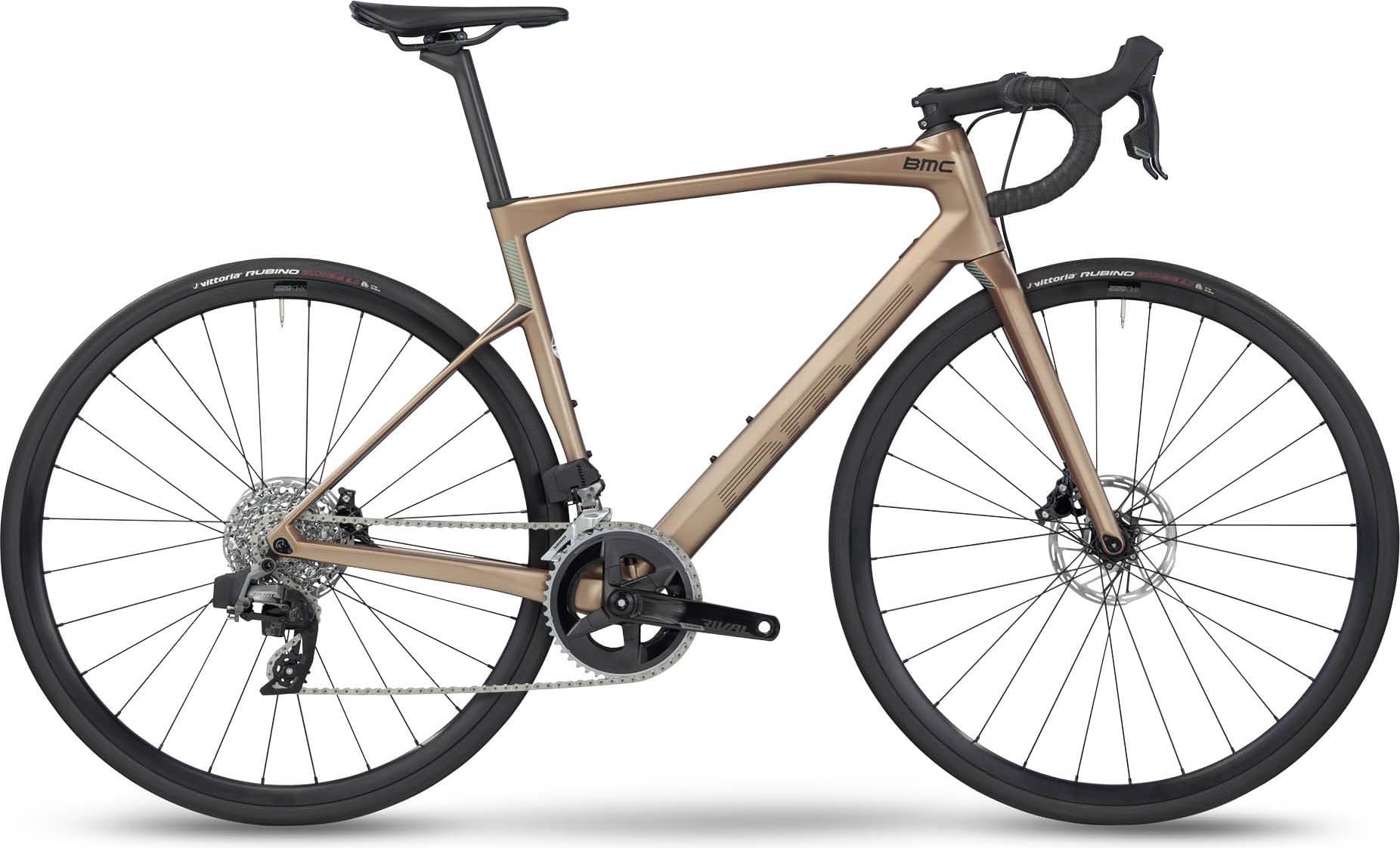

Roadmachine FOUR belongs to the Bmc Roadmachine model. BMC released 95 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the BMC Roadmachine AL X TWO 2023 has a starting price of 2499$. BMC Roadmachine 01 ONE 2023 on the other hand is the most expensive at 12999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 5099$. If we compare this with the average Endurance bike cost we notice that the price is 117.35% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
Roadmachine FOUR has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Roadmachine FOUR bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Roadmachine FOUR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
