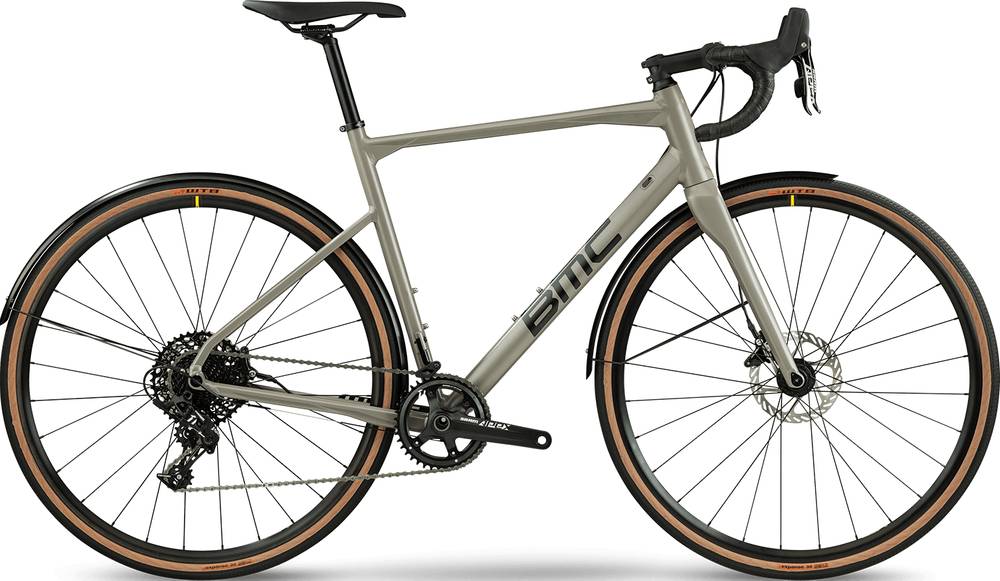

BMC Roadmachine X 2020
2020 Road
Estimate price |
1,999$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex, Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Roadmachine X Premium Alloy, • Triple-butted, Hydroformed, Smoothweld Aluminium, • TCC Endurance compliance level, • Internal Cable Routing, • BSA Threaded Bottom Bracket, • Flat Mount Disc, • 12x142mm thru-axle
Suspension Fork
Roadmachine X Carbon, • TCC Race compliance level, • Flat Mount Disc, • 12x100mm thru-axle
Drivetrain
Rear Derailleur
SRAM APEX
Shift Levers
SRAM APEX HRD
Cassette
SRAM APEX PG-1130, 11-42T
Crank
SRAM APEX1, 40T
Bottom Bracket
BSA, 68mm, threaded
Chain
SRAM CN-1110
Wheels
Front Hub
Formula RX
Rear Hub
Formula RX
Rims
Mavic Open Disc
Tires
WTB Expanse, 32mm
Brakes
Brakes
SRAM APEX HRD-A1 w/ G2 Rotors (160/160)
Cockpit
Stem
BMC RSM01
Handlebar
BMC RAB 03, ergo top shape, compact bend
Seat
Saddle
Selle Royal
Seatpost
BMC RSP 03
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.47 mm | 1.49 mm | 1.5 mm | 1.51 mm | 1.54 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 589 mm | 598 mm | 607 mm | 615 mm | 625 mm | 640 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 66 mm | 66 mm | 63 mm | 60 mm |
| Stack | 522 mm | 547 mm | 568 mm | 582 mm | 601 mm | 625 mm |
| Reach | 373 mm | 373 mm | 382 mm | 388 mm | 397 mm | 405 mm |
| Top Tube Length | 529 mm | 536 mm | 551 mm | 561 mm | 576 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 533 mm | 548 mm | 564 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 128 mm | 154 mm | 172 mm | 187 mm | 205 mm | 228 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 995 mm | 1004 mm | 1013 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
Model Overview
Roadmachine X completes the Bmc Roadmachine model. BMC launched 95 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
BMC Roadmachine X 2020 is the most economical model, with a starting price of 1999$. BMC Roadmachine 01 ONE 2020 on the other hand costs 10999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When BMC released this model in 2020, its price was 1999$. In conclusion, this bike price is 17.36% smaller than the price of the average Endurance bike.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 9.3 kg (20.5 lbs), the Roadmachine X model is considerably heavier than average. In conclusion, the average Endurance bike weighs 13.41% less than Roadmachine X.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Roadmachine X components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, BMC Roadmachine X 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. BMC Roadmachine X is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
