Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 130mm -
Fork RockShox Judy Silver TK
-
Groupset Deore, Shimano -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
03 Alloy, Al-13 Triple-butted aluminum (F&R)
Suspension Fork
RockShox Judy Silver TK (120mm)
Rear Shock
X-Fusion 02 RL, (120/130mm)***
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus
Front Derailleur
Shimano Deore, Side Swing
Shift Levers
Shimano Deore
Cassette
SRAM PG 1130 11-42T
Crank
Shimano FC-M617, 36-22T
Bottom Bracket
BSA 73mm
Chain
KMC X-10
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano Deore
Rear Hub
Shimano Deore
Rims
Alex MD30**
Tires
Maxxis Forekaster TBR, 27,5 or 29x2.35
Brakes
Brakes
Shimano BR-M315 (180/180mm)
Brake Levers
Shimano BR-M315
Cockpit
Stem
BMC AMSM 02
Handlebar
BMC MRB 03, 760mm
Seat
Saddle
WTB Volt Sport
Seatpost
BMC MSP 03
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.37 mm | 1.38 mm | 1.37 mm |
| Bottom Bracket Height | 352 mm | 337 mm | 352 mm | 337 mm | 337 mm |
| Front Center | 685 mm | 704 mm | 712 mm | 728 mm | 748 mm |
| Rake | 46 mm | 51 mm | 46 mm | 51 mm | 51 mm |
| Trail | 98 mm | 90 mm | 98 mm | 90 mm | 90 mm |
| Stack | 577 mm | 603 mm | 588 mm | 613 mm | 628 mm |
| Reach | 406 mm | 423 mm | 429 mm | 443 mm | 458 mm |
| Top Tube Length | 580 mm | 604 mm | 606 mm | 627 mm | 646 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 410 mm | 440 mm | 430 mm | 480 mm | 510 mm |
| Head Tube Angle | 67.5 ° | 68.25 ° | 67.5 ° | 68.25 ° | 68.25 ° |
| Head Tube Length | 110 mm | 105 mm | 120 mm | 115 mm | 135 mm |
| Chainstay Length | 423 mm | 438 mm | 423 mm | 438 mm | 438 mm |
| Wheelbase | 1104 mm | 1138 mm | 1131 mm | 1162 mm | 1182 mm |
| Bottom Bracket Drop | 22 mm | 37 mm | 22 mm | 37 mm | 37 mm |
| Standover Height | 688 mm | 727 mm | 715 mm | 745 mm | 766 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

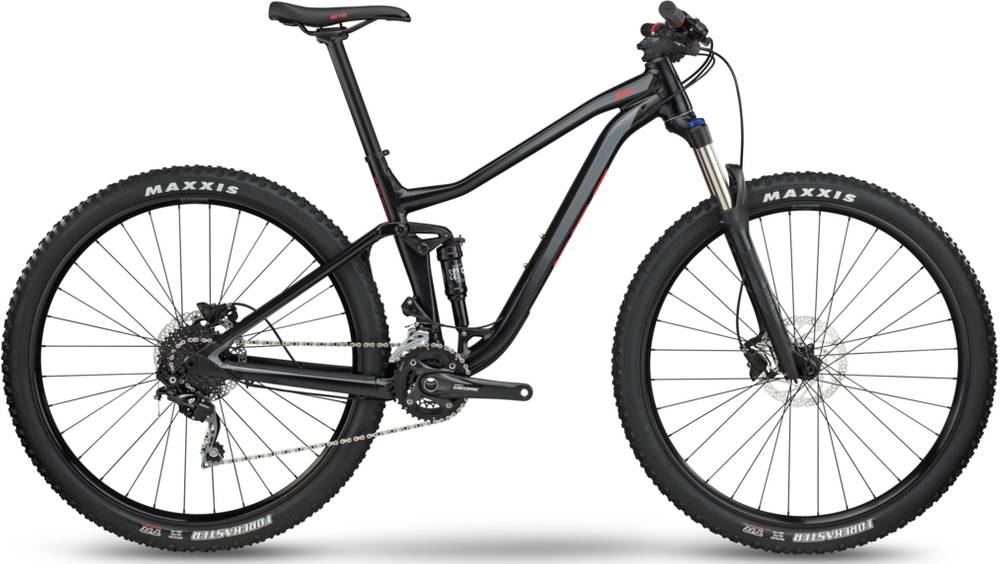

Speedfox 03 THREE completes the Bmc Speedfox model. BMC released 28 bikes variations of this model so far. You can easily view all of the Bmc Speedfox bikes models from 2018, here.
Model range prices
The most economical model, the BMC Speedfox 03 THREE 2018 has a starting price of 2199$. BMC Speedfox 01 ONE 2018 on the other hand is the most expensive at 7499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 2199$. In conclusion, this bike price is 25.6% lower than the price of the average Trail bike.
Overview of components
Fork
The Speedfox 03 THREE comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is X-Fusion 02 RL, with a travel distance of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Speedfox 03 THREE bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speedfox 03 THREE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Speedfox 03 THREE comes in 5 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
