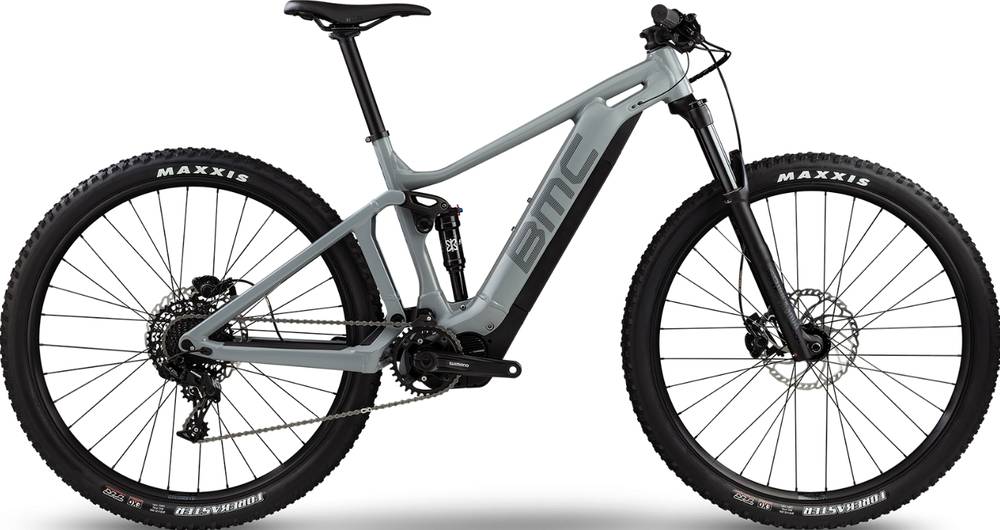

BMC Speedfox AMP FIVE 2020
2020 E-bike
Estimate price |
4,499$
Weight | 22.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS MTB E-8020, 500Wh, integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speedfox AMP - Advanced Pivot System, 12 x 148mm Thru-axle, 130mm Travel
Suspension Fork
RockShox Recon RL, E-MTB, 130mm
Rear Shock
X-Fusion O2 RL
Drivetrain
Rear Derailleur
SRAM NX
Shift Levers
SRAM NX
Cassette
SRAM NX, 11-42T
Crank
Shimano FC-E8000, 34T
Chain
SRAM PC-1110
Wheels
Front Hub
Formula DC-7131/ EHL-148S
Rear Hub
Formula DC-7131/ EHL-148S
Rims
Alex MD30 **
Tires
Maxxis Forekaster TR/ EXO, 2.35
Brakes
Brakes
Shimano Deore (200/200mm) *
Cockpit
Stem
BMC MSM 03
Handlebar
BMC MFB 03 750mm
Seat
Saddle
WTB Silverado Sport 142
Seatpost
BMC MSP 03
Motor & Battery
Motor
Shimano STEPS MTB E-7000, 250W, 60Nm output
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.36 mm | 1.317 mm |
| Bottom Bracket Height | 341 mm | 339 mm | 336 mm |
| Front Center | 726 mm | 752 mm | 782.16 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 598 mm | 605 mm | 619 mm |
| Reach | 416 mm | 445 mm | 470 mm |
| Top Tube Length | 572 mm | 619 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 101 mm | 103 mm | 112 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1174 mm | 1202 mm | 1231 mm |
| Bottom Bracket Drop | 33 mm | 35 mm | 38 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 171 cm | 185 cm | cm |
About this model
Speedfox AMP FIVE belongs to the Bmc E Speedfox model. 14 e-bikes variations carry this model name so far. You can easily view all of the Bmc E Speedfox e-bikes models from 2020, here.
Model range prices
BMC Speedfox AMP AL THREE USA 2020 is the most affordable e-bike of this model and has a price of 4499$. On the other hand, BMC Speedfox AMP TWO 2020, is the most expensive and costs 7899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2020 and its price was 4499$. Doing a quick comparison, we notice that Speedfox AMP FIVE price is 33.7% more expensive than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Speedfox AMP FIVE weighs 22.6 kg (49.82 lbs) and is slightly lighter than the average. In other words, this model is 4.87% lighter than the average Trail e-bike.
Overview of components
Fork
BMC Speedfox AMP FIVE 2020 e-bike is equipped with the RockShox Recon Silver RL fork, and has 130mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
BMC Speedfox AMP FIVE e-bike has the X-Fusion O2 RL model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Speedfox AMP FIVE 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
