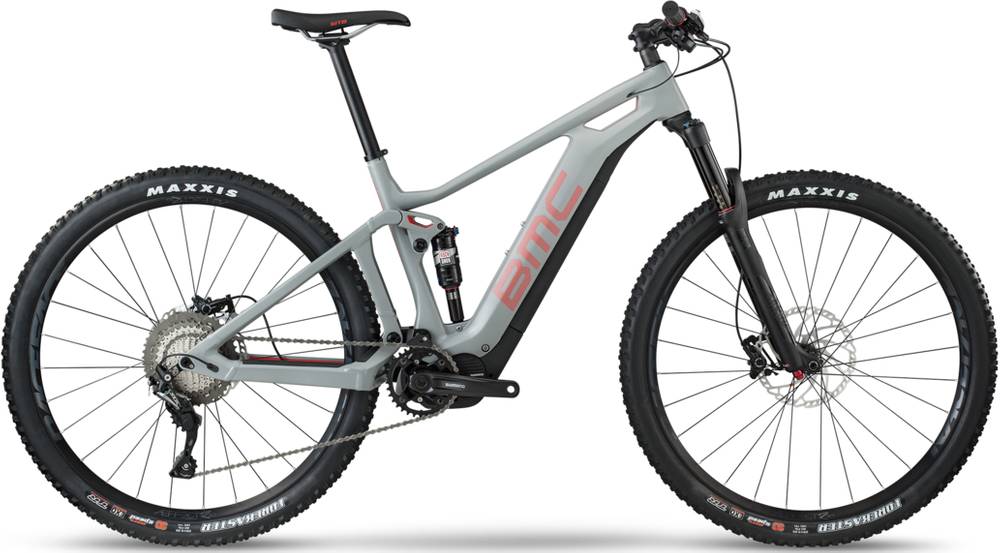

BMC Speedfox AMP THREE 2018
2018 E-bike
Estimate price |
5,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS MTB E-8020, 500Wh, integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon (F), Al-13 Triple-butted aluminum (R), integrated battery pack
Suspension Fork
RockShox Revelation RC (130mm)
Rear Shock
RockShox Monarch RL (130mm)
Drivetrain
Rear Derailleur
Shimano SLX, Shadow Plus
Front Derailleur
-
Shift Levers
Shimano SLX
Cassette
Shimano SLX, 11-46T
Crank
Shimano FC-E8000, 34T
Chain
Shimano CN-HG601
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Novatec
Rear Hub
Novatec
Rims
Alex MD30
Tires
Maxxis Forekaster TR, 2.35
Brakes
Brakes
Shimano Deore (200/200mm)
Brake Levers
Shimano Deore
Cockpit
Stem
BMC MSM 03
Handlebar
BMC MFB 03 750mm
Seat
Saddle
WTB Volt Comp
Seatpost
BMC MSP 03
Motor & Battery
Motor
Shimano STEPS MTB E-8000, 250W, 70Nm output
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.36 mm | 1.309 mm |
| Bottom Bracket Height | 341 mm | 339 mm | 339 mm |
| Front Center | 711 mm | 752 mm | 784 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 107 mm | 107 mm |
| Stack | 598 mm | 605 mm | 618 mm |
| Reach | 401 mm | 445 mm | 472 mm |
| Top Tube Length | 572 mm | 619 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 92 mm | 103 mm | 118 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1159 mm | 1202 mm | 1233 mm |
| Bottom Bracket Drop | 33 mm | 35 mm | 35 mm |
| Standover Height | 760 mm | 765 mm | 770 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Speedfox AMP THREE belongs to the Bmc E Speedfox model. BMC launched 14 e-bikes of this model so far. You can easily view all of the Bmc E Speedfox e-bikes models from 2018, here.
Model range prices
The most economical model, the BMC Speedfox AMP THREE 2018 has a starting price of 5799$. BMC Speedfox AMP TWO 2018 on the other hand is the most expensive at 7499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2018 and its price was 5799$. In conclusion, this e-bike price is 72.33% more expensive than the price of the average Trail e-bike.
Overview of components
Fork
This e-bike has the RockShox Revelation RC fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Speedfox AMP THREE has a rear shock with a travel of 130mm. The model RockShox Monarch RL (130mm) is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Speedfox AMP THREE 2018 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speedfox AMP THREE has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
