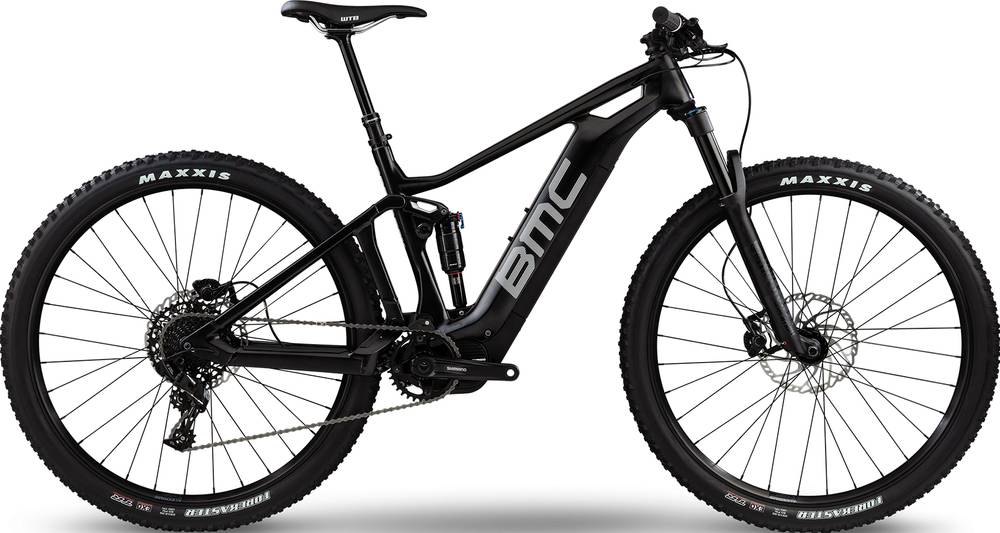

BMC Speedfox AMP THREE 2020
2020 E-bike
Estimate price |
5,999$
Weight | 22.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset NX, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS MTB E-8020, 500Wh, integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speedfox AMP - Twin Hollowcore - Advanced Pivot System, 12 x 148mm Thru-axle, 130mm Travel
Suspension Fork
RockShox Revelation RC, E-MTB, 130mm
Rear Shock
RockShox Monarch RT
Drivetrain
Rear Derailleur
SRAM NX
Shift Levers
SRAM NX
Cassette
SRAM NX, 11-42T
Crank
Shimano FC-E8000, 34T
Chain
SRAM PC-1110
Wheels
Front Hub
Formula DC-7131/ EHL-148S
Rear Hub
Formula DC-7131/ EHL-148S
Rims
Alex MD30 **
Tires
Maxxis Forekaster TR/ EXO, 2.35
Brakes
Brakes
Shimano Deore (200/200mm) *
Cockpit
Stem
BMC MSM 03
Handlebar
BMC MFB 03 750mm
Seat
Saddle
WTB Silverado Comp 142
Seatpost
X-Fusion Manic 150mm, 1x remote lever *
Motor & Battery
Motor
Shimano STEPS MTB E-8000, 250W, 70Nm output
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.36 mm | 1.309 mm |
| Bottom Bracket Height | 341 mm | 339 mm | 339 mm |
| Front Center | 711 mm | 752 mm | 784 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 107 mm | 107 mm |
| Stack | 598 mm | 605 mm | 618 mm |
| Reach | 401 mm | 445 mm | 472 mm |
| Top Tube Length | 572 mm | 619 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 92 mm | 103 mm | 118 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1159 mm | 1202 mm | 1233 mm |
| Bottom Bracket Drop | 33 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 171 cm | 185 cm | cm |
About this model
Speedfox AMP THREE is a Bmc E Speedfox model. BMC released 14 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
BMC Speedfox AMP AL THREE USA 2020 is the cheapest e-bike model and costs 4499$. BMC Speedfox AMP TWO 2020 is the most expensive one and costs 7899$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. Doing a quick comparison, we notice that Speedfox AMP THREE price is 78.28% more expensive than the average cost of a Trail e-bike.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
BMC Speedfox AMP THREE it’s weighing 22.1 kg (48.72 lbs). At this weight, is a bit lighter than average. In conclusion, the average Trail e-bike weighs 7.24% more than Speedfox AMP THREE.
Overview of components
Fork
This e-bike has the RockShox Revelation RC fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Monarch RT rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Speedfox AMP THREE model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. BMC Speedfox AMP THREE is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Speedfox AMP THREE. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
