Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al-13 Premium Triple-butted, Hydroformed, Smooth-weld Aluminum
Suspension Fork
Teammachine SLR, 03 Carbon, Full carbon
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora
Cassette
Shimano CS-HG400, 11-34T
Crank
Shimano Sora, 50-34T
Chain
-
Wheels
Front Hub
Alex-210
Rear Hub
Alex-210
Rims
Alex-210
Tires
Continental Ultra Sport II SL, 25mm
Brakes
Brakes
Shimano Sora
Cockpit
Stem
BMC RSM 03
Handlebar
BMC RAB 03
Seat
Saddle
VL-1489
Seatpost
BMC RSP 03
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 571 mm | 575 mm | 586 mm | 600 mm | 620 mm |
| Rake | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm |
| Trail | 76 mm | 67 mm | 64 mm | 64 mm | 64 mm |
| Stack | 506 mm | 530 mm | 550 mm | 574 mm | 601 mm |
| Reach | 356 mm | 365 mm | 374 mm | 382 mm | 393 mm |
| Top Tube Length | 506 mm | 522 mm | 537 mm | 551 mm | 571 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 505 mm | 535 mm | 565 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 118 mm | 138 mm | 158 mm | 181 mm | 211 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 957 mm | 961 mm | 971 mm | 987 mm | 1006 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 696 mm | 742 mm | 769 mm | 795 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

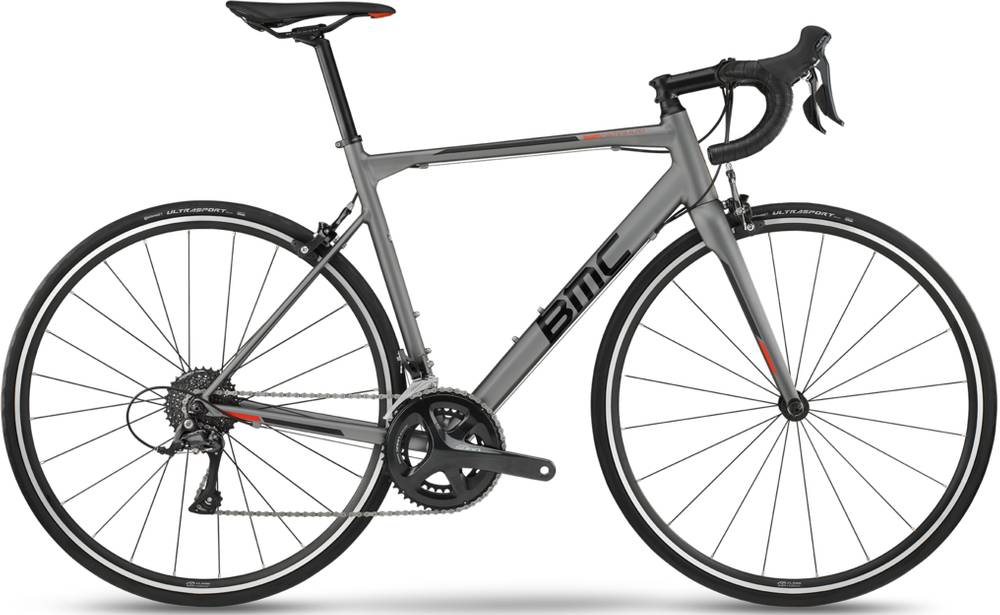

Teammachine ALR01 FOUR is a Bmc Teammachine model. 158 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
BMC Teammachine ALR01 FOUR 2018 is the most economical model, with a starting price of 999$. BMC Teammachine SLR01 DISC TEAM 2018 on the other hand costs 11999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When BMC released this model in 2018, its price was 999$. Doing a quick comparison, we notice that Teammachine ALR01 FOUR price is 235.34% lower than the average cost of a Race bike.
Overview of components
Fork material
Teammachine ALR01 FOUR has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Teammachine ALR01 FOUR are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Teammachine ALR01 FOUR has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
