Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Teammachine SLR 01 Premium Carbon, ICS Technology Stealth Cable Routing, Integrated Aerocore Bottle Cages, Stealth Dropout Design, TCC Race Compliance Level, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Suspension Fork
Teammachine SLR 01 Premium Carbon, ICS Technology Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, Flat Mount Disc, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
SHIMANO Ultegra Di2 RD-R8150 12spd
Shift Levers
SHIMANO Ultegra Di2 ST-R8170 12spd
Cassette
SHIMANO Ultegra CS-R8100 12spd 11-30T
Crank
SHIMANO Ultegra FC-R8100 12spd 52-36T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO Ultegra CN-M8100 12spd
Wheels
Front Hub
CRD-351
Rear Hub
CRD-351
Rims
CRD-351 Carbon - Tubeless Ready - 35mm
Tires
Vittoria Corsa - 25mm
Brakes
Brakes
SHIMANO Ultegra BR-R8170 | SHIMANO RT-MT800 Rotors 160 / 140mm
Cockpit
Stem
BMC ICS2 - Integrated Cockpit Design
Handlebar
BMC RAB 02 - Ergo Top Shape - Compact Bend
Seat
Saddle
Fizik Argo Vento R5 (140mm)
Seatpost
Teammachine SLR 01 Premium Carbon D-Shaped Seatpost, 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 568 mm | 586 mm | 589 mm | 599 mm | 614 mm | 630 mm |
| Rake | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 512 mm | 536 mm | 556 mm | 571 mm | 590 mm | 614 mm |
| Reach | 373 mm | 383 mm | 392 mm | 398 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 540 mm | 555 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 423 mm | 468 mm | 504 mm | 524 mm | 545 mm | 574 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 165 mm | 184 mm | 210 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 974 mm | 992 mm | 995 mm | 1006 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 723 mm | 758 mm | 785 mm | 803 mm | 823 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |

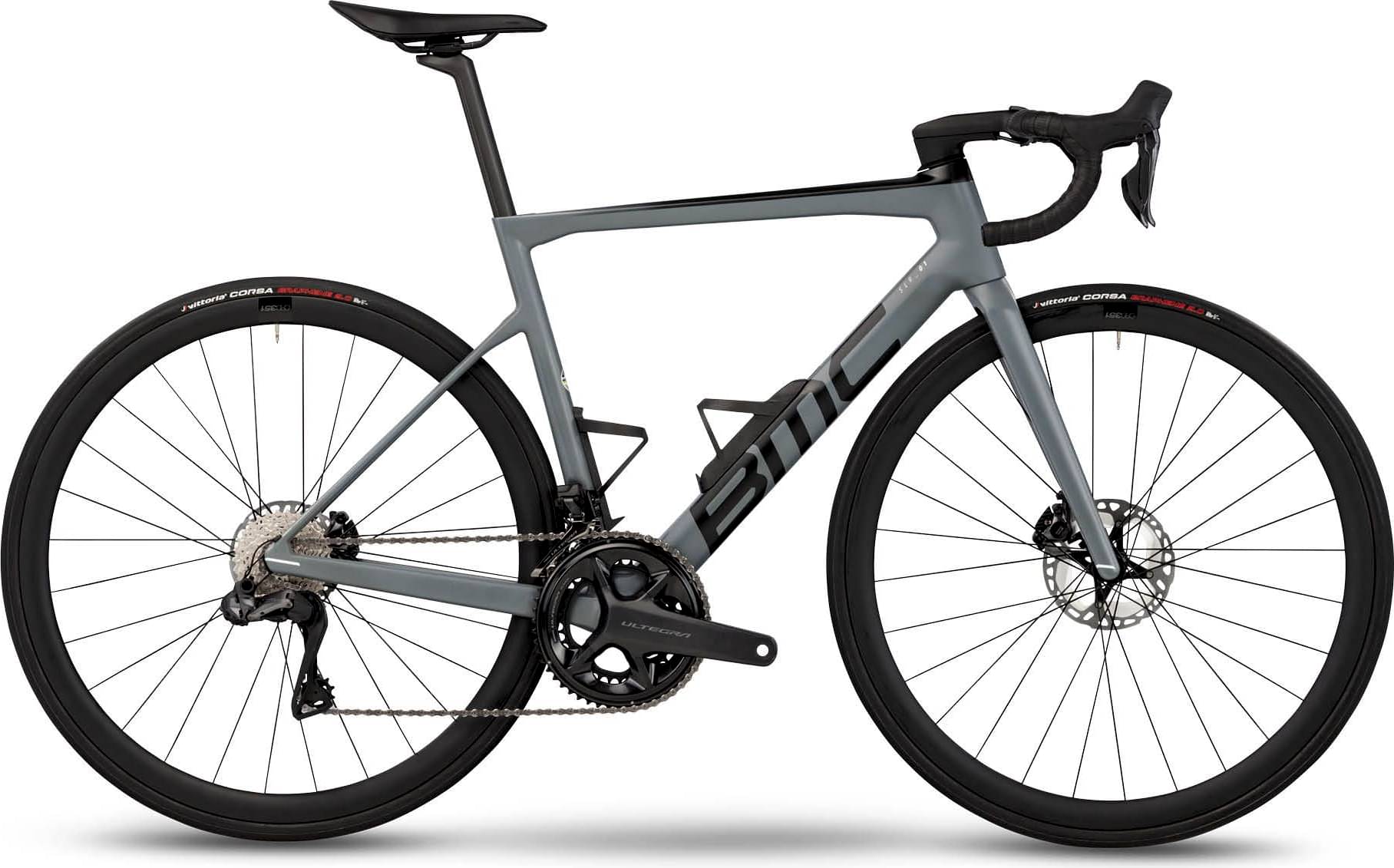

About this model
Teammachine SLR 01 FIVE completes the Bmc Teammachine model. BMC released 158 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BMC Teammachine ALR TWO 2023 is the most affordable bike of this model and has a price of 2899$. On the other hand, BMC Teammachine SLR 01 LTD 2023, is the most expensive and costs 16499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 7999$. Comparing the average cost of a Race bike to this one, you will see that Teammachine SLR 01 FIVE price is 138.78% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Teammachine SLR 01 FIVE components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Teammachine SLR 01 FIVE are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Teammachine SLR 01 FIVE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
