Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Teammachine SLR Carbon with Aerocore Design, Stealth Dropout Design, TCC Race Compliance Level, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle, Optimized for Aerocore Bottle Cages
Suspension Fork
Carbon Frame and Fork
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Brakes
Brakes
Front brake: flat mount, 160 mm rotors only, Rear brake: flat mount, 140/160 mm rotors
Cockpit
Handlebar
Integrated Cockpit System stem with internal cable routing and easy fit adjustment, Handlebar reach/drop: 70/125 mm (RAB02), ICS01 Stem Angle: -12.5, 200 g (stem)
Seat
Seatpost
Teammachine SLR Carbon D-Shaped Seatpost, 15mm Offset
Fit data

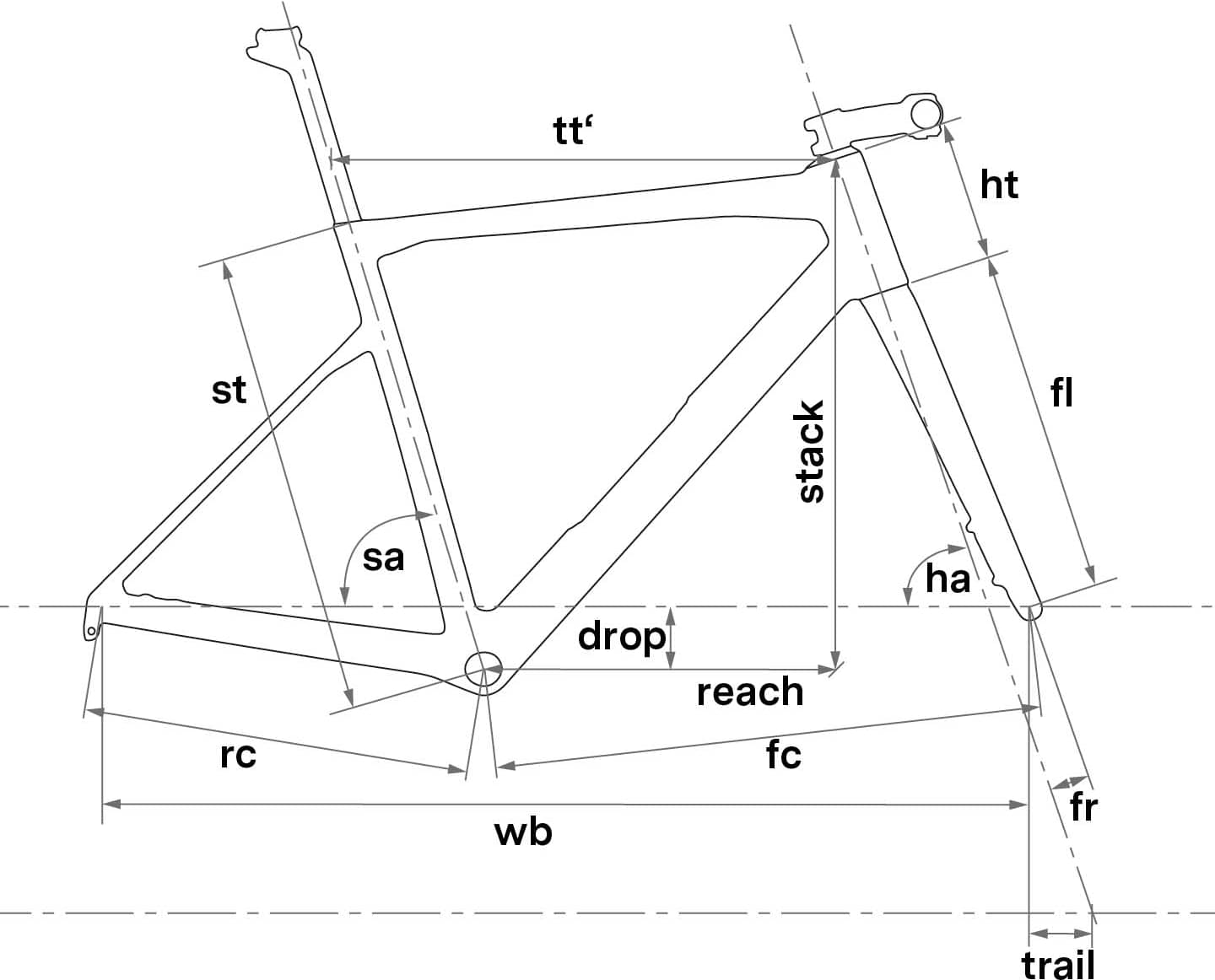

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 568 mm | 586 mm | 589 mm | 599 mm | 614 mm | 630 mm |
| Rake | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 512 mm | 536 mm | 556 mm | 571 mm | 590 mm | 614 mm |
| Reach | 373 mm | 383 mm | 392 mm | 398 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 540 mm | 555 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 423 mm | 468 mm | 504 mm | 524 mm | 545 mm | 574 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 165 mm | 184 mm | 210 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 974 mm | 992 mm | 995 mm | 1006 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 723 mm | 758 mm | 785 mm | 803 mm | 823 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
About this model
Teammachine SLR FRS belongs to the Bmc Teammachine model. There are 158 frames that carry this model name. You can easily view all of the Bmc Teammachine frames models from 2023, here.
Model range prices
The most economical model, the BMC Teammachine SLR FRS 2023 has a starting price of 2299$. BMC Teammachine SLR 01 MOD 2023 on the other hand is the most expensive at 5599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race frames average price
Our math shows that the average cost of a dependable Race frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2023 and its price was 2299$. Comparing the average cost of a Race frame to this one, you will see that Teammachine SLR FRS price is 6.35% smaller.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
When you want to stop the bike in time, the brakes are vital. The Teammachine SLR FRS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
