Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Teammachine SLR Carbon with Aerocore Design, Stealth Dropout Design, TCC Race Compliance Level, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle, Optimized for Aerocore Bottle Cages
Suspension Fork
Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000
Shift Levers
SHIMANO 105 ST-R7020
Cassette
SHIMANO 105 CS-R7000 11-32T
Crank
SHIMANO FC-RS510 50-34T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO 105 CN-HG601-11
Wheels
Front Hub
CL-712 (F)/RXC-1425 (R) - Thru Axle
Rear Hub
CL-712 (F)/RXC-1425 (R) - Thru Axle
Rims
PRD23 - 23mm
Tires
Vittoria Zaffiro Pro - 25mm
Brakes
Brakes
SHIMANO 105 BR-R7070 | SHIMANO SM-RT54 160 / 160mm
Cockpit
Stem
BMC RSM01
Handlebar
BMC RAB 02 - Ergo Top Shape - Compact Bend
Seat
Saddle
VL-1489 BMC
Seatpost
Teammachine SLR Carbon D-Shaped Seatpost, 15mm Offset
Fit data

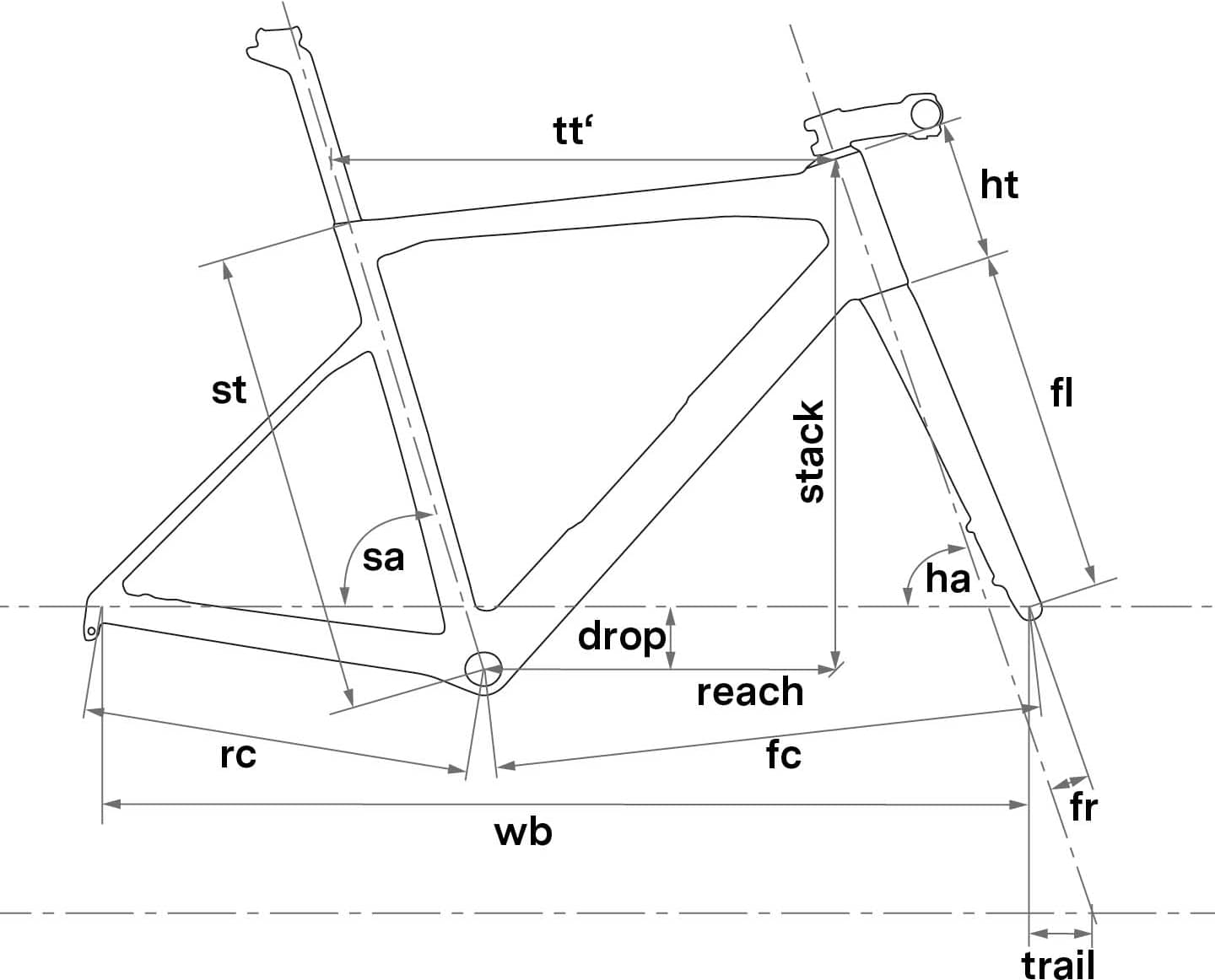

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 568 mm | 586 mm | 589 mm | 599 mm | 614 mm | 630 mm |
| Rake | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 512 mm | 536 mm | 556 mm | 571 mm | 590 mm | 614 mm |
| Reach | 373 mm | 383 mm | 392 mm | 398 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 540 mm | 555 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 423 mm | 468 mm | 504 mm | 524 mm | 545 mm | 574 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 165 mm | 184 mm | 210 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 974 mm | 992 mm | 995 mm | 1006 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 723 mm | 758 mm | 785 mm | 803 mm | 823 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
About this model
Teammachine SLR SEVEN is part of the Bmc Teammachine model. BMC released 158 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BMC Teammachine ALR TWO 2023 is the most economical model, with a starting price of 2899$. BMC Teammachine SLR 01 LTD 2023 on the other hand costs 16499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. Comparing this to the average Race bike price, we see that the price is 11.7% smaller.
Teammachine SLR SEVEN components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Teammachine SLR SEVEN bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
