Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Teammachine SLR Carbon with Aerocore Design • Stealth Dropout Design • TCC Race Compliance Level • PF86 Bottom Bracket • Integrated Seatpost Clamp • Flat Mount Disc • 12x142mm Thru-Axle • Optimized for Aerocore Bottle Cages
Suspension Fork
Teammachine SLR Carbon • TCC Race Compliance Level • Internal Cable Routing • Flat Mount Disc • Stealth Dropout Design • 12x100mm Thru-Axle • 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
Drivetrain
Rear Derailleur
SHIMANO Ultegra Di2
Front Derailleur
SHIMANO Ultegra Di2
Shift Levers
SHIMANO Ultegra Di2
Cassette
SHIMANO Ultegra 11-34T
Crank
SHIMANO Ultegra 52-36T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO Ultegra
Wheels
Front Hub
XRD-522
Rear Hub
XRD-522
Rims
XRD-522, Tubeless Ready, 25 mm
Tires
Vittoria Rubino, 25mm
Brakes
Brakes
SHIMANO Ultegra, RT-MT800 Rotors (160/140)
Cockpit
Stem
BMC RSM01
Handlebar
BMC RAB 02, Ergo Top Shape, Compact Bend
Seat
Saddle
Fizik Antares R7
Seatpost
Teammachine SLR Carbon D-Shaped Seatpost • 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 568 mm | 586 mm | 589 mm | 599 mm | 614 mm | 630 mm |
| Rake | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 512 mm | 536 mm | 556 mm | 571 mm | 590 mm | 614 mm |
| Reach | 373 mm | 383 mm | 392 mm | 398 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 540 mm | 555 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 423 mm | 468 mm | 504 mm | 524 mm | 545 mm | 574 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 165 mm | 184 mm | 210 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 974 mm | 992 mm | 995 mm | 1006 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
Model Overview

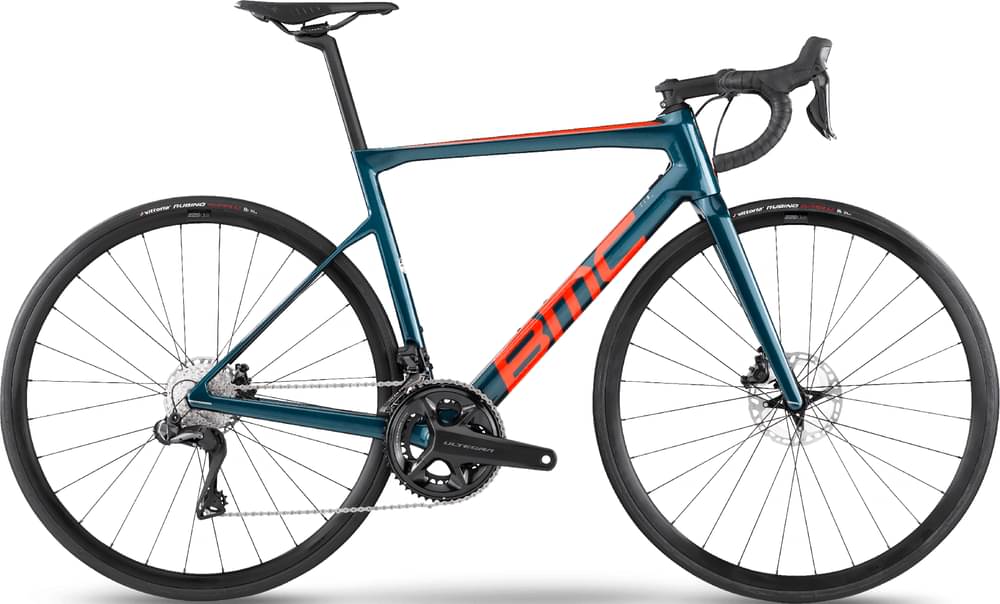

Teammachine SLR THREE is a Bmc Teammachine model. BMC released 158 bikes variations of this model so far. You can easily view all of the Bmc Teammachine bikes models from 2022, here.
Model range prices
BMC Teammachine ALR TWO 2022 is the most affordable bike of this model and has a price of 2299$. On the other hand, BMC Teammachine SLR01, TEAM P2P 2022, is the most expensive and costs 15641$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5299$. In conclusion, this bike price is 58.18% more expensive than the price of the average Race bike.
Overview of components
Fork material
Teammachine SLR THREE has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Teammachine SLR THREE bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Teammachine SLR THREE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
