Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
47cm
152cm - 168cm
51cm
166cm - 174cm
54cm
172cm - 180cm
56cm
177cm - 186cm
58cm
183cm - 192cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
01 Premium Carbon, ACE Technology, TCC Race
Suspension Fork
Teammachine SLR 01 Premium Carbon, TCC Race
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra, 11-30T
Crank
Shimano Ultegra, 52-36T
Chain
Shimano Ultegra
Wheels
Front Hub
Mavic Ksyrium UST
Rear Hub
Mavic Ksyrium UST
Rims
Mavic Ksyrium UST
Tires
Vittoria Corsa, 25mm
Brakes
Brakes
Shimano Ultegra, direct mount
Cockpit
Stem
BMC RSM01, w/ computer and camera mount
Handlebar
BMC RAB 02, ergo top shape, compact bend
Seat
Saddle
Fizik Antares R5 K:ium
Seatpost
Teammachine SLR01 "D" Premium Carbon, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 570 mm | 575 mm | 587 mm | 596 mm | 611 mm | 627 mm |
| Rake | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm | 41.6 mm |
| Trail | 76 mm | 66 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 512 mm | 536 mm | 556 mm | 571 mm | 590 mm | 614 mm |
| Reach | 373 mm | 383 mm | 392 mm | 398 mm | 407 mm | 415 mm |
| Top Tube Length | 523 mm | 541 mm | 556 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 423 mm | 468 mm | 513 mm | 534 mm | 554 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 113 mm | 133 mm | 153 mm | 168 mm | 188 mm | 213 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 976 mm | 981 mm | 992 mm | 1002 mm | 1018 mm | 1033 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 732 mm | 760 mm | 785 mm | 803 mm | 820 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 172 cm | 177 cm | 183 cm | 187 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 186 cm | 192 cm | 196 cm |
About this model

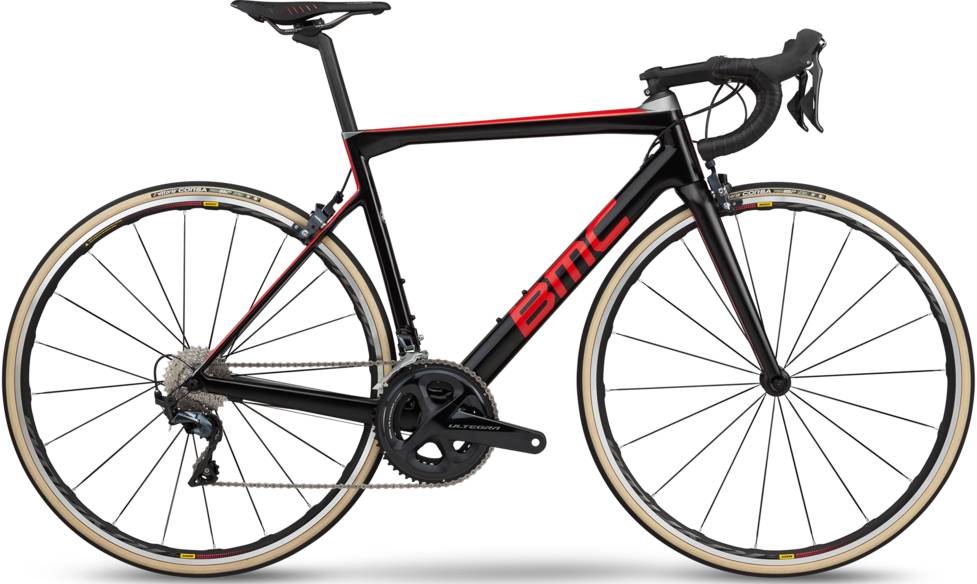

Teammachine SLR01 FOUR is part of the Bmc Teammachine model. BMC released 158 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
BMC TEAMMACHINE ALR TWO 2019 is the most economical model, with a starting price of 1399$. BMC Teammachine SLR01 DISC LTD 2019 on the other hand costs 12499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 4899$. In conclusion, this bike price is 46.24% more expensive than the price of the average Race bike.
Teammachine SLR01 FOUR components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Teammachine SLR01 FOUR 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
BMC Teammachine SLR01 FOUR bike has 6 sizes, in the range of 152 cm – 196 cm (4.99 ft – 6.43 ft). In short, you can easily find one that suits you.
