Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
MD-Short
172cm - 180cm
MD/LG
178cm - 188cm
LG
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Timemachine Carbon with Vmax Aero Design and P2P Positioning SyStem, P2P Dual-Mount Aeropost Configuration, Internal Di2 Battery Mount, PF86 Bottom Bracket, Rear Storage Box, Sliding Dropouts
Suspension Fork
Timemachine Carbon with Vmax Aero Design Hinge Design
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000
Shift Levers
SHIMANO Dura Ace SL-BSR1 Bar End
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 53-39T
Bottom Bracket
BB86/BB92, press-fit
Chain
SHIMANO CN-HG601-11
Wheels
Front Hub
SHIMANO WH-RS100
Rear Hub
SHIMANO WH-RS100
Rims
SHIMANO WH-RS100 - 24mm
Tires
Vittoria Zaffiro Pro - 25mm
Brakes
Brakes
SHIMANO 105 BR-R7010 Direct Mount
Cockpit
Stem
BMC RSM01
Handlebar
Profile WING 10a Basebar / Sonic Ergo 35A Aerobar
Seat
Saddle
Fizik Mistica Mg
Seatpost
Timemachine Carbon V-Max Aero Seatpost, 62mm Offset Adjustment, P2P Dual-Mount Aeropost Configuration (Triathlon & Time Trial)
Fit data

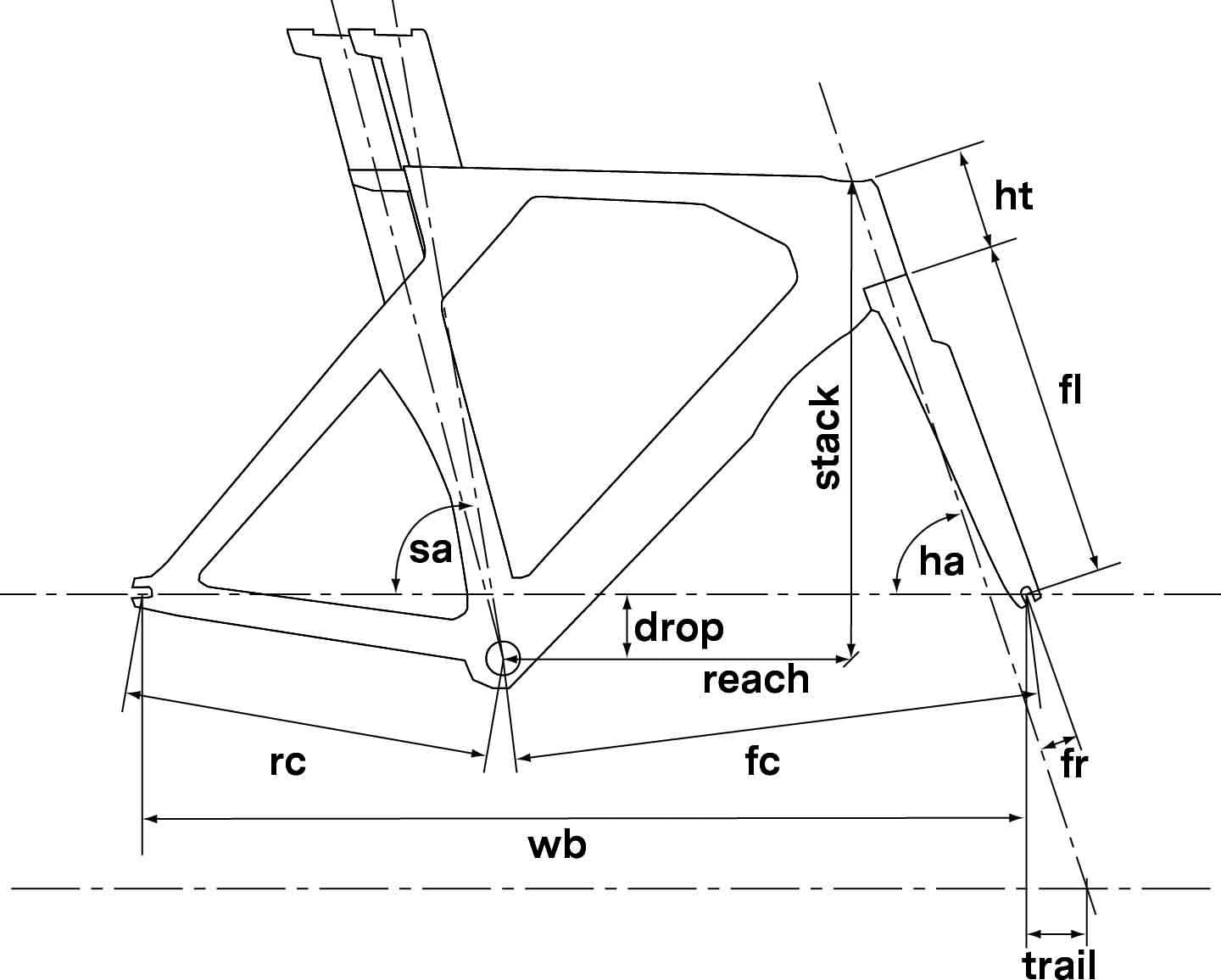

Geometry
Numbers for sizing and ride feel.
| Size | MD-Short | SM | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.22 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 268 mm | 278 mm | 268 mm | 268 mm |
| Front Center | 578 mm | 580 mm | 619 mm | 649 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm |
| Stack | 512 mm | 477 mm | 512 mm | 553 mm |
| Reach | 374 mm | 390 mm | 415 mm | 439 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 550 mm | 495 mm | 550 mm | 592 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 111 mm | 97 mm | 111 mm | 153 mm |
| Chainstay Length | 390 mm | 390 mm | 390 mm | 390 mm |
| Wheelbase | 964 mm | 961 mm | 1005 mm | 1035 mm |
| Bottom Bracket Drop | 68 mm | 58 mm | 68 mm | 68 mm |
| Standover Height | 794 mm | 752 mm | 794 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 172 cm | cm | 178 cm | 186 cm |
| Rider Max Height | 180 cm | 170 cm | 188 cm | 196 cm |
Model Overview
Timemachine is a Bmc Timemachine model. BMC launched 70 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the BMC Timemachine ONE 2023 has a starting price of 3299$. BMC Timemachine ROAD 01 ONE 2023 on the other hand is the most expensive at 13499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 3499$. Comparing the average cost of a Triathlon bike to this one, you will see that Timemachine price is 19.38% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Timemachine components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Timemachine 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. BMC Timemachine is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
