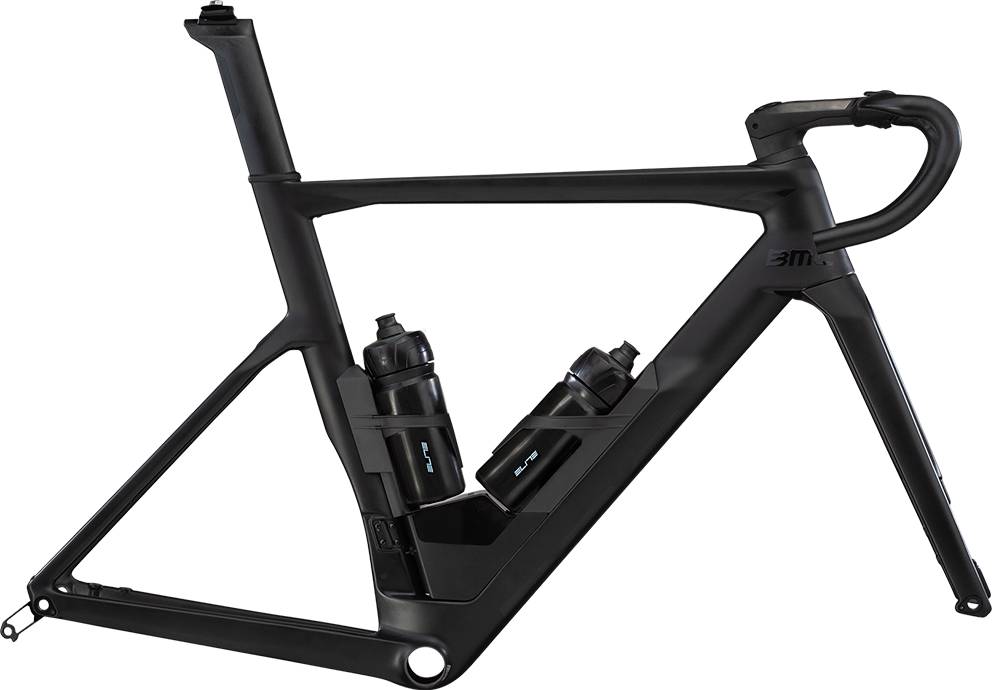

BMC Timemachine ROAD 01 MOD 2020
2020 Road
Estimate price |
4,499$
Weight | 2.7 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
51cm
165cm - 174cm
54cm
172cm - 180cm
56cm
178cm - 186cm
58cm
184cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Timemachine Road 01, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle
Suspension Fork
Timemachine Road 01 Aerodynamic Premium Carbon Disc, TCC Speed, Flat Mount w/ Caliper Cover, Integrated Cockpit, 12x100mm thru-axle
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Cockpit
Stem
BMC ICS Aero- Integrated Aero Cockpit Design, w/ computer mount
Handlebar
BMC ICS Aero, aero top shape, compact bend, including bartape
Seat
Seatpost
BMC Aero post, 01 premium carbon, p2p
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.37 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 592 mm | 594 mm | 604 mm | 620 mm | 636 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 491 mm | 515 mm | 535 mm | 550 mm | 569 mm | 593 mm |
| Reach | 368 mm | 376 mm | 385 mm | 390 mm | 400 mm | 408 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 518 mm | 548 mm | 568 mm | 588 mm | 611 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 88 mm | 113 mm | 135 mm | 150 mm | 170 mm | 196 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 986 mm | 989 mm | 999 mm | 1015 mm | 1031 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 192 cm | cm |
About this model
Timemachine ROAD 01 MOD is part of the Bmc Timemachine model. There are 70 frames that carry this model name. You can easily view all of the Bmc Timemachine frames models from 2020, here.
Model range prices
BMC Timemachine ROAD 01 MOD 2020 is the most economical model, with a starting price of 4499$. BMC Timemachine 01 FRS 2020 on the other hand costs 5499$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero frames
Our math shows that the average cost of a dependable Aero frame is 2657$. However, you could also get a good Aero frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4499$. In conclusion, this frame price is 69.33% higher than the price of the average Aero frame.
Average weight for Aero frames
Aero frames weigh an average of 1.79 kg (3.95 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
BMC Timemachine ROAD 01 MOD it’s weighing 2.7 kg (5.95 lbs). At this weight, is much heavier than average. In other words, this model is 50.84% heavier than the average Aero frame.
Timemachine ROAD 01 MOD components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
